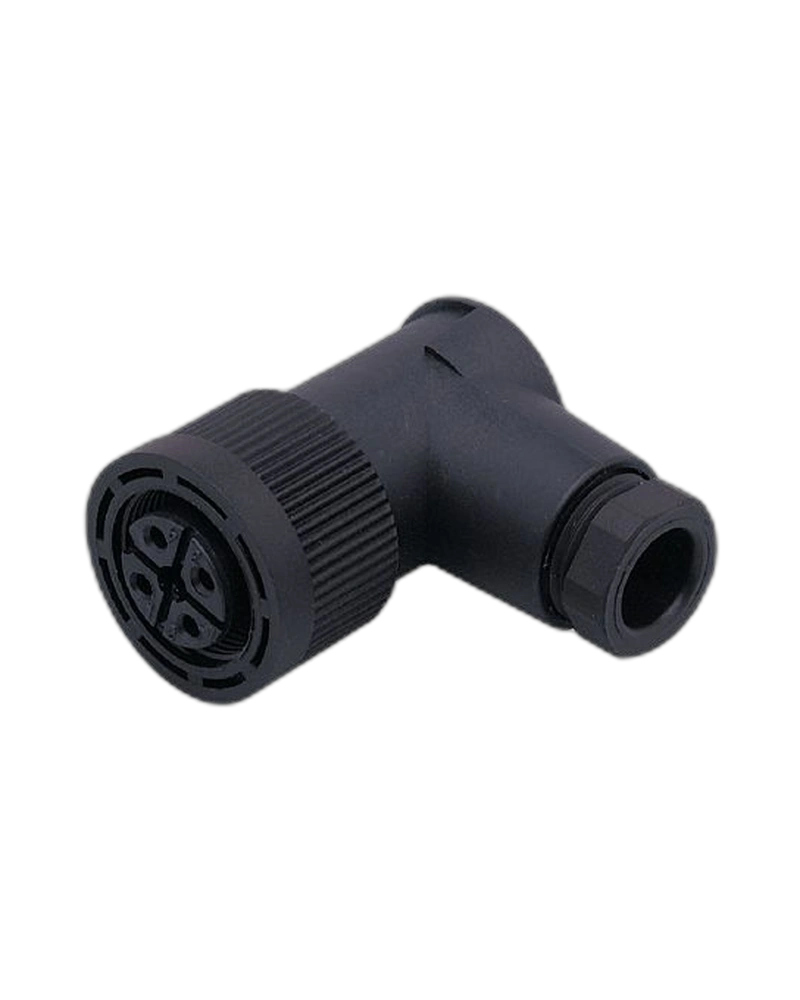

E1003A is an ATEX-approved angled wirable socket for M18 sensor connections. It is designed for connection to certified intrinsically safe circuits. The socket uses a PBT body and PA nut for industrial mechanical construction. Its IP65 protection and -20…80 °C ambient range support industrial installations. The connector accepts field wiring with conductors up to 0.75 mm² and 6…8 mm cable sheath diameter.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E1003A is designed for hazardous-area sensor connection systems. It carries BVS 05 ATEX E106 approval. The marking includes Ex ia IIC and Ex ia IIIB/IIIC classifications. The socket must be connected to suitable certified intrinsically safe circuits. This provides a dedicated connection solution for ATEX sensor systems.
The socket is designed for M18 sensor connectors. Its angled configuration assists cable routing around the sensor. The wireable construction supports field termination. The cable connection accepts up to 0.75 mm² conductors. This allows practical installation in industrial sensor systems.
E1003A operates from -20 to 80 °C. The socket provides IP65 protection. The body is made from PBT and the nut from PA. The specified weight is approximately 41.2 g. These characteristics provide a compact connection assembly for hazardous industrial environments.
M18 connector
Angled design
Wirable socket
ATEX approval
BVS 05 ATEX E106
PBT body
PA nut
0.75 mm² terminal capacity
6…8 mm cable sheath
IP65 protection
-20…80 °C ambient range
Ex ia IIC T6 Ga
Ex ia IIIB T85 °C Da
Ex ia IIIC T85 °C Da
Intrinsically safe circuit connection
41.2 g weight
One-piece pack
ATEX sensors
Hazardous-area automation
Oil and gas
Chemical processing
Petrochemical machinery
Explosion-risk installations
M18 sensors
Process automation
Intrinsically safe circuits
Industrial sensor wiring
E1003A provides a field-wireable M18 connection. The angled configuration helps route cables away from the sensor axis. The terminals accept conductors up to 0.75 mm². The cable sheath range is 6…8 mm. This supports practical field installation.
The socket uses PBT for the body and PA for the nut. It carries the specified ATEX approval. The protection markings cover gas and dust applications. IP65 protection supports the connector's environmental enclosure. This makes the accessory suitable for certified hazardous-area systems.
| Specification | E1003A |
|---|---|
| Product type | Wirable socket |
| Manufacturer | ifm electronic |
| Model | E1003A |
| Product code | SDOAJ040PLNFKPG/1D/1G |
| Connector type | M18 |
| Design | Angled |
| Connection | Wireable |
| Electrical design | Intrinsically safe circuit |
| Body material | PBT |
| Nut material | PA |
| Terminal capacity | ≤0.75 mm² |
| Cable sheath | 6…8 mm |
| Protection rating | IP65 |
| Ambient temperature | -20…80 °C |
| Approval | BVS 05 ATEX E106 |
| ATEX marking | II 1G Ex ia IIC T6 Ga |
| ATEX dust marking | II 1D Ex ia IIIB T85 °C Da |
| ATEX dust marking | II 1D Ex ia IIIC T85 °C Da |
| Weight | 41.2 g |
| Pack quantity | 1 |
| Sensor interface | M18 |
| Installation | Hazardous area |
| Circuit type | Certified intrinsically safe |
| Product family | Wirable sockets |
| Connection technology | Industrial |
| Wiring method | Field wiring |
| Connector orientation | Angled |
| Housing construction | PBT |
| Safety concept | Intrinsic safety |
| Application | Sensor connection |
