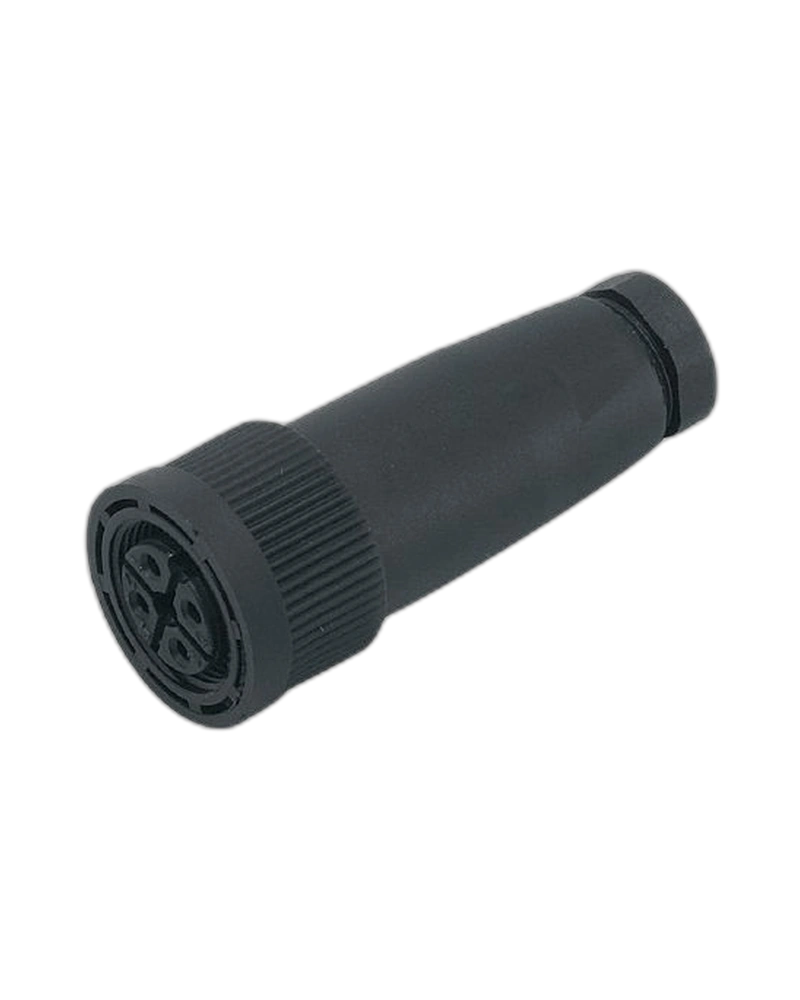

E1002A is an ATEX-approved wirable socket for M18 sensor connections. It uses a straight configuration and is designed for certified intrinsically safe circuits. The socket accepts field wiring up to 0.75 mm² with a 6…8 mm cable sheath. Its PA body and PA nut provide lightweight construction. IP65 protection supports the specified industrial operating environment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E1002A is designed for sensor connections in hazardous areas. Its ATEX approval is BVS 05 ATEX E106. The marking includes Ex ia classifications for gas and dust applications. The socket must be integrated into appropriately certified intrinsically safe circuits. This provides a dedicated connection solution for hazardous-area sensors.
The socket is designed for M18 sensor connectors. Its straight design supports direct axial cable routing. The connection uses field-wireable conductors up to 0.75 mm². Cable sheath diameters from 6 to 8 mm are supported. This makes the socket suitable for field-installed sensor wiring.
E1002A operates from -20…80 °C. The socket provides IP65 protection. The body and nut are manufactured from PA. The 35 g weight keeps the connection assembly lightweight. These characteristics support practical hazardous-area installations.
M18 connector
ATEX approval
Straight design
Wireable construction
PA body
PA nut
0.75 mm² terminal capacity
6…8 mm cable sheath
IP65 protection
-20…80 °C
BVS 05 ATEX E106
Ex ia IIC T6 Ga
Ex ia IIIB T85 °C Da
Ex ia IIIC T85 °C Da
Intrinsically safe circuit connection
35 g weight
One-piece pack
ATEX sensors
Hazardous-area automation
Oil and gas
Chemical plants
Petrochemical equipment
Explosion-risk machinery
Process automation
Intrinsically safe circuits
M18 sensors
Industrial sensor wiring
E1002A provides a field-wireable M18 connection. The terminal arrangement accepts the specified conductor size. Cable sheath diameter is controlled by the connector design. The straight body simplifies axial cable routing. This supports practical installation in hazardous-area sensor systems.
The socket is designed for connection to certified intrinsically safe circuits. Its ATEX marking defines the applicable protection concept. Correct installation must follow the associated hazardous-area requirements. The IP65 enclosure provides environmental protection for the connector. This creates a dedicated industrial connection solution.
| Specification | E1002A |
|---|---|
| Product type | Wirable socket |
| Manufacturer | ifm electronic |
| Model | E1002A |
| Product code | SDOGJ040PLNFKPG/1D/1G |
| Connector | M18 |
| Design | Straight |
| Connection type | Wireable |
| Electrical design | Intrinsically safe circuit connection |
| Body material | PA |
| Nut material | PA |
| Terminal capacity | ≤0.75 mm² |
| Cable sheath | 6…8 mm |
| Protection | IP65 |
| Ambient temperature | -20…80 °C |
| Approval | BVS 05 ATEX E106 |
| ATEX gas marking | II 1G Ex ia IIC T6 Ga |
| ATEX dust marking | II 1D Ex ia IIIB T85 °C Da |
| ATEX dust marking | II 1D Ex ia IIIC T85 °C Da |
| Weight | 35 g |
| Pack quantity | 1 |
| Sensor interface | M18 |
| Installation | Hazardous area |
| Circuit type | Certified intrinsically safe |
| Product family | Wirable sockets |
| Connection technology | Industrial |
| Wiring method | Field wiring |
| Cable entry | 6…8 mm |
| Housing construction | PA |
| Safety concept | Intrinsic safety |
| Application | Sensor connection |
