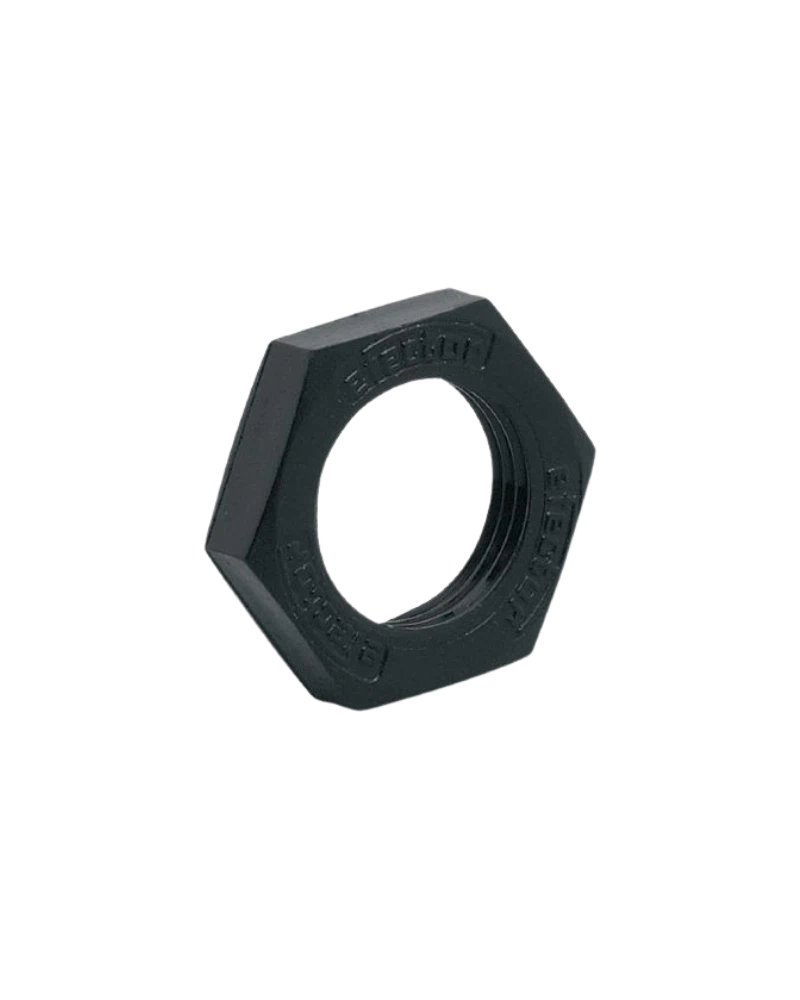

E10023 is a two-piece M12 × 1 hexagon-nut and washer set. The nut is manufactured from PBT for lightweight sensor mounting. Each set includes a rubber washer measuring 17 × 12 × 1 mm. The specified weight is 2.7 g. The combination provides both threaded fastening and sealing support for compatible M12 sensors.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E10023 is designed for sensors with M12 × 1 threaded sleeves. The hexagon nut provides mechanical retention. The rubber washer provides a defined sealing interface. Two pieces are included in the package. This provides a practical mounting solution for compatible sensors.
The nut uses PBT material. PBT keeps the accessory lightweight while providing a practical mechanical body. The specified component weight is 2.7 g. The M12 × 1 thread provides the exact sensor interface. This makes the accessory suitable for compact sensor assemblies.
The supplied rubber washers measure 17 × 12 × 1 mm. The washer sits around the threaded mounting interface. It provides additional contact and sealing support. The combined nut-and-washer arrangement simplifies sensor installation. This is useful in industrial sensor mounting applications.
M12 × 1 thread
PBT hexagon nut
Rubber washer
17 × 12 × 1 mm washer
Two-piece pack
2.7 g weight
Sensor mounting accessory
Threaded fastening
Sealing support
Compact design
M12 threaded sensors
Industrial automation
Sensor mounting
Machine building
Factory automation
Sensor replacement
Process machinery
Mechanical fixtures
Automation equipment
Machine retrofits
The M12 × 1 thread provides secure engagement with compatible sensor sleeves. The hexagon profile allows controlled tightening. The rubber washer provides a defined contact surface. Two sets are supplied for installation requirements. This creates a practical fastening arrangement.
The washer helps seat the sensor assembly against the mounting surface. Its 17 mm outside dimension provides the specified sealing interface. The 12 mm internal opening matches the M12 thread region. The 1 mm washer thickness provides a compact sealing layer. This supports stable sensor installation.
| Specification | E10023 |
|---|---|
| Product type | Hexagon nut + washer |
| Manufacturer | ifm electronic |
| Model | E10023 |
| Product description | NUT+WASHER M12X1 |
| Thread | M12 × 1 |
| Nut material | PBT |
| Nut type | Hexagon |
| Washer material | Rubber |
| Washer quantity | 2 |
| Washer dimensions | 17 × 12 × 1 mm |
| Pack quantity | 2 pieces |
| Weight | 2.7 g |
| Application | Sensor mounting |
| Sensor interface | M12 × 1 |
| Mechanical function | Fastening |
| Secondary function | Sealing |
| Accessory category | Mounting accessory |
| Component set | Nut + washer |
| Thread family | Metric |
| Thread diameter | 12 mm |
| Thread pitch | 1 mm |
| Washer outside diameter | 17 mm |
| Washer inside diameter | 12 mm |
| Washer thickness | 1 mm |
| Installation type | Threaded |
| Body material | PBT |
| Sealing component | Rubber |
| Machine integration | Yes |
| Sensor installation | Yes |
