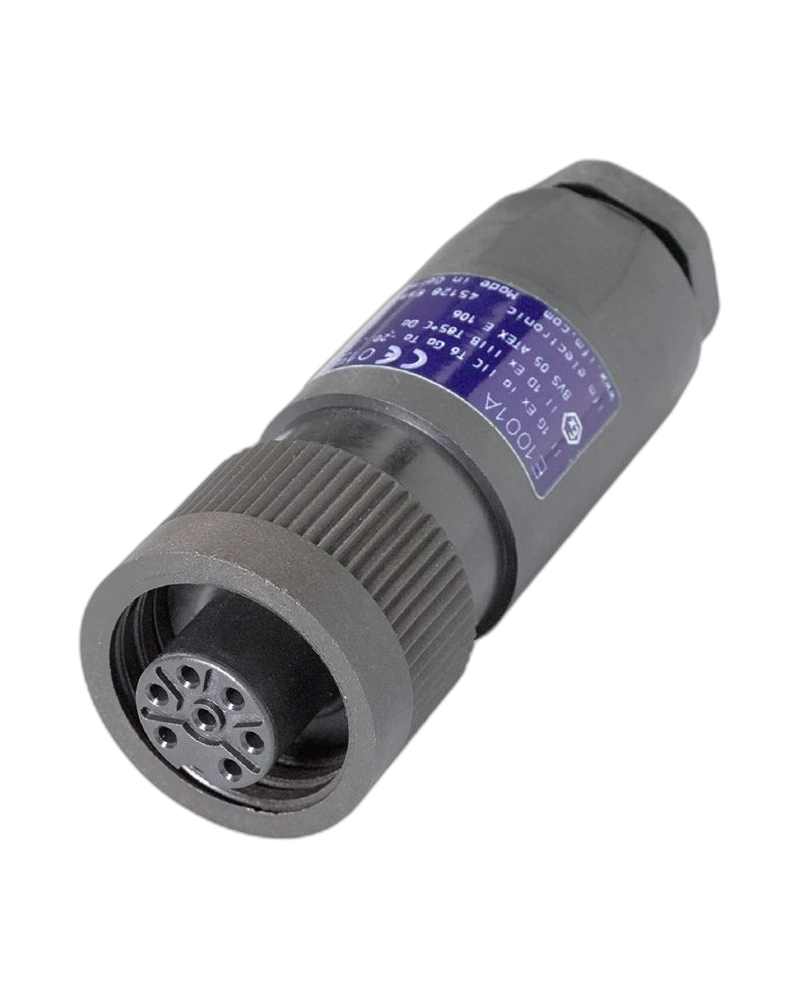

E1001A is an ATEX-approved wirable socket designed for hazardous-area sensor connections. It uses an Rd24 connector with gold-plated contacts and a straight configuration. The socket supports screw-terminal wiring with conductors up to 2.5 mm². Its PBT body provides robust industrial construction with IP67 protection. The connector is designed for connection to certified intrinsically safe circuits.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E1001A is designed for applications involving certified intrinsically safe circuits. It carries BVS 05 ATEX E106 approval. The ATEX marking includes Ex ia classifications for gas and dust applications. This allows use in specified hazardous industrial areas. Correct system-level certification and installation requirements must be maintained.
The socket uses an Rd24 straight connector with gold-plated contacts. Gold-plated contacts support reliable electrical connection. Screw terminals accept conductors up to 2.5 mm². Cable sheath diameters of 10…12 mm are supported. This provides a practical field-wiring arrangement.
E1001A operates from -20…80 °C ambient temperature. The socket provides IP67 protection. The body is manufactured from PBT and the nut from PA. The straight configuration simplifies cable routing where axial installation is preferred. Its 59 g weight provides a robust but manageable connection assembly.
ATEX-approved socket
Rd24 connector
Straight design
Gold-plated contacts
PBT body
PA nut
Wireable construction
2.5 mm² terminal capacity
10…12 mm cable sheath
IP67 protection
-20…80 °C ambient range
BVS 05 ATEX E106
Ex ia IIC T6 Ga
Ex ia IIIB T85 °C Da
Ex ia IIIC T85 °C Da
Intrinsically safe circuit connection
1-piece pack
Hazardous-area sensors
Oil and gas equipment
Chemical plants
Petrochemical machinery
Explosion-risk installations
Process automation
ATEX sensor systems
Intrinsically safe circuits
Industrial automation
Hazardous-area machine building
The socket is designed for connection to certified intrinsically safe circuits. Its wiring terminals provide a field-configurable connection. Gold-plated contacts support reliable electrical conductivity. The cable entry accommodates the specified sheath diameter. This allows the socket to be integrated into approved hazardous-area sensor systems.
PBT construction provides a robust insulating body. PA is used for the nut. IP67 protection helps protect against dust and water ingress. The -20…80 °C operating range supports a wide industrial environment. The straight connector configuration helps simplify installation.
| Specification | E1001A |
|---|---|
| Product type | Wirable socket |
| Manufacturer | ifm electronic |
| Model | E1001A |
| Product code | SDOGL070PLNFKPG/1D/1G |
| Connector type | Rd24 |
| Connector design | Straight |
| Connection type | Wireable |
| Contact finish | Gold-plated |
| Body material | PBT |
| Nut material | PA |
| Terminal capacity | ≤2.5 mm² |
| Cable sheath | 10…12 mm |
| Protection rating | IP67 |
| Ambient temperature | -20…80 °C |
| Approval | BVS 05 ATEX E106 |
| ATEX gas marking | II 1G Ex ia IIC T6 Ga |
| ATEX dust marking | II 1D Ex ia IIIB T85 °C Da |
| ATEX dust marking | II 1D Ex ia IIIC T85 °C Da |
| Circuit type | Certified intrinsically safe |
| Pack quantity | 1 |
| Weight | 59.1 g |
| Product family | Wirable sockets |
| Connection technology | Industrial |
| Sensor connection | Rd24 |
| Wiring method | Screw terminals |
| Contact material | Gold-plated |
| Housing construction | PBT |
| Installation | Hazardous area |
| Application | Sensor connection |
| Safety concept | Intrinsic safety |
