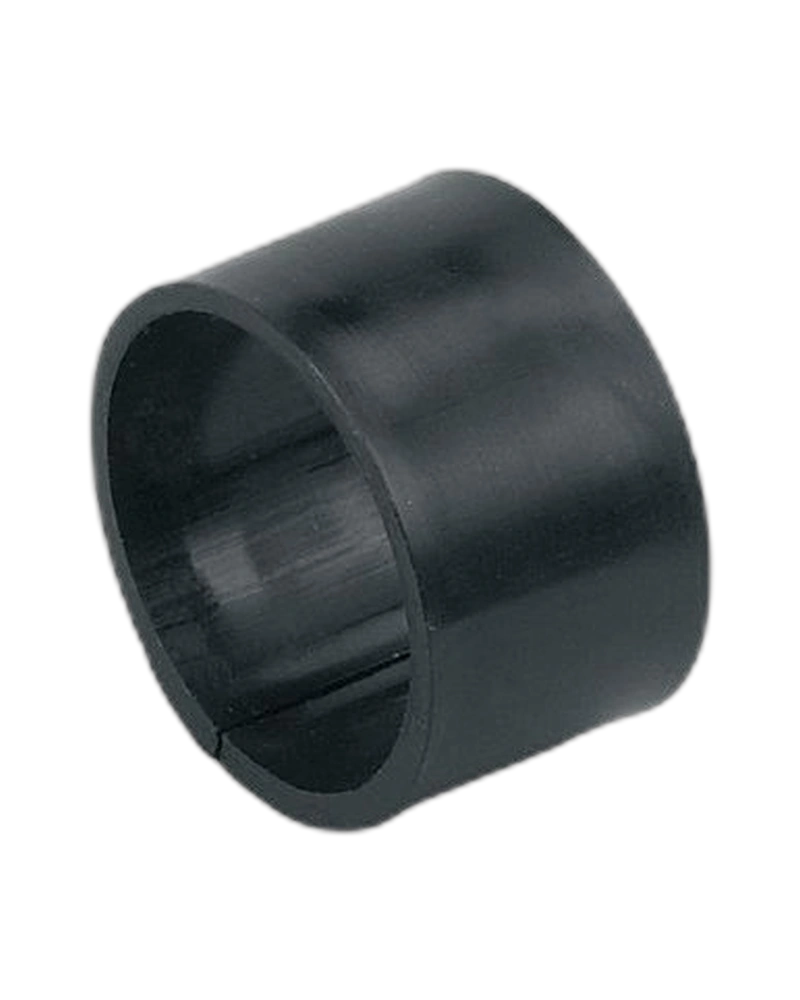

E10019 is a reducing bush designed for sensor mounting with a 30 mm internal diameter. It provides a 34 mm outside diameter and 20 mm length. The component is manufactured from PBT material and weighs 6.2 g. Its sleeve construction provides dimensional adaptation between compatible sensor and mounting arrangements. The product is supplied as one piece for mechanical installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E10019 provides a controlled transition between a 30 mm sensor diameter and a 34 mm mounting diameter. The 30 mm internal diameter defines the sensor interface. The 34 mm outside diameter defines the external mounting interface. The 20 mm length provides axial support. This allows compatible mounting clamps to accommodate the sensor.
The reducing bush uses PBT material. PBT provides a lightweight polymer construction for mechanical accessories. The component weighs only 6.2 g. Its compact dimensions minimise the additional mass added to the sensor assembly. This is useful in compact automation equipment.
E10019 can be installed between the sensor and a compatible mounting clamp. The sleeve design supports straightforward mechanical assembly. Its one-piece packaging simplifies replacement and stock management. The dimensional interface provides repeatable positioning. This makes the component useful for machine-building and sensor retrofits.
30 mm internal diameter
34 mm outside diameter
20 mm length
PBT construction
6.2 g weight
Reducing bush
Cylindrical sleeve
Sensor mounting accessory
Diameter adaptation
One-piece pack
30 mm cylindrical sensors
Mounting clamps
Industrial automation
Machine building
Sensor retrofits
Machine fixtures
Production machinery
Sensor replacement
Automation equipment
Mechanical adaptation
The bush provides a defined concentric interface for the sensor. Its internal diameter matches the specified sensor dimension. The outer diameter interfaces with the corresponding mounting arrangement. The 20 mm length provides stable axial engagement. This helps maintain sensor alignment.
A reducing bush can allow existing mounting hardware to accommodate a different sensor diameter. This reduces the need for new mechanical brackets. The lightweight PBT component is easy to install. Its simple geometry supports quick replacement. This can reduce mechanical modification during maintenance.
| Specification | E10019 |
|---|---|
| Product type | Reducing bush |
| Manufacturer | ifm electronic |
| Model | E10019 |
| Product description | Reducing bush M30 |
| Internal diameter | 30 mm |
| Outside diameter | 34 mm |
| Length | 20 mm |
| Material | PBT |
| Weight | 6.2 g |
| Pack quantity | 1 |
| Component design | Cylindrical sleeve |
| Mechanical function | Diameter reduction |
| Sensor interface | 30 mm |
| External interface | 34 mm |
| Accessory category | Mounting accessory |
| Mounting application | Sensor fixation |
| Sensor compatibility | 30 mm cylindrical |
| Clamp adaptation | Yes |
| Body material | Polymer |
| Body construction | Sleeve |
| Inner dimension | 30 mm |
| Outer dimension | 34 mm |
| Axial length | 20 mm |
| Weight class | Lightweight |
| Installation type | Mechanical |
| Retrofit support | Yes |
| Sensor alignment | Yes |
| Machine integration | Yes |
| Industrial use | Yes |
