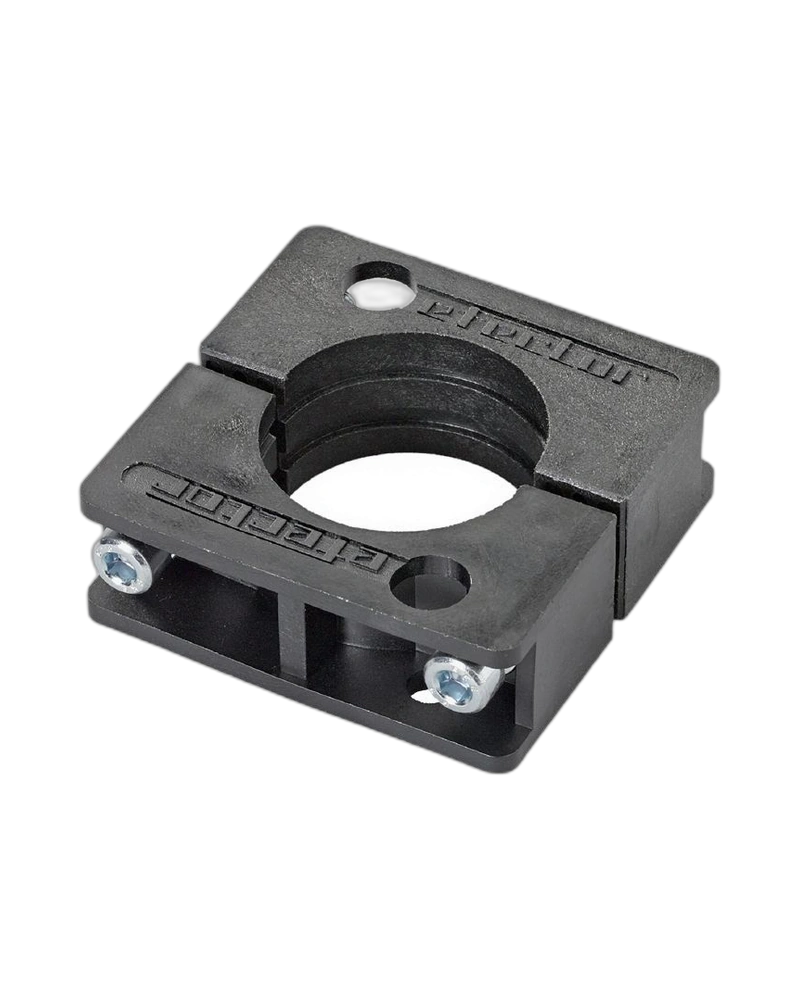

E10017 is a mounting clamp designed for cylindrical sensors with a 34 mm internal diameter. It measures 56 × 58 × 20 mm and weighs approximately 51.9 g. The clamp is manufactured from PBT material for industrial sensor installation. Two M5 × 50 mm socket-head screws and two spring washers are supplied. Its larger bore provides secure mounting for compatible large cylindrical sensors.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E10017 provides mechanical support for 34 mm cylindrical sensors. The large internal diameter accommodates the specified sensor body. The clamp maintains sensor alignment during machine operation. Two M5 × 50 mm screws provide secure mechanical fastening. This makes the clamp suitable for larger industrial sensor assemblies.
The PBT mounting body combines low weight with practical industrial durability. The overall dimensions are 56 × 58 × 20 mm. The clamp weighs approximately 51.9 g. Two spring washers are supplied with the mounting hardware. These components simplify the installation process.
E10017 can be integrated into machine fixtures and structural brackets. Its 34 mm internal diameter provides a dedicated sensor mounting interface. The supplied hardware reduces installation preparation. The clamp supports repeatable positioning of the installed sensor. This is useful for automation and machine-building applications.
34 mm internal diameter
PBT material
56 × 58 × 20 mm dimensions
51.9 g weight
Two M5 × 50 mm socket-head screws
Two spring washers
Cylindrical sensor mounting
Mechanical fixation
Large sensor compatibility
One-piece pack
Large cylindrical sensors
Machine building
Industrial automation
Sensor mounting
Production machinery
Automation fixtures
Machine retrofits
Sensor replacement
Industrial equipment
Sensor positioning systems
The clamp surrounds the sensor and holds it in a defined position. The 34 mm bore provides the required mechanical fit. M5 screws provide the fastening force. Spring washers support stable fastening. This arrangement is suitable for industrial machine installations.
The clamp allows sensors to be installed or replaced without redesigning the complete fixture. The supplied screws and washers simplify service work. Its robust PBT body supports repeated industrial use. The larger bore makes it suitable for larger sensor housings. This improves flexibility during machine maintenance.
| Specification | E10017 |
|---|---|
| Product type | Mounting clamp |
| Manufacturer | ifm electronic |
| Model | E10017 |
| Product description | Mounting clamp D34 mm |
| Internal diameter | 34 mm |
| Material | PBT |
| Dimensions | 56 × 58 × 20 mm |
| Weight | 51.9 g |
| Screws supplied | 2 |
| Screw size | M5 × 50 mm |
| Screw type | Socket-head |
| Washers supplied | 2 |
| Washer type | Spring washer |
| Pack quantity | 1 |
| Sensor type | Cylindrical |
| Mounting method | Clamp |
| Mechanical function | Sensor retention |
| Accessory category | Mounting clamp |
| Body construction | Polymer |
| Sensor bore | 34 mm |
| Overall dimension 1 | 56 mm |
| Overall dimension 2 | 58 mm |
| Overall dimension 3 | 20 mm |
| Hardware included | Yes |
| Hardware quantity | 2 screws |
| Hardware thread | M5 |
| Hardware length | 50 mm |
| Washer quantity | 2 |
| Installation type | Mechanical |
| Industrial use | Yes |
