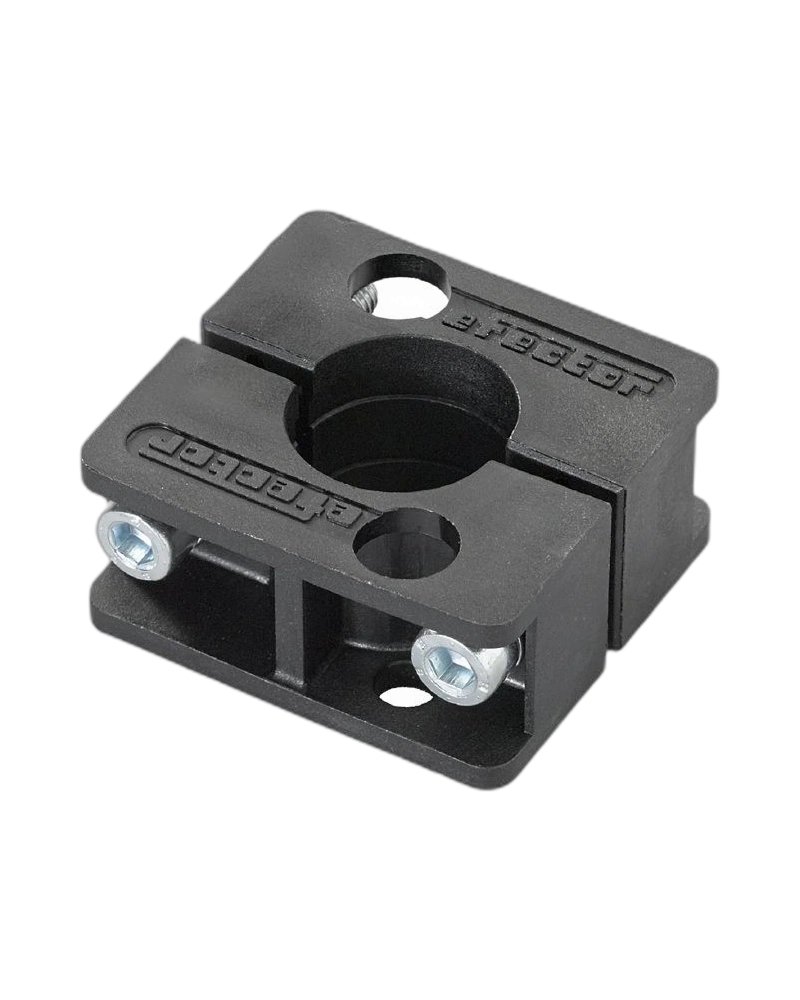

E10016 is a mounting clamp for cylindrical sensors with a 20 mm internal diameter. The clamp measures 40 × 44 × 20 mm and weighs 32 g. Its PBT body provides a lightweight mechanical mounting solution. Two M5 × 35 mm socket-head screws and two spring washers are supplied. The clamp is designed for stable sensor mounting in industrial automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E10016 provides secure mechanical fixing for 20 mm diameter cylindrical sensors. The internal bore is sized specifically for the intended sensor body. The clamp keeps the sensor position stable during machine operation. Supplied screws and spring washers provide the required fastening hardware. This supports reliable installation on industrial machinery.
The PBT body combines low weight with practical mechanical strength. The overall dimensions are 40 × 44 × 20 mm. The 32 g weight is suitable for general industrial mounting. The clamp uses two M5 fixing screws. Spring washers provide additional fastening support.
The clamp is useful for machine fixtures requiring a dedicated sensor mounting point. Its 20 mm internal diameter provides a defined sensor interface. The supplied hardware reduces installation preparation. The compact design can be incorporated into existing machine structures. This makes it useful for sensor installation and replacement.
20 mm internal diameter
PBT construction
40 × 44 × 20 mm dimensions
32 g weight
Two M5 × 35 mm socket-head screws
Two spring washers
Cylindrical sensor compatibility
Mechanical sensor fixation
Compact mounting design
One-piece pack
Cylindrical sensors
Industrial automation
Machine building
Sensor mounting
Production machinery
Automation fixtures
Machine retrofits
Sensor replacement
Industrial equipment
Control-system machinery
The clamp surrounds the sensor body and maintains its position. The internal diameter provides the specified mechanical fit. M5 screws provide the primary fixing force. Spring washers help maintain fastening stability. This creates a practical mechanical mounting arrangement.
E10016 supports straightforward sensor installation and replacement. The clamp can be integrated into a permanent machine fixture. Standard socket-head screws make tightening accessible. The supplied spring washers simplify installation. This supports efficient maintenance of industrial sensors.
| Specification | E10016 |
|---|---|
| Product type | Mounting clamp |
| Manufacturer | ifm electronic |
| Model | E10016 |
| Product description | Mounting clamp D20 mm |
| Internal diameter | 20 mm |
| Material | PBT |
| Dimensions | 40 × 44 × 20 mm |
| Weight | 32 g |
| Screws supplied | 2 |
| Screw size | M5 × 35 mm |
| Screw type | Socket-head |
| Washers supplied | 2 |
| Washer type | Spring washer |
| Pack quantity | 1 |
| Sensor type | Cylindrical |
| Mounting method | Clamp |
| Mechanical function | Sensor retention |
| Accessory category | Mounting clamp |
| Body construction | Polymer |
| Sensor bore | 20 mm |
| Overall dimension 1 | 40 mm |
| Overall dimension 2 | 44 mm |
| Overall dimension 3 | 20 mm |
| Hardware included | Yes |
| Hardware quantity | 2 screws |
| Hardware thread | M5 |
| Hardware length | 35 mm |
| Washer quantity | 2 |
| Installation type | Mechanical |
| Industrial use | Yes |
