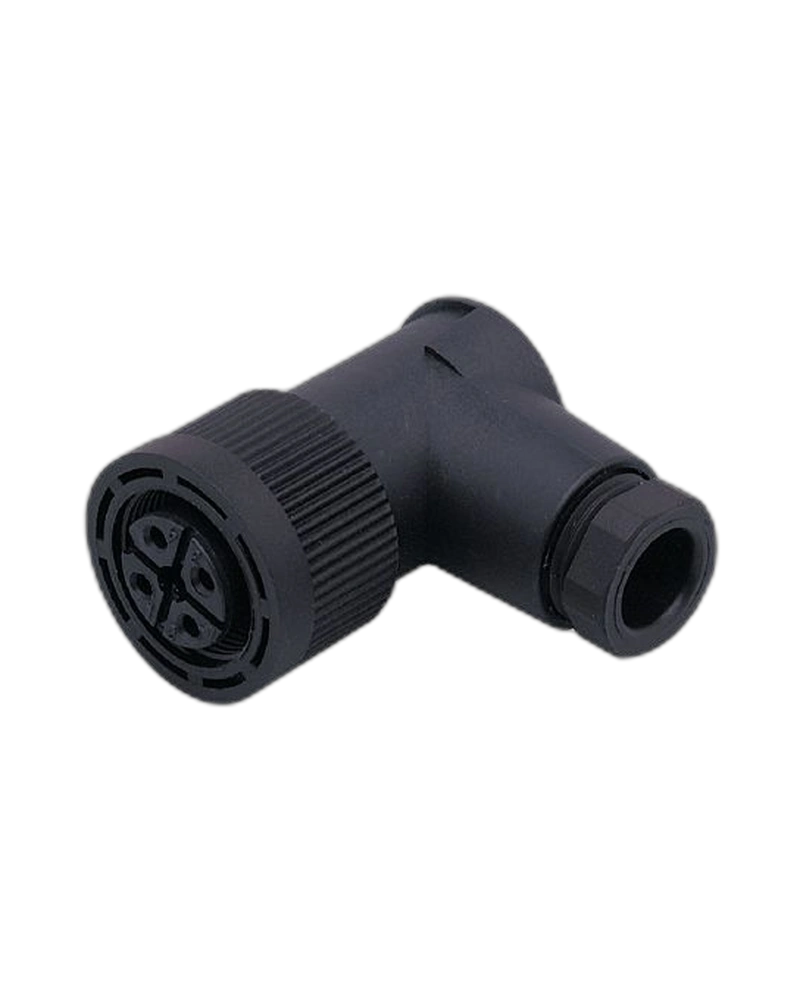

E10013 is a wirable M18 socket designed for industrial sensor connections. It features an angled M18 connector with four contacts and A coding. The socket supports field wiring through terminals accepting conductors up to 0.75 mm². Its PA construction provides a lightweight and practical connection solution. IP65 protection supports industrial factory-automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E10013 provides a field-wireable connection for compatible M18 sensors. The angled connector design helps manage cable routing around installed sensors. Four contacts provide the electrical connection interface. The PA moulded body provides mechanical insulation and lightweight construction. This makes the socket suitable for general industrial automation.
The socket accepts terminals for conductors up to 0.75 mm². Cable sheath diameters from 6 to 8 mm are supported. The connector uses A coding for standard M18 sensor connections. The locking system is made from PA material. These characteristics support practical field assembly.
E10013 provides IP65 protection for industrial installation. Its operating temperature range is -40…85 °C. The compact 43 × 25 × 36 mm housing supports installation in restricted spaces. The PA construction reduces unnecessary component weight. It is designed for factory-automation applications.
M18 connector
Wirable socket
Angled design
A-coded connection
4 contacts
PA moulded body
PA locking
PA nut
0.75 mm² terminal capacity
6…8 mm cable sheath
IP65 protection
-40…85 °C ambient range
43 × 25 × 36 mm dimensions
31.4 g weight
1-piece pack
M18 sensor wiring
Industrial automation
Factory automation
Sensor replacement
Field wiring
Machine building
Control panels
Sensor connection systems
Industrial equipment
Automation installations
The wirable design allows cable termination directly at the connector. This is useful when standard preassembled cables are not convenient. The terminal arrangement supports conductors up to 0.75 mm². The angled connector body helps reduce cable-routing space. This provides flexibility during machine installation.
The socket uses a compact moulded PA body. The M18 connection provides compatibility with corresponding sensor interfaces. A-coded contacts support correct connector orientation. The 31.4 g weight keeps the connection assembly lightweight. IP65 protection supports normal industrial installation environments.
| Specification | E10013 |
|---|---|
| Product type | Wirable socket |
| Manufacturer | ifm electronic |
| Model | E10013 |
| Product code | SDOAJ040PLSFKPG |
| Connector type | M18 |
| Connector design | Angled |
| Coding | A |
| Number of contacts | 4 |
| Connection type | Wireable |
| Terminal cross-section | ≤0.75 mm² |
| Cable sheath diameter | 6…8 mm |
| Moulded body | PA |
| Nut material | PA |
| Locking material | PA |
| Protection rating | IP65 |
| Ambient temperature | -40…85 °C |
| Dimensions | 43 × 25 × 36 mm |
| Weight | 31.4 g |
| Pack quantity | 1 |
| Application | Industrial automation |
| Application class | Factory automation |
| Sensor interface | M18 |
| Connector orientation | Angled |
| Contact arrangement | 4-contact |
| Cable termination | Screw/terminal wiring |
| Housing construction | Moulded |
| Product family | Wirable sockets |
| Connection technology | Industrial |
| Installation | Field wiring |
| Sensor accessory | Yes |
