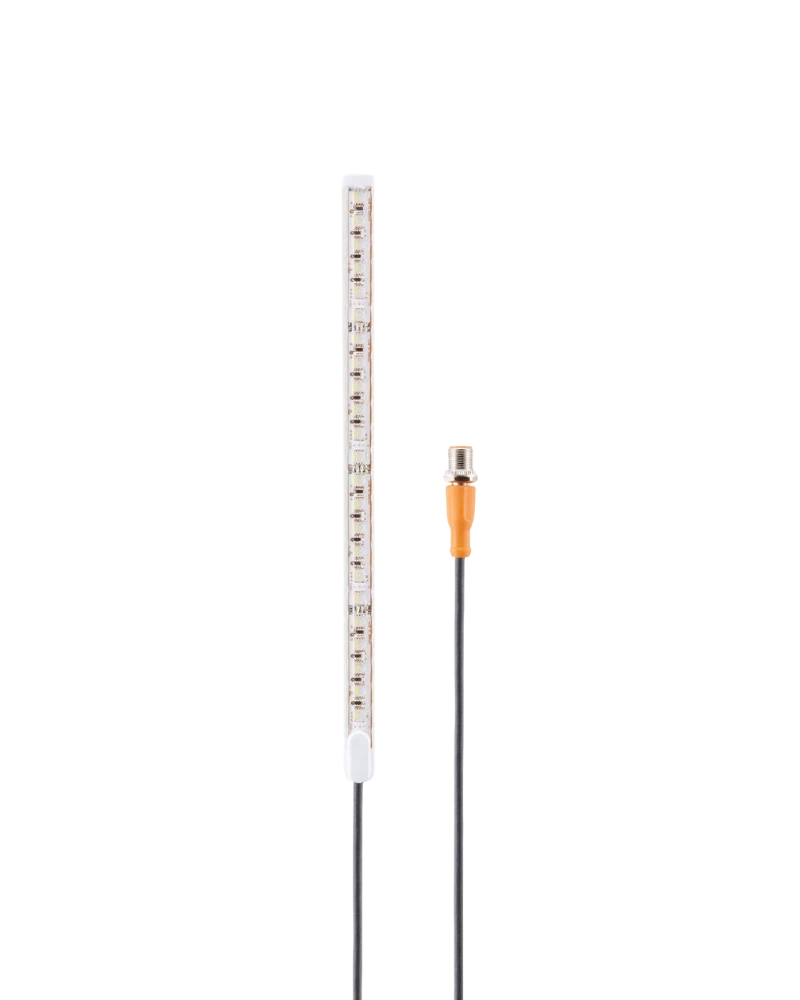

The IFM DV1102 is a 500 mm RGBW LED strip designed for clear visual signalling of machine conditions in industrial automation systems. It provides red, green, blue and white illumination, supports IO-Link operation with DP1615, and features a robust IP68-rated construction. Its compact design and bright multicolour indication make it suitable for reliable machine status and process signalling.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM DV1102 LED strip is a compact RGBW signalling solution designed to provide clear visual indication of machine and process conditions. With a 500 mm transparent strip and multicolour LED technology, it can display different operating states using red, green, blue and white illumination. The strip is designed for industrial environments and supports integration with IFM IO-Link systems.
The DV1102 provides flexible visual signalling for industrial machinery by combining multiple LED colours in one compact strip. Different colours can be assigned to machine states, alarms, warnings or operating conditions. Its transparent construction allows the emitted light to remain highly visible, helping operators quickly understand machine status from a distance.
The LED strip can be used on production machines, automated assembly equipment, conveyors, packaging systems and other industrial installations where visual status indication is required. It is particularly suitable for machine condition signalling and operator guidance. Its IP68 protection and industrial construction support dependable operation in demanding environments.
The DV1102 combines compact dimensions, RGBW illumination, industrial protection and IO-Link compatibility. Its 500 mm length provides a practical signalling area while the flexible colour indication supports intuitive machine status communication. Gold-plated contacts, halogen-free construction and robust sealing further contribute to reliable industrial use.
500 mm RGBW LED strip
Red, green, blue and white illumination
Transparent strip design
IO-Link capable with DP1615
24 V DC nominal operation
IP68 protection rating
Halogen-free construction
Gold-plated contacts
Compact 515 × 14.2 × 4.5 mm dimensions
Designed for machine condition signalling
Machine status indication
Production line signalling
Conveyor system indication
Packaging machinery
Assembly automation
Industrial operator guidance
Process status indication
Warning and condition signalling
Factory automation systems
Machine monitoring installations
| Specification | Details |
|---|---|
| Product | DV1102 |
| Product Type | RGBW LED strip |
| Length | 500 mm |
| Nominal Voltage | 24 V DC |
| Operating Voltage | 21.6...26.4 V DC |
| Colour | RGBW |
| Protection Rating | IP68 |
| Ambient Temperature | -20...45 °C |
| Dimensions | 515 × 14.2 × 4.5 mm |
| Weight | 75.4 g |
| Connection | M12, A-coded, 5-pin |
| Interface | IO-Link capable with DP1615 |
| Cable | 0.3 m PUR, halogen-free |
| Housing Material | TPU |
| Sealing | FKM |
