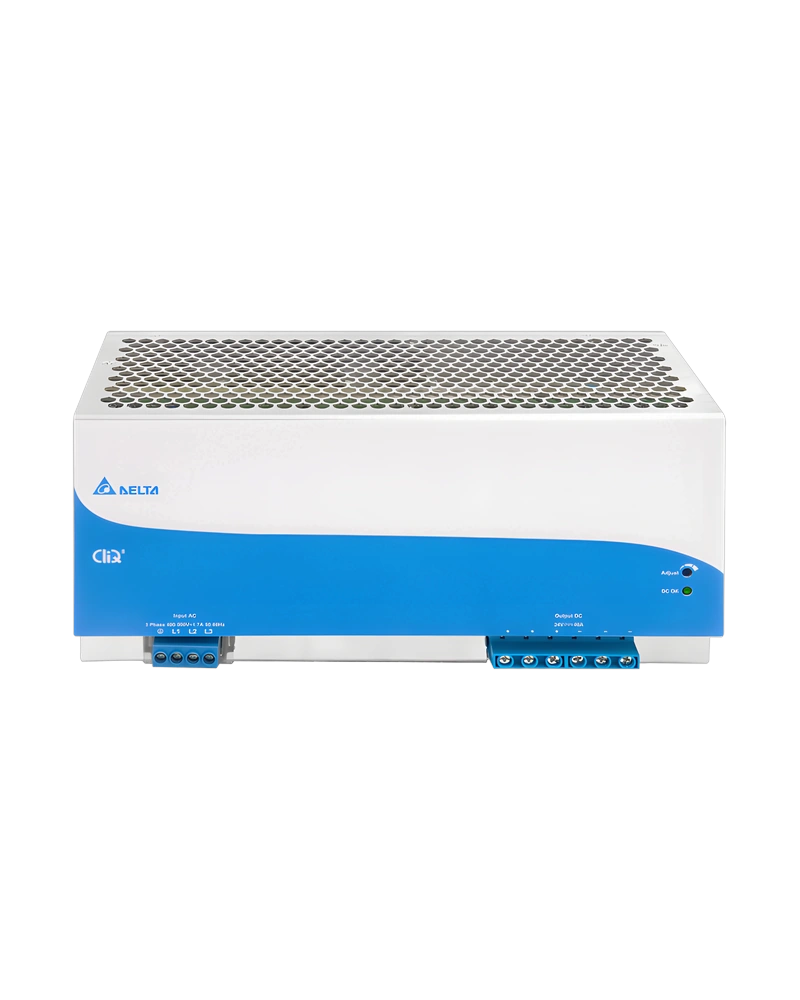

The DELTA DRP024V960W3BN is an industrial Power Supply intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Nominal Input Voltage: 3 x 400-500 Vac; Input Voltage Range1): 3 x 320-600 Vac (3-Phase) or 2 x 380-600 Vac (2-Phase); Input Frequency Range: 47-63 Hz.
The DRP024V960W3BN is a Power Supply intended for professional industrial applications.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
The DRP024V960W3BN can be considered for industrial systems and equipment requiring a Power Supply. Final suitability should be evaluated against the complete system requirements.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
The DELTADRP024V960W3BN is an industrial Power Supply. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Nominal Input Voltage | 3 x 400-500 Vac |
| Input Voltage Range1) | 3 x 320-600 Vac (3-Phase) or 2 x 380-600 Vac (2-Phase) |
| Input Frequency Range | 47-63 Hz |
| Nominal DC Input Voltage | 500 Vdc |
| Input Current | < 1.70 A @ 3 x 400 Vac, < 1.40A @ 3 x 500 Vac |
| Nominal Output Voltage | 24 Vdc |
| Output Voltage Adjustment Range | 24-28 Vdc |
| Output Current | 40.0 A (continuously operating at 24 V) 60.0 A (Power Boost for 5 seconds at 24 V, refer to the details in the Functions section) |
| Terminal | Input 4 Pins (Rated 600 V / 35 A) |
| Output | 6 Pins (Rated 300 V / 30 A) |
| Noise (1 Meter from power supply) | Sound Pressure Level (SPL) < 40 dBA |
| DRP024V960W3BN | 3 x 320-600 Vac (3-Phase) or 2 x 380-600 Vac (2-Phase) 24 Vdc 40.0 A |
| Nominal Input Frequency | 50-60 Hz |
| DC Input Voltage Range2) | 450-800 Vdc |
| Efficiency at 100% Load | > 92.0% @ 3 x 400 Vac & 3 x 500 Vac |
