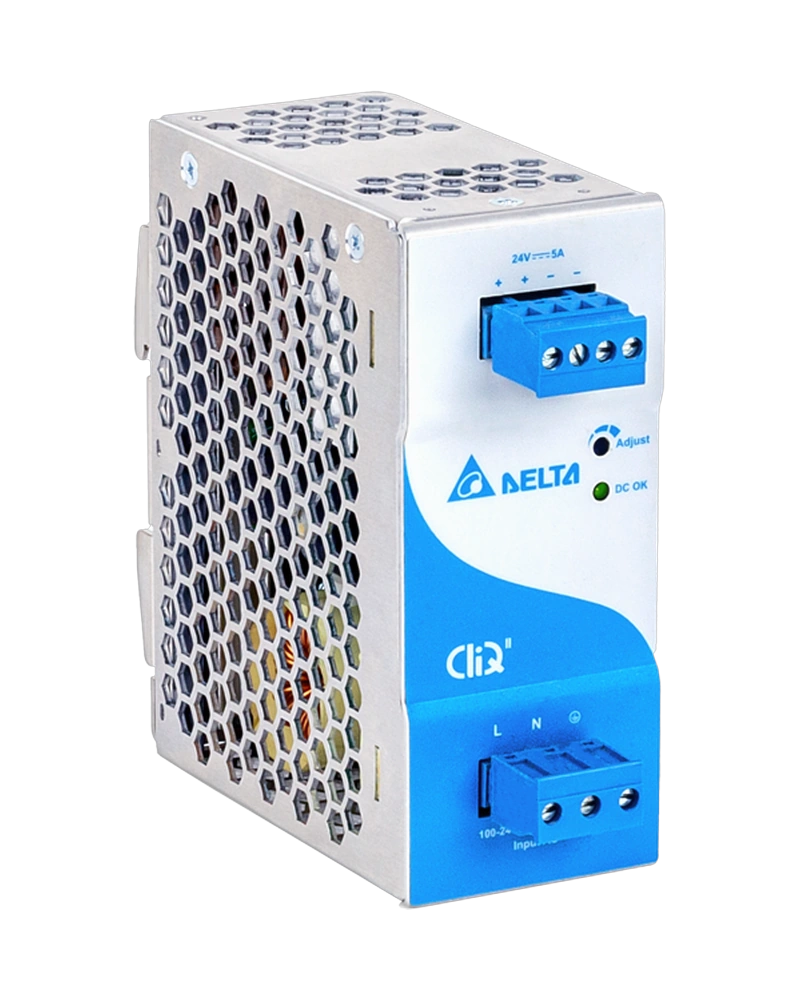

The DRP024V120W1BN from DELTA is an industrial Power Supply intended for professional equipment and system applications. The available product-specific technical information provides a practical basis for evaluation, selection and integration.
| Feature | Description |
|---|---|
| DRP024V120W1BN | Without Class I, Div 2 and ATEX |
| Material | und Teile |
| Nominal Input Voltage | 100-240 Vac |
| Input Voltage Range | 85-264 Vac |
| Input Frequency Range | 47-63 Hz |
| Input Current | < 2.20 A @ 115 Vac, < 1.10 A @ 230 Vac |
| Nominal Output Voltage | 24 Vdc |
| Output Voltage Adjustment Range | 24-28 Vdc |
The documented technical characteristics for this model include DRP024V120W1BN: Without Class I, Div 2 and ATEX; Material: und Teile; Nominal Input Voltage: 100-240 Vac; Input Voltage Range: 85-264 Vac; Input Frequency Range: 47-63 Hz; Input Current: < 2.20 A @ 115 Vac, < 1.10 A @ 230 Vac; Nominal Output Voltage: 24 Vdc; Output Voltage Adjustment Range: 24-28 Vdc. These values should be considered together with the process, equipment configuration and operating requirements of the intended application.
The available product information identifies DRP024V120W1BN: Without Class I, Div 2 and ATEX; Material: und Teile; Nominal Input Voltage: 100-240 Vac.
The DRP024V120W1BN can be evaluated for industrial systems and equipment requiring a Power Supply. Final application suitability depends on the process conditions, system configuration and the verified characteristics required for the installation.
When integrating the product, verify the applicable connections, mounting arrangement, operating conditions and compatibility requirements against the manufacturer's technical documentation.
For engineering and procurement decisions, compare the documented characteristics with the requirements of the intended application. Particular attention should be given to performance, connections, operating conditions, construction and other model-specific values.
The DELTADRP024V120W1BN is an industrial Power Supply for application-specific evaluation and selection. The verified technical information should be reviewed alongside the actual system requirements before purchase or installation.
| Feature | Specification |
|---|---|
| Nominal Input Voltage | 100-240 Vac |
| Input Voltage Range | 85-264 Vac |
| Input Frequency Range | 47-63 Hz |
| Input Current | < 2.20 A @ 115 Vac, < 1.10 A @ 230 Vac |
| Nominal Output Voltage | 24 Vdc |
| Output Voltage Adjustment Range | 24-28 Vdc |
| Output Current | 5.00 A (continuously operating at 24 V) 7.50 A (Power Boost for 5 seconds at 24 V, refer to the details in the Functions section) |
| Terminal | Input 3 Pins (Rated 300 V/15 A) |
| Output | 4 Pins (Rated 300 V/15 A) |
| Noise (1 Meter from power supply) | Sound Pressure Level (SPL) < 40dBA |
| DRP024V120W1B | 85-264Vac (120-375Vdc) 24 Vdc 5.00 A |
| Nominal Input Frequency | 50-60 Hz |
| DC Input Voltage Range* | 120-375 Vdc |
