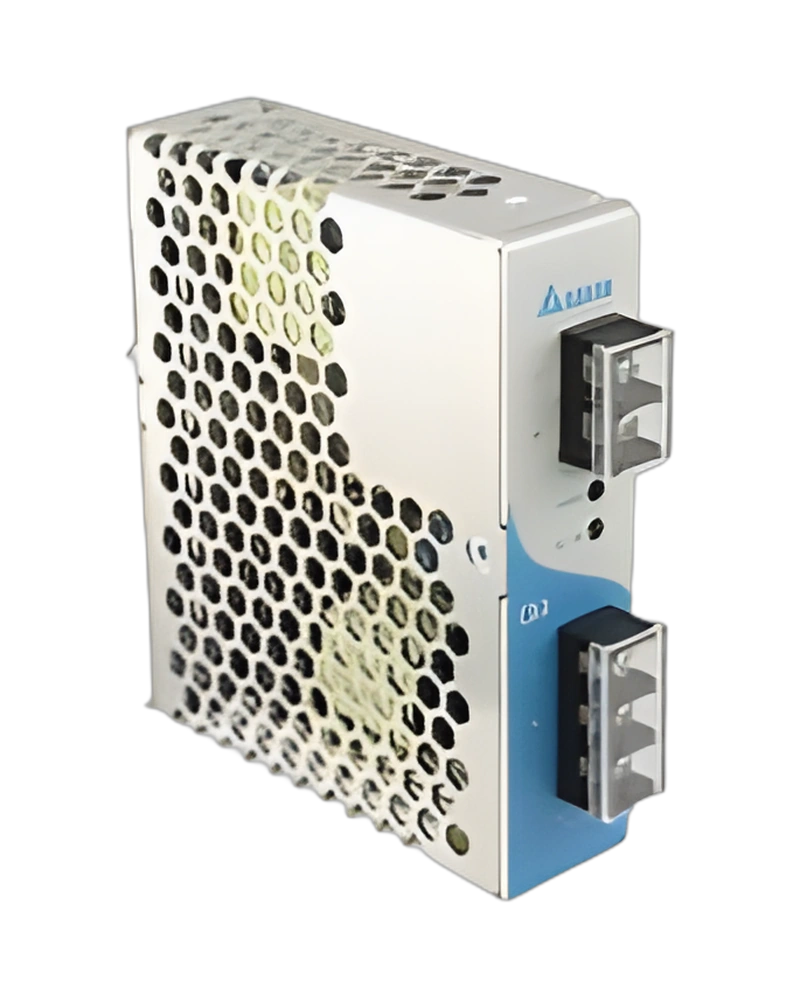

The DELTA DRP024V060W1AA is an industrial Power Supply intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Nominal Input Voltage: 100-240 Vac; Input Voltage Range: 85-264 Vac; Input Frequency Range: 47-63 Hz.
The DRP024V060W1AA is a Power Supply intended for professional industrial applications.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
The DRP024V060W1AA can be considered for industrial systems and equipment requiring a Power Supply. Final suitability should be evaluated against the complete system requirements.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
The DELTADRP024V060W1AA is an industrial Power Supply. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Nominal Input Voltage | 100-240 Vac |
| Input Voltage Range | 85-264 Vac |
| Input Frequency Range | 47-63 Hz |
| Input Current | < 1.10 A @ 115 Vac, < 0.70 A @ 230 Vac |
| Nominal Output Voltage | 24 Vdc |
| Output Voltage Adjustment Range | 22-28 Vdc |
| Output Current | 2.50 A (continuously operating at 24V) 3.75 A (Power Boost for 3 seconds at 24 V, refer to the details in the Functions section) |
| Terminal | Input 3 Pins (Rated 300 V/20 A) |
| Output | 2 Pins (Rated 300 V/20 A) |
| Noise (1 Meter from power supply) | Sound Pressure Level (SPL) < 40 dBA |
| DRP024V060W1AA | 85-264 Vac (120-375 Vdc) 24 Vdc 2.50 A |
| DR | P 024V 060W 1 A A |
| Nominal Input Frequency | 50-60 Hz |
| DC Input Voltage Range* | 120-375 Vdc |
| Efficiency at 100% Load | > 86.0% @ 115 Vac, > 87.0% @ 230 Vac |
