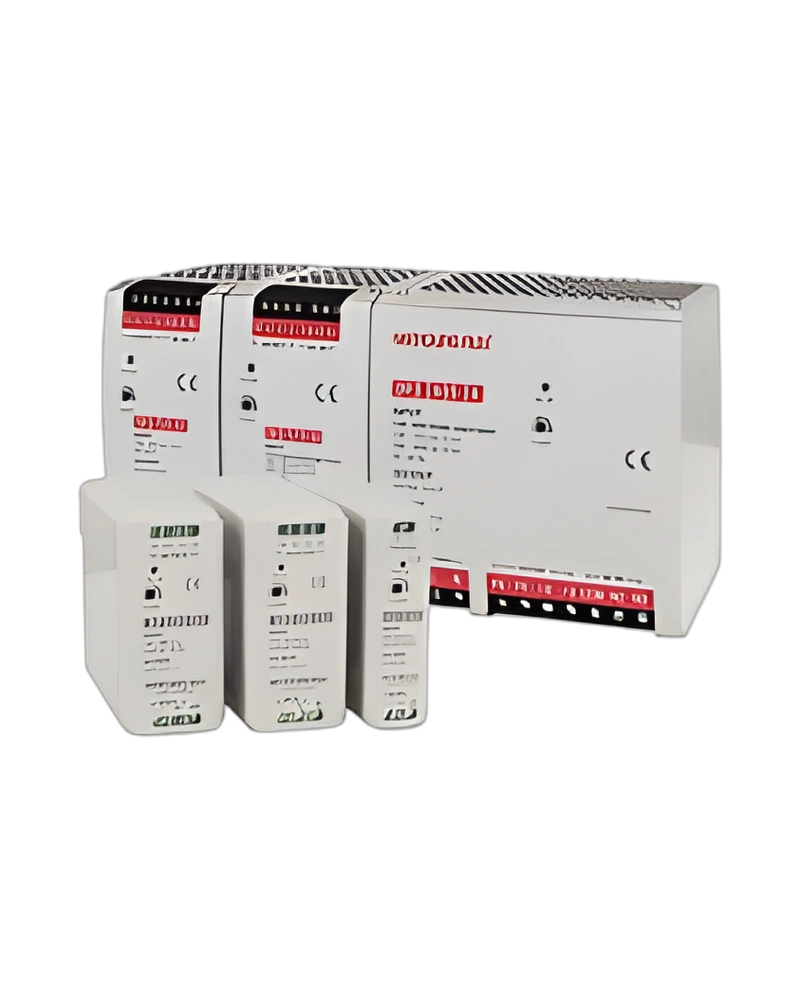

DPS is a Hanyoung NUX power supply for providing the electrical power required by the connected equipment. The configuration is defined by its input and output characteristics and available ratings, with model information of DPS- 15S | DPS- 30S | DPS- 50S | DPS- 75S. Input voltage: 110 - 240 V a.c. (Free power); Input voltage: 100 - 240 V a.c. 50/60 ㎐ (Free power) | 100 - 120 V a.c. 50/60 ㎐/ 200-240Va.c. 50/60 ㎐ (Automatic input selection); Power output: 15 W | 30 W | 50 W | 75 W; Output voltage: 5 V, 12 V, 15 V, 24 V d.c. | 12 V, 24 V, 48 V d.c..
Input conditions, output voltage/current, power rating, protection and environmental limits should be matched to the electrical requirements of the installation. Protective circuit: • Overcurrent, • Overvoltage, • overheat, • Output short-circuit protection, • DC OK display function; Dielectric strength: • 2,700 V a.c. 1 minute, detection current =10 ㎃, (input-output) • 1,500 V a.c. 1 minute, detection current = 10 ㎃, (input-FG) • 500 V a.c. 1 minute, detection current = 10 ㎃, (output-FG) • 500 V a.c. 1 minute, detection current = 10 ㎃, (output-DC OK); Insulation resistance: 50 ㏁ or more. (Input-Output, FG), (Output-FG, DC OK); Protective circuit: • Overcurrent, • Overvoltage, • Overheat, • Output short-circuit protection, • DC OK display, • DC OK output function.
Key strengths of the DPS come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Input voltage: 110 - 240 V a.c. (Free power); Output voltage: 5 V, 12 V, 15 V, 24 V d.c. | 12 V, 24 V, 48 V d.c.; Power output: 15 W | 30 W | 50 W | 75 W; Input voltage: 100 - 240 V a.c. 50/60 ㎐ (Free power) | 100 - 120 V a.c. 50/60 ㎐/ 200-240Va.c. 50/60 ㎐ (Automatic input selection); Power output: 100 W | 120 W | 180 W | 240 W (※ However, DPS-240S-12 is 216W).
The main technical characteristics of DPS are defined by its electrical ratings, operating inputs or outputs, performance values and control or indication functions. These specifications provide the working limits for the selected configuration. Power output: 100 W | 120 W | 180 W | 240 W (※ However, DPS-240S-12 is 216W); Output voltage: 12 V, 24 V, 48 V d.c. | 24 V, 48 V d.c. | 12 V, 24 V, 48 V d.c.; Insulation resistance: 50㏁ or more (input-output, FG), (output-FG, DC OK); Input voltage: 110 - 240 V a.c. (Free power).
Additional technical characteristics include Output voltage: 5 V, 12 V, 15 V, 24 V d.c. | 12 V, 24 V, 48 V d.c.; Power output: 15 W | 30 W | 50 W | 75 W; Input voltage: 100 - 240 V a.c. 50/60 ㎐ (Free power) | 100 - 120 V a.c. 50/60 ㎐/ 200-240Va.c. 50/60 ㎐ (Automatic input selection).
The physical design of DPS should be considered together with the installation environment and the available mounting or display arrangement. Input voltage: 110 - 240 V a.c. (Free power); Output voltage: 5 V, 12 V, 15 V, 24 V d.c. | 12 V, 24 V, 48 V d.c.; Power output: 15 W | 30 W | 50 W | 75 W; Input voltage: 100 - 240 V a.c. 50/60 ㎐ (Free power) | 100 - 120 V a.c. 50/60 ㎐/ 200-240Va.c. 50/60 ㎐ (Automatic input selection).
Further construction and environmental details include Power output: 100 W | 120 W | 180 W | 240 W (※ However, DPS-240S-12 is 216W); Output voltage: 12 V, 24 V, 48 V d.c. | 24 V, 48 V d.c. | 12 V, 24 V, 48 V d.c.; Protective circuit: • Overcurrent, • Overvoltage, • overheat, • Output short-circuit protection, • DC OK display function.
Integration of DPS begins with matching its connection, input or control signal and output requirements to the surrounding equipment. Input voltage: 110 - 240 V a.c. (Free power); Output voltage: 5 V, 12 V, 15 V, 24 V d.c. | 12 V, 24 V, 48 V d.c.; Power output: 15 W | 30 W | 50 W | 75 W; Input voltage: 100 - 240 V a.c. 50/60 ㎐ (Free power) | 100 - 120 V a.c. 50/60 ㎐/ 200-240Va.c. 50/60 ㎐ (Automatic input selection).
Additional operating and interface details include Power output: 100 W | 120 W | 180 W | 240 W (※ However, DPS-240S-12 is 216W); Output voltage: 12 V, 24 V, 48 V d.c. | 24 V, 48 V d.c. | 12 V, 24 V, 48 V d.c.; Protective circuit: • Overcurrent, • Overvoltage, • overheat, • Output short-circuit protection, • DC OK display function. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose DPS by confirming the exact model or configuration against the required operating conditions. The available model information is DPS- 15S | DPS- 30S | DPS- 50S | DPS- 75S. Model: DPS- 15S | DPS- 30S | DPS- 50S | DPS- 75S; Model: DPS- 100S | DPS- 120S | DPS- 180S | DPS- 240S; Input voltage: 110 - 240 V a.c. (Free power); Output voltage: 5 V, 12 V, 15 V, 24 V d.c. | 12 V, 24 V, 48 V d.c..
Before installation, confirm Power output: 15 W | 30 W | 50 W | 75 W; Input voltage: 100 - 240 V a.c. 50/60 ㎐ (Free power) | 100 - 120 V a.c. 50/60 ㎐/ 200-240Va.c. 50/60 ㎐ (Automatic input selection); Power output: 100 W | 120 W | 180 W | 240 W (※ However, DPS-240S-12 is 216W). Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Model | DPS- 15S | DPS- 30S | DPS- 50S | DPS- 75S |
| W×H×D (㎜) | 25.0x 90.0x 103.0 | 40.0x 90.0x 103.0 | 40.0x 90.0x 103.0 | 56.0x 124.0x 97.8 |
| Power output | 15 W | 30 W | 50 W | 75 W |
| Input voltage | 110 - 240 V a.c. (Free power) |
| Output voltage | 5 V, 12 V, 15 V, 24 V d.c. | 12 V, 24 V, 48 V d.c. |
| Voltage fluctu ation range | ±5 ~ 10 % (Varies due to the internal VR) |
| Protective circuit | • Overcurrent, • Overvoltage, • overheat, • Output short-circuit protection, • DC OK display function |
| Dielectric strength | • 2,700 V a.c. 1 minute, detection current =10 ㎃, (input-output) • 1,500 V a.c. 1 minute, detection current = 10 ㎃, (input-FG) • 500 V a.c. 1 minute, detection current = 10 ㎃, (output-FG) • 500 V a.c. 1 minute, detection current = 10 ㎃, (output-DC OK) |
| Insulation resistance | 50 ㏁ or more. (Input-Output, FG), (Output-FG, DC OK) |
| Model | DPS- 100S | DPS- 120S | DPS- 180S | DPS- 240S |
| W×H×D (㎜) | 56.0x 124.0x 97.8 | 66.0x 124.0x 97.8 | 66.0x 124.0x 97.8 | 125.5x 124.0x 97.8 |
| Power output | 100 W | 120 W | 180 W | 240 W (※ However, DPS-240S-12 is 216W) |
| Input voltage | 100 - 240 V a.c. 50/60 ㎐ (Free power) | 100 - 120 V a.c. 50/60 ㎐/ 200-240Va.c. 50/60 ㎐ (Automatic input selection) |
| Output voltage | 12 V, 24 V, 48 V d.c. | 24 V, 48 V d.c. | 12 V, 24 V, 48 V d.c. |
| Voltage fluctu ation range | ±5 ~ 10 % (Depends on internal VR) |
| Protective circuit | • Overcurrent, • Overvoltage, • Overheat, • Output short-circuit protection, • DC OK display, • DC OK output function |
| Insulation resistance | 50㏁ or more (input-output, FG), (output-FG, DC OK) |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Power Supply | DPS series Instruction manual |
| 1 | CAD > 2D | Power Supply | DPS (2D) |
| 2 | CAD > 3D | Power Supply | DPS (3D) |
| No | Mark | Category | Title | File |
| 1 | Certification > CE | Power Supply | DPS series (EMC) |
| 2 | Certification > CE | Power Supply | DPS series (LVD) |
| 3 | Certification > KC | Power Supply | DPS-100S |
| 4 | Certification > KC | Power Supply | DPS-120S |
| 5 | Certification > KC | Power Supply | DPS-15S |
| 6 | Certification > KC | Power Supply | DPS-180S |
| 7 | Certification > KC | Power Supply | DPS-240S |
| 8 | Certification > KC | Power Supply | DPS-30S |
| 9 | Certification > KC | Power Supply | DPS-50S |
| 10 | Certification > KC | Power Supply | DPS-75S |
