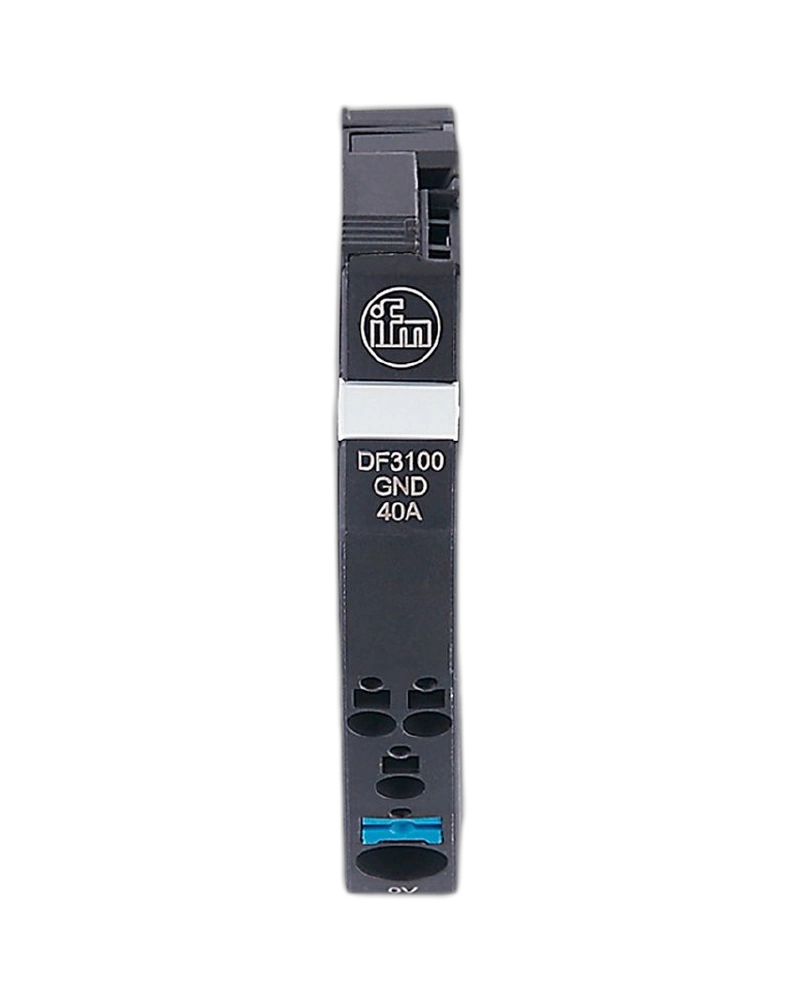

IFM DF3100 is a feeding module designed for distributing ground potential in industrial power systems. It provides a compact interface for connecting ground potential within modular electrical distribution architectures. The module supports a GND supply connection and is designed for installation on DIN rails. Its compact 80 × 12.5 × 98.5 mm housing allows efficient use of control cabinet space. The unit uses push-in terminals for practical electrical installation. DF3100 is suitable for structured grounding and potential distribution in industrial automation cabinets.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
DF3100 simplifies the distribution of ground potential within an automation panel. It provides a centralized point for connecting compatible ground distribution circuits. This can help keep control cabinet wiring organized. Modular distribution reduces unnecessary wiring complexity. The module can be used with compatible IFM DF-series power distribution components. It supports a clean and structured cabinet architecture.
The unit is designed for side-by-side modular installation. Its compact housing minimizes the space required for ground distribution. DIN-rail mounting provides a standardized installation method. Push-in terminals support quick wiring. Labelling provisions help identify connections. This makes DF3100 convenient for industrial panel construction and maintenance.
Stable ground distribution is important for reliable industrial automation operation. DF3100 provides a dedicated module for this purpose. The device supports structured grounding rather than scattered individual connections. Its industrial construction is intended for control cabinet environments. The modular architecture supports easy expansion. DF3100 is therefore useful in organized machine electrical systems.
Ground potential feeding module
GND distribution
Compact DIN-rail design
Push-in terminals
Modular installation
Space-saving construction
Easy side-by-side installation
Control cabinet integration
Labelling provision
Industrial power distribution
Structured grounding
Reliable potential distribution
Easy wiring
Maintenance-friendly design
IFM DF-series compatibility
Control cabinets
Industrial automation
Machine electrical panels
Ground potential distribution
PLC cabinets
Power distribution systems
Factory automation
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | DF3100 |
| Product Type | Feeding module |
| Function | Ground potential distribution |
| Design | GND module |
| Nominal Voltage | 24 V DC system |
| Operating Voltage | 18–30 V DC class |
| Maximum Load Current | Up to 40 A class |
| Protection Class | III |
| Connection Type | Push-in terminal |
| Ground Function | GND |
| Mounting | DIN rail |
| Housing | Modular |
| Dimensions | 80 × 12.5 × 98.5 mm |
| Width | 12.5 mm |
| Installation | Control cabinet |
| Side-by-Side Mounting | Yes |
| Labelling | Yes |
| Application | Potential distribution |
| Electrical Design | Passive distribution |
| Communication | None |
| Status Display | None / refer to datasheet |
| Operating Temperature | Refer to datasheet |
| Protection Rating | Refer to datasheet |
| Approvals | CE / cRUus class |
| Pack Quantity | 1 piece |
