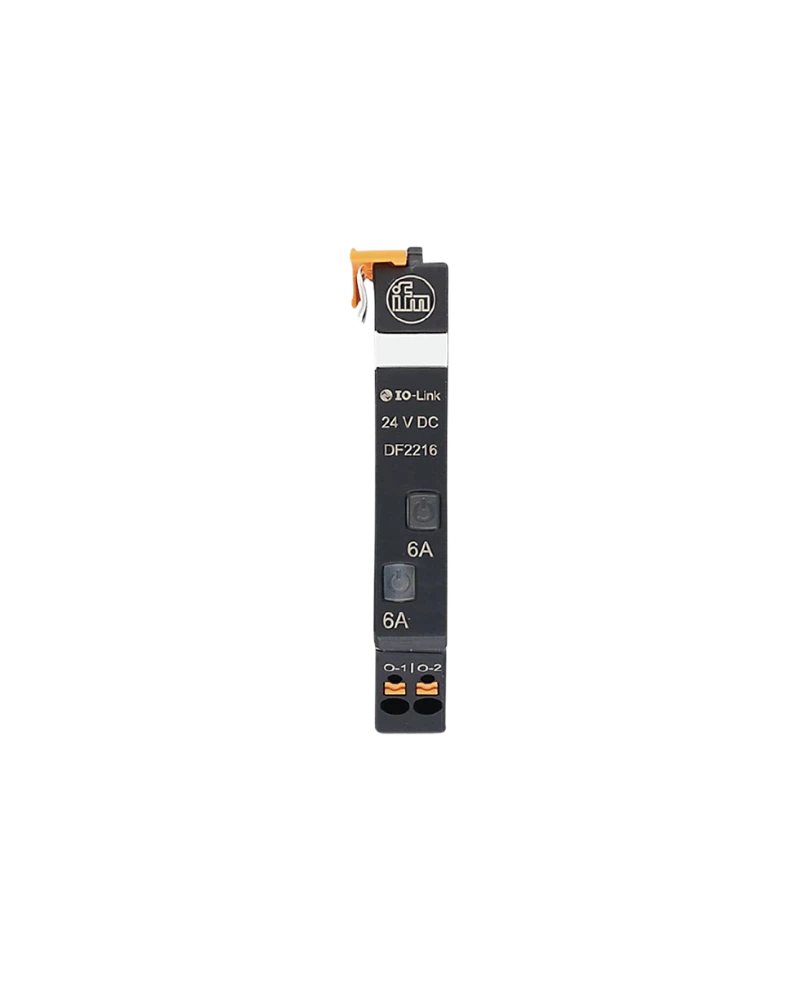

IFM DF2216 is a two-channel IO-Link electronic circuit breaker for protecting 24 V DC industrial loads. Each channel provides a 6 A nominal current rating. The module combines electronic circuit protection with digital communication functionality. Its compact DIN-rail design makes it suitable for control cabinets with limited installation space. Integrated status LEDs and pushbutton operation provide convenient local interaction. DF2216 is useful for industrial power distribution systems requiring two independently protected higher-current circuits.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
DF2216 provides independent electronic protection for two 6 A circuits. This architecture supports separate protection of different loads. Electronic fault protection helps protect connected automation components. Independent channels simplify troubleshooting and service. The device can be incorporated into centralized 24 V DC power distribution. It is suitable for machines with multiple higher-current DC loads.
The IO-Link interface allows DF2216 to communicate with compatible automation systems. This supports digital monitoring and diagnostic functions. Operators can obtain information without physically inspecting each module. Such communication can improve maintenance efficiency. The device is suitable for smart factory environments. Its digital capability adds value beyond traditional circuit protection.
The module is designed for DIN-rail mounting. Its compact 12.5 mm width supports high-density electrical layouts. Push-in terminals support quick and organized wiring. Two LEDs provide status information for the channels. Pushbutton controls support local operation. The design is suitable for industrial control cabinets and machine panels.
Two channels
6 A per channel
24 V DC operation
IO-Link interface
Electronic circuit protection
Overload protection
Short-circuit protection
Two status LEDs
Pushbutton controls
Push-in terminals
DIN-rail mounting
Compact housing
Individual circuit monitoring
Digital diagnostics
Industrial power distribution
Industrial control cabinets
PLC systems
Machine automation
Actuator power circuits
Industrial sensors
Factory automation
24 V DC distribution
Connected power management
| Specification | Details |
|---|---|
| Product Code | DF2216 |
| Product Type | Electronic circuit breaker |
| Channels | 2 |
| Nominal Voltage | 24 V DC |
| Nominal Current | 6 A/channel |
| Communication | IO-Link |
| Protection Technology | Electronic |
| Overload Protection | Yes |
| Short-Circuit Protection | Yes |
| Status Display | 2 × LED |
| Operating Element | Pushbutton |
| Electrical Connection | Push-in terminals |
| Mounting | DIN rail |
| Housing | Modular |
| Dimensions | 80 × 12.5 × 98.5 mm |
| Weight | Approx. 73 g |
| Protection Class | III |
| Supply Type | DC |
| Channel Configuration | Independent |
| Digital Interface | IO-Link |
| Installation | Control cabinet |
| Application | Industrial load protection |
| Fault Indication | LED |
| Pack Quantity | 1 piece |
