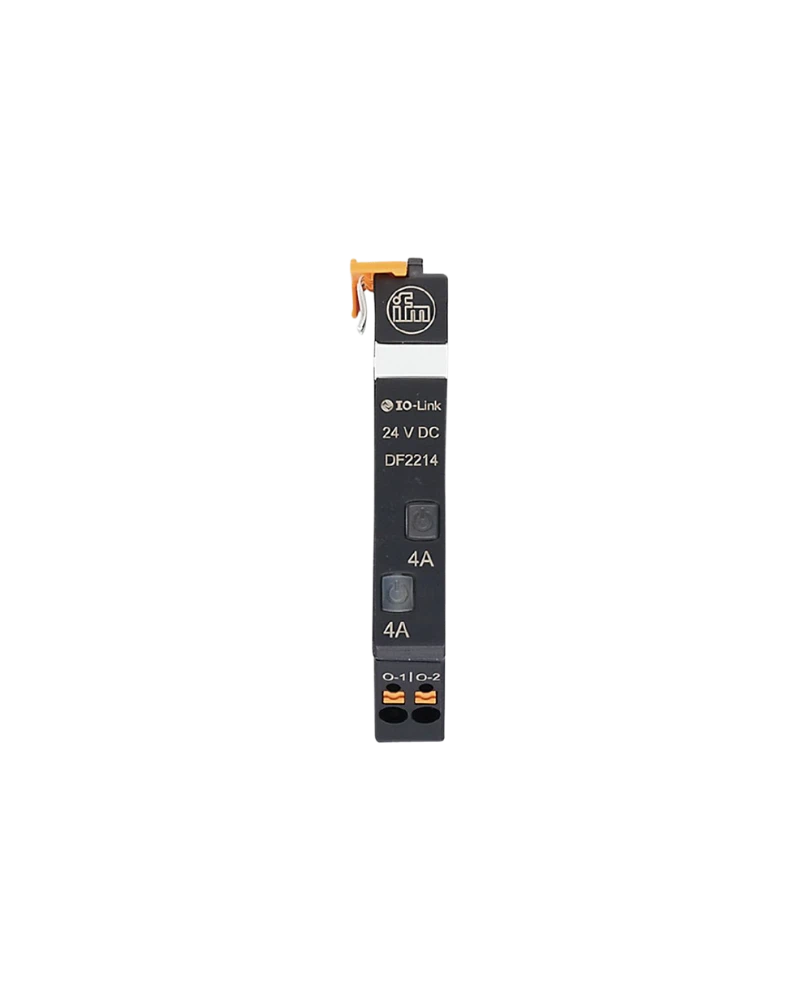

IFM DF2214 is a two-channel electronic circuit breaker designed for 24 V DC industrial power distribution. Each channel provides a nominal 4 A current rating for connected loads. IO-Link communication provides digital integration with compatible automation systems. The electronic protection architecture helps protect equipment against overload and short-circuit conditions. Its compact modular housing supports efficient control cabinet installation. DF2214 is suitable for automation applications where two independently protected 4 A circuits are required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The two-channel design allows separate protection of two electrical loads. Each channel can be connected to an individual automation circuit. This helps reduce the effect of faults on other system components. The 4 A rating supports a wide variety of industrial devices. Electronic protection improves the reliability of DC load distribution. The module can be integrated into structured machine power architectures.
DF2214 supports IO-Link-based digital communication. This enables integration with modern industrial control systems. Monitoring information can support faster identification of abnormal conditions. Digital communication also reduces the need for manual circuit inspection. The module can therefore contribute to more intelligent power management. It is suitable for factories implementing connected automation systems.
The 12.5 mm module width supports high-density cabinet layouts. DIN-rail mounting provides a standard installation method. Push-in terminals simplify wiring. Local indication helps operators understand module status. The unit can be installed alongside compatible DF-series modules. This makes it suitable for scalable electrical protection architectures.
Two independent channels
4 A per channel
24 V DC nominal voltage
IO-Link communication
Electronic protection
Overload protection
Short-circuit protection
LED status indication
Pushbutton operation
Push-in terminal connection
DIN-rail mounting
Compact 12.5 mm width
Industrial cabinet installation
Digital diagnostic capability
Reliable DC circuit protection
PLC power distribution
Industrial automation
Machine control panels
Sensor and actuator protection
Factory machinery
Control cabinets
24 V DC systems
Smart automation networks
| Specification | Details |
|---|---|
| Product Code | DF2214 |
| Product Type | Electronic circuit breaker |
| Channels | 2 |
| Nominal Voltage | 24 V DC |
| Input Voltage | Refer to datasheet |
| Nominal Current | 4 A/channel |
| Communication | IO-Link |
| Protection Type | Electronic |
| Overload Protection | Yes |
| Short-Circuit Protection | Yes |
| Protection Class | III |
| Status Display | LED |
| Operating Element | Pushbutton |
| Connection | Push-in terminals |
| Mounting | DIN rail |
| Housing Type | Modular |
| Module Width | 12.5 mm |
| Height | Approx. 80 mm |
| Length | Approx. 98.5 mm |
| Application | Industrial power distribution |
| Channel Monitoring | Individual |
| Diagnostics | IO-Link |
| Installation | Control cabinet |
| Manufacturer | IFM electronic |
| Pack Quantity | 1 piece |
