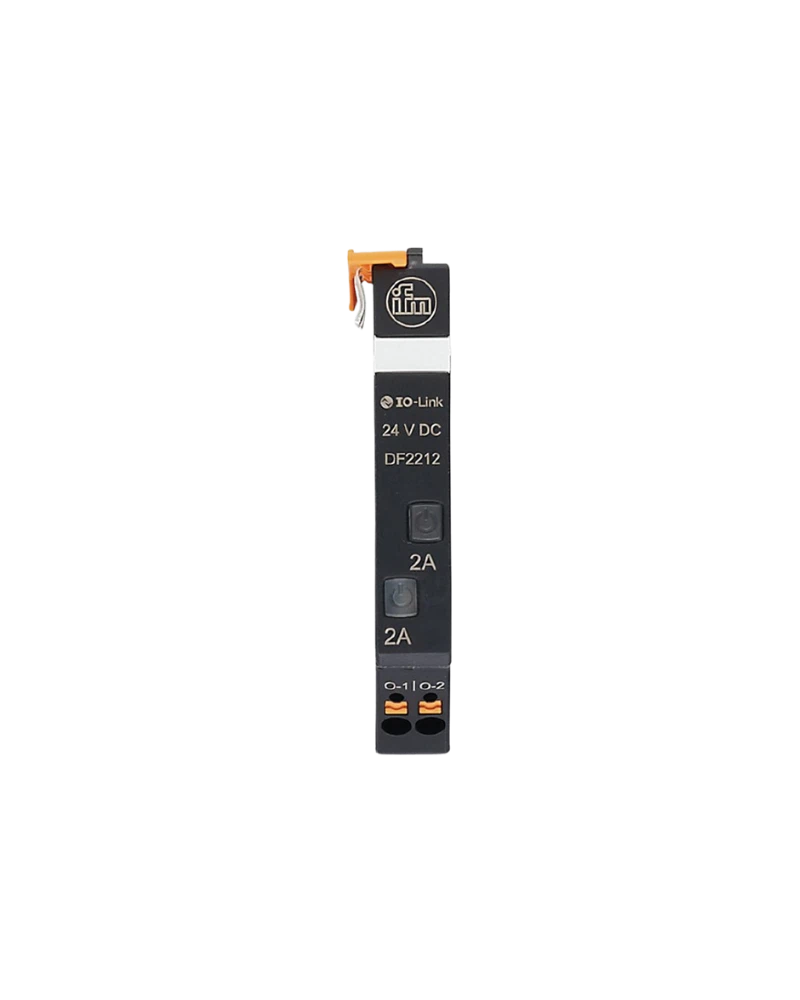

IFM DF2212 is a two-channel electronic circuit breaker designed for protecting 24 V DC loads in industrial automation systems. Each channel provides a 2 A nominal current rating. The module supports IO-Link communication for digital monitoring and device integration. Its electronic protection design helps protect automation components against excessive current. The compact DIN-rail housing supports efficient installation in electrical control cabinets. DF2212 is suitable for applications requiring multiple independently protected low-current circuits.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The two-channel architecture allows two loads to be protected independently. Each channel can be used for individual automation devices or circuits. This improves fault isolation compared with a single common protection point. The 2 A rating is suitable for many sensors, small actuators and control devices. Electronic protection helps protect circuits during abnormal load conditions. DF2212 therefore supports organized and reliable DC power distribution.
IO-Link communication gives the module digital connectivity within an automation network. This can simplify monitoring and maintenance of protected circuits. The device can provide information through compatible IO-Link infrastructure. Digital monitoring supports improved visibility of power system conditions. The technology is particularly useful in smart factory environments. DF2212 combines electrical protection with modern automation communication.
The module uses a compact industrial housing suitable for DIN-rail installation. Its narrow design helps conserve cabinet space. Push-in terminals support convenient wiring. Status indicators help operators identify operating conditions. The module can be installed beside other DF-series power modules. This creates a scalable approach to 24 V DC distribution.
Two protected channels
2 A per channel
24 V DC nominal voltage
IO-Link communication
Electronic circuit protection
Overload protection
Short-circuit protection
Status LEDs
Pushbutton control
Push-in terminals
DIN-rail mounting
Compact housing
Individual channel protection
Digital monitoring
Industrial automation compatibility
Sensor power circuits
Small actuator protection
PLC I/O power
Control cabinet systems
Industrial automation
Machine control
Factory automation
24 V DC distribution
| Specification | Details |
|---|---|
| Product Code | DF2212 |
| Product Type | Electronic circuit breaker |
| Communication | IO-Link |
| Nominal Voltage | 24 V DC |
| Input Voltage | 19.2–30 V DC |
| Number of Channels | 2 |
| Nominal Current | 2 A per channel |
| Fail-Safe Rating | 2 A per channel |
| Protection Class | III |
| Closed-Circuit Current | Approx. 8 mA |
| Buffering Time | 10 ms |
| Protection Technology | Electronic |
| Overload Protection | Yes |
| Short-Circuit Protection | Yes |
| Status Indication | LED |
| Operating Control | Pushbutton |
| Connection | Push-in terminals |
| Mounting | DIN rail |
| Dimensions | 80 × 12.5 × 98.5 mm |
| Weight | Approx. 72.5 g |
| Housing | Modular |
| Communication Interface | IO-Link |
| Application | 24 V DC load protection |
| Pack Quantity | 1 piece |
