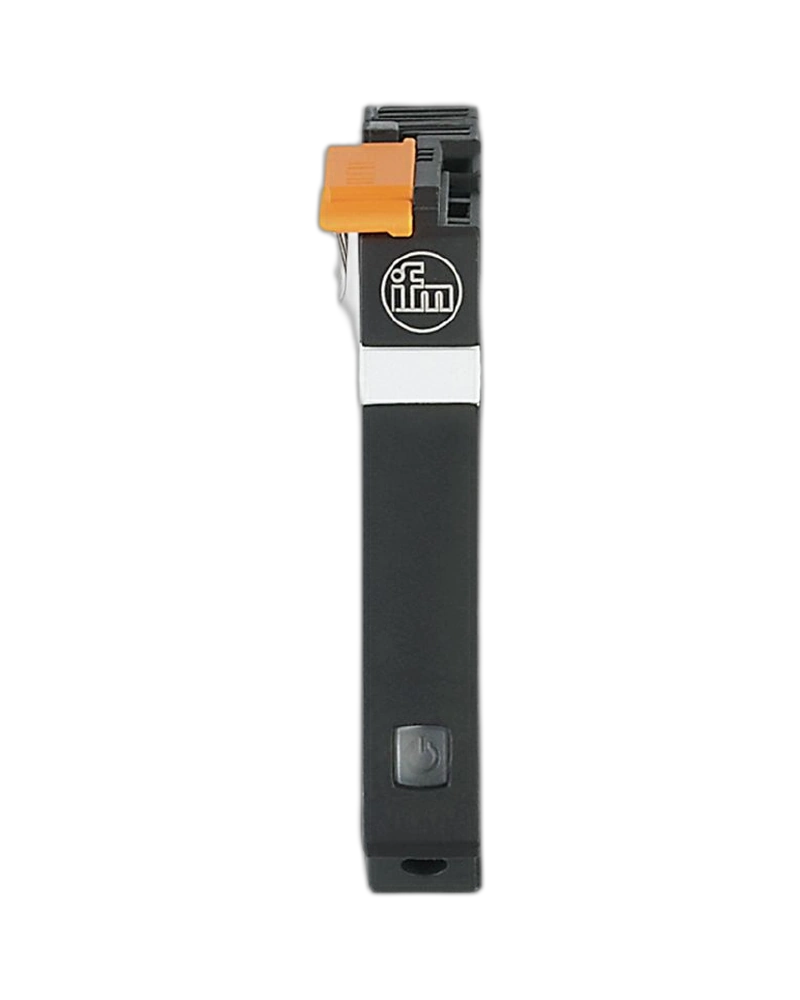

IFM DF2210 is a single-channel electronic circuit breaker designed for 24 V DC industrial power protection. It provides a 10 A nominal current rating and supports IO-Link communication. The device accepts an 18–30 V DC input range and uses electronic protection to help safeguard connected loads. Its compact modular design is suitable for installation in control cabinets. Digital communication enables integration with IO-Link-based automation systems. DF2210 is suitable for applications where higher-current 24 V DC loads require individual electronic protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 10 A output rating makes DF2210 suitable for higher-current industrial loads. Individual channel protection helps isolate faults from other circuits. Electronic protection supports controlled response to abnormal current conditions. The device can be integrated into modular 24 V DC distribution systems. IO-Link adds monitoring capability to the electrical protection function. This makes the module suitable for intelligent industrial control cabinets.
IO-Link connectivity allows the circuit breaker to participate in a digital automation network. Device status can be monitored from compatible control infrastructure. This can improve troubleshooting and maintenance efficiency. Digital information reduces dependence on manual visual inspection. The module can therefore contribute to more transparent power management. It is particularly useful in automation systems using IO-Link devices extensively.
The compact housing helps optimize control cabinet space. DIN-rail mounting supports standardized industrial installation. Push-in terminals simplify wiring and maintenance. Status indication provides quick local feedback. The modular format allows DF2210 to be installed with other DF-series components. This makes it appropriate for scalable electrical distribution architectures.
10 A nominal current
24 V DC operation
Single protected channel
IO-Link communication
18–30 V DC input
Electronic circuit protection
Overload protection
Short-circuit protection
Status indication
Pushbutton operation
Push-in terminals
DIN-rail mounting
Compact housing
Digital diagnostics
Industrial automation integration
Machine power distribution
PLC-controlled systems
Industrial actuators
Automation machinery
Control panels
Factory automation
24 V DC load protection
IO-Link automation systems
| Specification | Details |
|---|---|
| Product Code | DF2210 |
| Product Type | Electronic circuit breaker |
| Series | DF2 |
| Communication | IO-Link |
| Nominal Voltage | 24 V DC |
| Input Voltage | 18–30 V DC |
| Channels | 1 |
| Nominal Current | 10 A |
| Fail-Safe Element | 10 A |
| Protection Class | III |
| Buffering Time | 10 ms |
| Closed-Circuit Current | 10 mA |
| Protection Technology | Electronic |
| Overload Protection | Yes |
| Short-Circuit Protection | Yes |
| Status Display | LED |
| Operating Element | Pushbutton |
| Connection | Push-in terminals |
| Mounting | DIN rail |
| Dimensions | 80 × 12.5 × 98.5 mm |
| Weight | Approx. 72 g |
| Operating Temperature | Refer to datasheet |
| Protection | Refer to datasheet |
| Communication Interface | IO-Link |
| Pack Quantity | 1 piece |
