IFM DF2208 is an IO-Link-enabled electronic circuit breaker designed for protecting 24 V DC industrial loads. It provides one protected channel with an 8 A nominal current rating. The device accepts an 18–30 V DC input range and is designed for SELV/PELV power systems. Its electronic protection architecture helps protect connected equipment against overload and fault conditions. The integrated IO-Link capability supports digital monitoring and device communication. Its compact 80 × 12.5 × 98.5 mm housing is designed for efficient DIN-rail installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
DF2208 combines electronic load protection with IO-Link communication. The single 8 A channel is suitable for individual industrial loads. Electronic protection provides controlled response during abnormal current conditions. The device can be integrated into centralized 24 V DC distribution systems. Digital communication can support improved visibility of device status. This approach is useful for modern industrial automation architectures.
IO-Link provides a digital interface for communicating with compatible automation systems. This can help maintenance teams access device information and operating conditions. The technology reduces the need for manual inspection of every protected circuit. Diagnostic information can support predictive maintenance strategies. DF2208 is therefore useful in connected control cabinet designs. It provides both electrical protection and communication capability in one compact module.

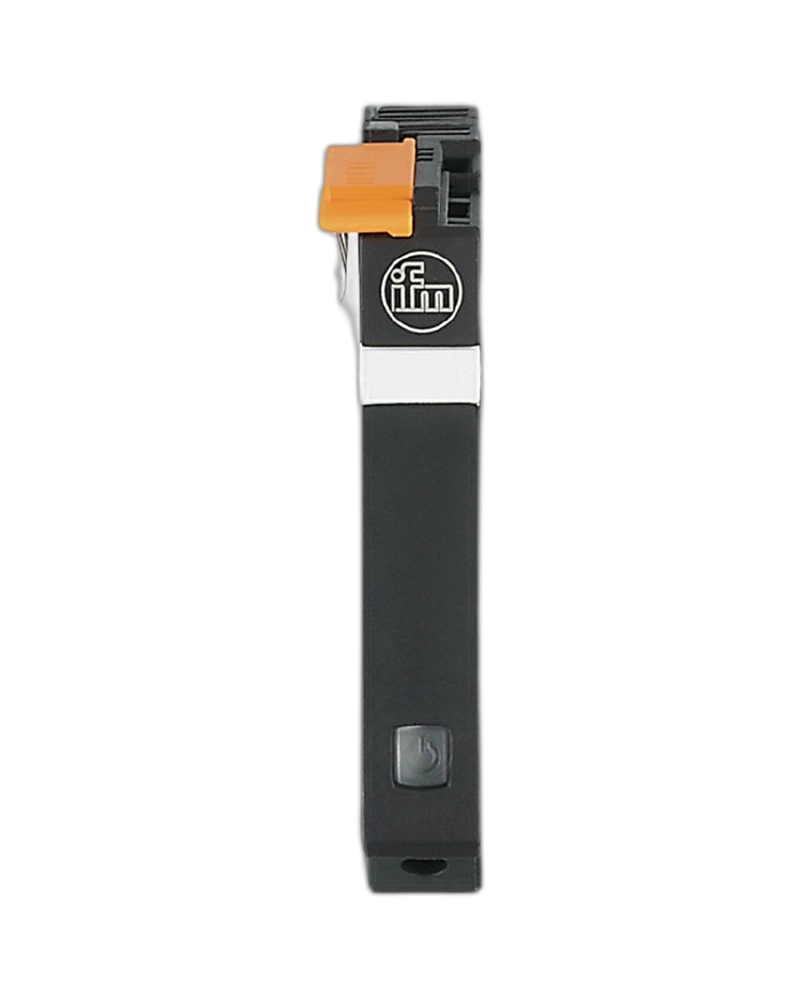

The unit is designed for DIN-rail installation and push-in electrical connections. Its 12.5 mm width helps minimize cabinet space requirements. A front panel provides status indication and operating access. The compact construction supports modular power distribution. It can be installed alongside other IFM DF-series modules. This makes it suitable for scalable control cabinet architectures.
24 V DC nominal voltage
8 A nominal current
Single protection channel
18–30 V DC input range
IO-Link communication
Electronic overload protection
Short-circuit protection
Status LED
Pushbutton operation
Push-in terminals
DIN-rail mounting
Protection class III
Compact 12.5 mm width
Industrial control cabinet design
Digital diagnostic capability
PLC power protection
Industrial automation
Machine control cabinets
Actuator protection
Motor control auxiliaries
Sensor supply protection
Factory automation
IO-Link power distribution
| Specification | Details |
|---|---|
| Product Code | DF2208 |
| Product Type | Electronic circuit breaker |
| Product Family | DF Series |
| Communication | IO-Link |
| Nominal Voltage | 24 V DC |
| Input Voltage | 18–30 V DC |
| Number of Channels | 1 |
| Nominal Current | 8 A |
| Fail-Safe Element Rating | 8 A |
| Protection Class | III |
| Mains Buffering | 10 ms |
| Closed-Circuit Current | 10 mA |
| Load Capacitance | Up to 20 mF |
| Protection Function | Electronic |
| Overload Protection | Yes |
| Short-Circuit Protection | Yes |
| Status Display | LED |
| Operating Element | Pushbutton |
| Connection | Push-in terminals |
| Mounting | DIN rail |
| Dimensions | 80 × 12.5 × 98.5 mm |
| Weight | Approx. 71.5 g |
| Operating Temperature | -25 to 60 °C |
| Protection | IP20 / front protection |
| EMC | EN 61000-6-2 / EN 61000-6-3 |
