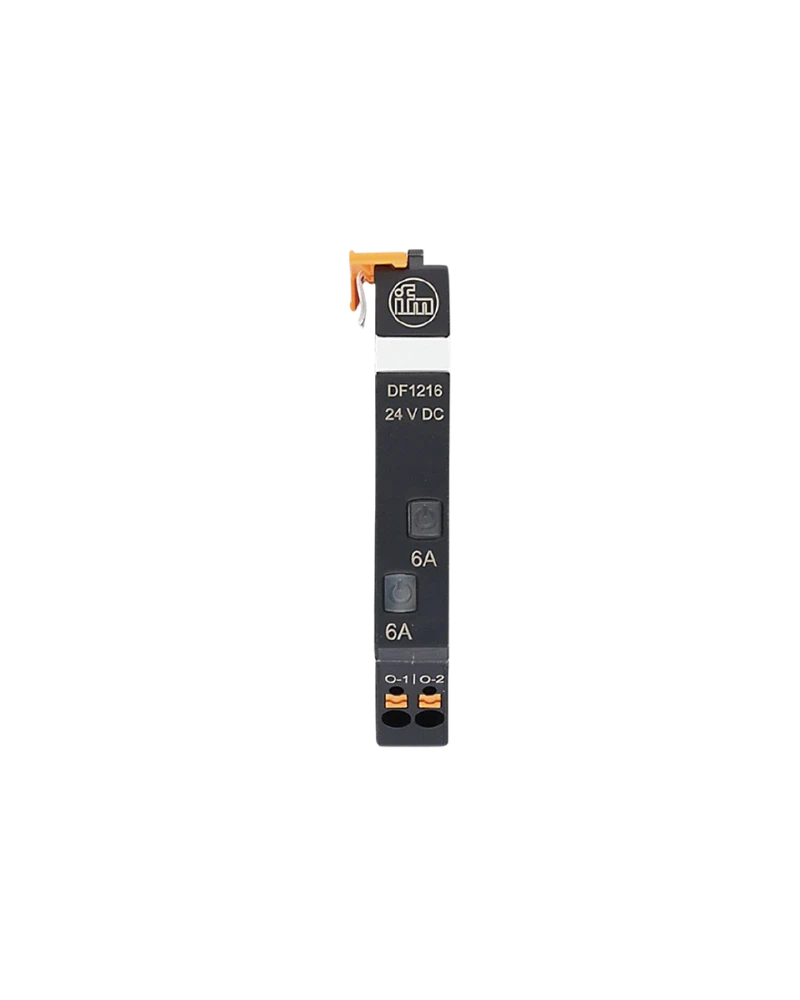

IFM DF1216 is an electronic circuit breaker designed to provide reliable protection for 24 V DC power distribution systems. It features two independent protection channels with a nominal current rating of 6 A per channel. The device helps protect connected loads against overload and short-circuit conditions while maintaining an organized power distribution architecture. Its compact DIN-rail housing makes it suitable for installation inside control cabinets and industrial panels. The integrated status indication allows operators to identify the operating condition of the protected channels. DF1216 is suitable for industrial automation systems where dependable 24 V DC circuit protection is required. The verified datasheet specifies DIN-rail mounting, 80 × 12.5 × 98.5 mm dimensions and status LEDs with pushbuttons.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
DF1216 provides two separately protected output channels for efficient distribution of 24 V DC power. Each channel is designed around a 6 A nominal current rating for connected loads. Electronic protection helps reduce the risk of damage caused by excessive current conditions. Individual channel protection makes fault identification easier during machine operation. The electronic circuit breaker can be integrated into centralized control cabinet power architectures. This makes DF1216 useful for protecting sensors, actuators, control components and other automation loads.
The compact housing allows DF1216 to be installed efficiently in electrical control cabinets. DIN-rail mounting provides a standardized installation method for industrial panels. Its narrow 12.5 mm housing helps save valuable cabinet space. Push-in terminal technology supports practical electrical installation and maintenance. Status LEDs provide a convenient visual indication of operating conditions. The design is suitable for organized modular power distribution systems.
The electronic protection architecture helps improve the reliability of 24 V DC supply circuits. Separate channels allow different loads to be protected independently. Fast fault response can help limit the impact of overload conditions. Visual status indication supports quicker troubleshooting by maintenance personnel. The compact construction helps simplify cabinet layout and wiring. DF1216 is therefore suitable for automation systems requiring dependable and space-efficient circuit protection.
Two-channel electronic circuit breaker
24 V DC nominal operating voltage
6 A nominal current per channel
Electronic overload protection
Short-circuit protection
Independent channel protection
DIN-rail mounting
Compact 12.5 mm module width
Integrated status LEDs
Pushbutton operation
Push-in terminal connection
Industrial control cabinet installation
Space-saving modular construction
Reliable 24 V DC load protection
Suitable for automation power distribution
Industrial control cabinets
PLC power distribution
Automation machinery
Sensor power protection
Actuator power circuits
Machine control systems
Factory automation panels
Industrial electrical distribution
| Specification | Details |
|---|---|
| Product Code | DF1216 |
| Product Type | Electronic circuit breaker |
| Product Family | IFM DF Series |
| Product Function | Circuit protection |
| Protection Technology | Electronic |
| Nominal Voltage | 24 V DC |
| Number of Channels | 2 |
| Nominal Current | 2 × 6 A |
| Supply Type | DC |
| Protection Function | Overload protection |
| Fault Protection | Short-circuit protection |
| Status Indication | LED |
| Operating Elements | Pushbuttons |
| Electrical Connection | Push-in terminals |
| Mounting | DIN rail |
| DIN Rail Standard | TH35 / EN 60715 |
| Housing Type | Rectangular |
| Dimensions | 80 × 12.5 × 98.5 mm |
| Width | 12.5 mm |
| Weight | Approx. 69.5 g |
| Installation | Control cabinet |
| Channel Monitoring | Individual channel status |
| Manufacturer | IFM electronic |
| Pack Quantity | 1 piece |
| Approvals | Refer to manufacturer datasheet |
