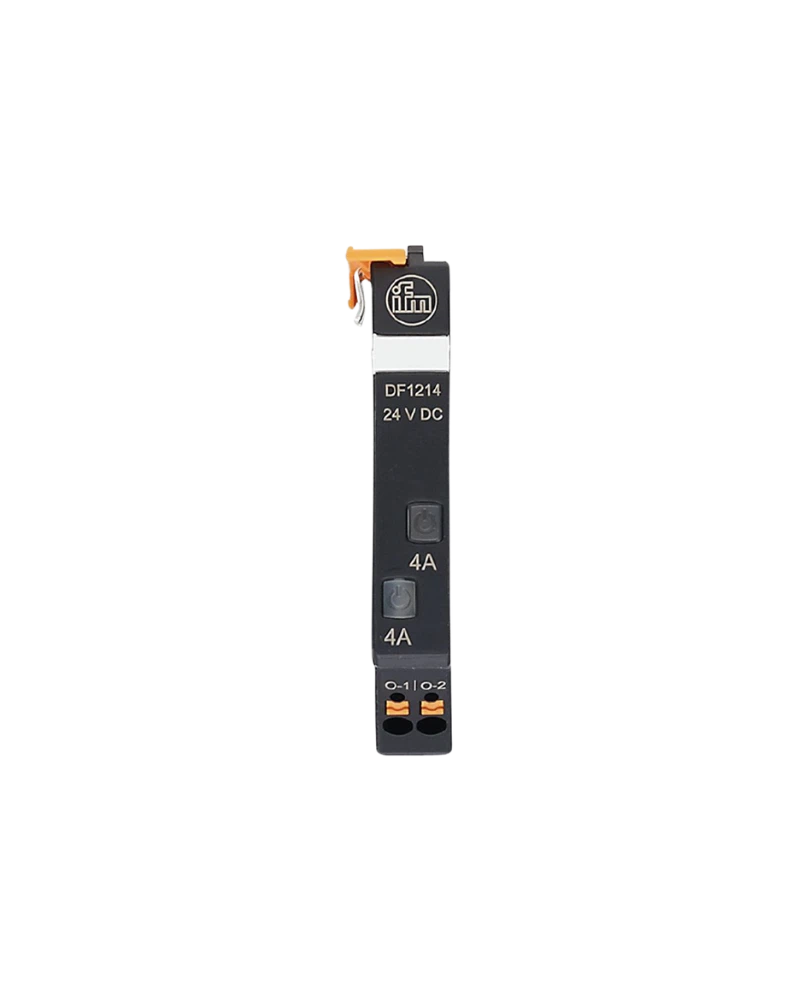

The IFM DF1214 is a two-channel electronic circuit protection module designed for 24 V DC industrial power distribution. Each channel provides a fixed 4 A protection rating. The module is designed for use with the DF1100 standard supply module. It provides selective protection for two independent machine circuits within a compact module. The modular design helps simplify wiring, maintenance and control-panel installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DF1214 provides two individually protected 4 A channels for medium-current 24 V DC loads. Fixed protection values help prevent incorrect adjustment during installation or maintenance. The electronic protection system can disconnect a faulty circuit while maintaining protection for other circuits. This makes the module suitable for control systems containing multiple independent loads. Its compact two-channel architecture helps save space inside electrical cabinets.
The DF1214 can be installed alongside other DF12xx modules and connected to a DF1100 supply module. Push-in terminals provide fast and reliable electrical connections. The modular design allows the protection system to be expanded according to the number of machine circuits. LED status indication supports quick identification of operating or fault conditions. DIN-rail mounting provides convenient installation in industrial panels.
2 protected channels
4 A per channel
24 V DC operation
Electronic circuit breaker
Overload protection
Short-circuit protection
Fixed 4 A rating
DF1100 compatibility
Push-in terminals
DIN-rail mounting
LED status indication
Modular installation
Selective circuit protection
Compact housing
Industrial control-panel design
PLC circuit protection
Actuator circuits
Sensor systems
24 V DC power distribution
Industrial automation
Machine control cabinets
Mobile machine electronics
Control systems
Automation panels
Electrical equipment
Machine I/O protection
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | DF1214 |
| Product Type | Electronic Circuit Breaker |
| Version | Standard |
| Number of Channels | 2 |
| Nominal Current | 4 A per channel |
| Fail-Safe Current | 4 A |
| Channel Configuration | 2 × 4 A |
| Nominal Voltage | 24 V DC |
| Input Voltage | 18...30 V DC |
| Supply Module | DF1100 |
| Protection Function | Electronic |
| Overload Protection | Yes |
| Short-Circuit Protection | Yes |
| Current Rating | Fixed |
| Switching Characteristic | Time-current |
| Connection | Push-in terminals |
| Mounting | DIN rail TH35 |
| Device Width | Approx. 12.5 mm |
| Ambient Temperature | -25...60 °C |
| Storage Temperature | -40...70 °C |
| Protection | IP30 installation / IP20 operating |
| Status Indication | LED |
| System | DF12xx modular protection |
| Application | 24 V DC circuit protection |
| Cabinet Installation | Yes |
