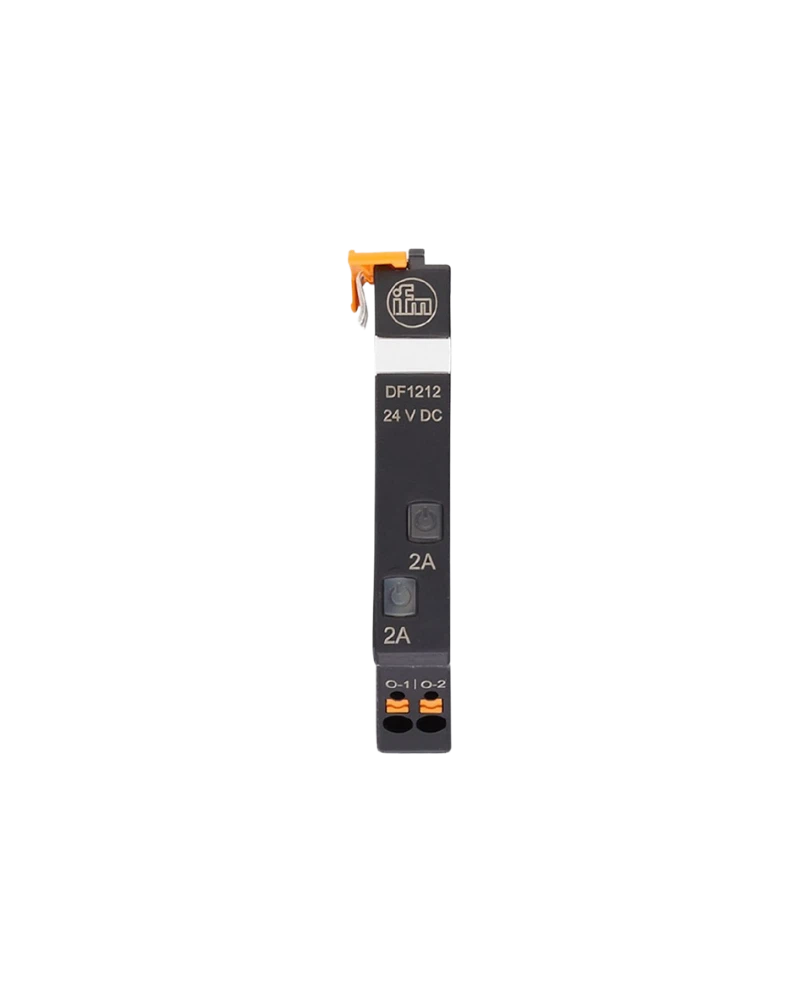

The IFM DF1212 is a two-channel electronic circuit breaker designed for selective protection of 24 V DC electrical circuits. Each channel provides a fixed 2 A protection rating. The module is designed to work with the DF1100 supply module in a modular protection system. It helps protect individual low-current loads from overload and short-circuit conditions. Its compact design is suitable for space-saving industrial control cabinets.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DF1212 provides two individually protected 2 A channels in a single compact module. This allows two separate loads to be protected without requiring separate bulky circuit breakers. Fixed current ratings reduce the possibility of incorrect adjustment. The electronic protection system provides selective protection within the 24 V DC distribution network. This is useful for sensor, controller and actuator circuits.
The module can be mounted directly alongside other DF12xx modules. Its push-in terminals simplify electrical connection and maintenance. Multiple modules can be connected to a common DF1100 supply module. LED indication helps identify operating and protection states. The DIN-rail design supports quick installation in industrial control cabinets.
2 protected channels
2 A per channel
24 V DC system
Electronic circuit protection
Overload protection
Short-circuit protection
Fixed current rating
DF1100 compatibility
DIN-rail mounting
Push-in connection
LED indication
Modular design
Selective protection
Compact construction
Industrial cabinet use
Sensor protection
PLC circuit protection
Small actuator circuits
Control panels
Machine automation
24 V DC distribution
Industrial machinery
Electrical cabinets
Mobile equipment
Automation systems
Machine-control circuits
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | DF1212 |
| Product Type | Electronic Circuit Breaker |
| Version | Standard |
| Number of Channels | 2 |
| Nominal Current | 2 A per channel |
| Fail-Safe Current | 2 A |
| Total Channels | 2 × 2 A |
| Nominal Voltage | 24 V DC |
| Input Voltage | 18...30 V DC |
| Supply Module | DF1100 |
| Protection Function | Electronic |
| Overload Protection | Yes |
| Short-Circuit Protection | Yes |
| Current Setting | Fixed |
| Switching Characteristic | Time-current |
| Connection | Push-in terminals |
| Mounting | DIN rail TH35 |
| Device Width | Approx. 12.5 mm |
| Ambient Temperature | -25...60 °C |
| Storage Temperature | -40...70 °C |
| Protection | IP30 installation / IP20 operating |
| Status Indication | LED |
| Module Architecture | Modular |
| Application | 24 V DC circuit protection |
| Compatible System | DF1100 |
