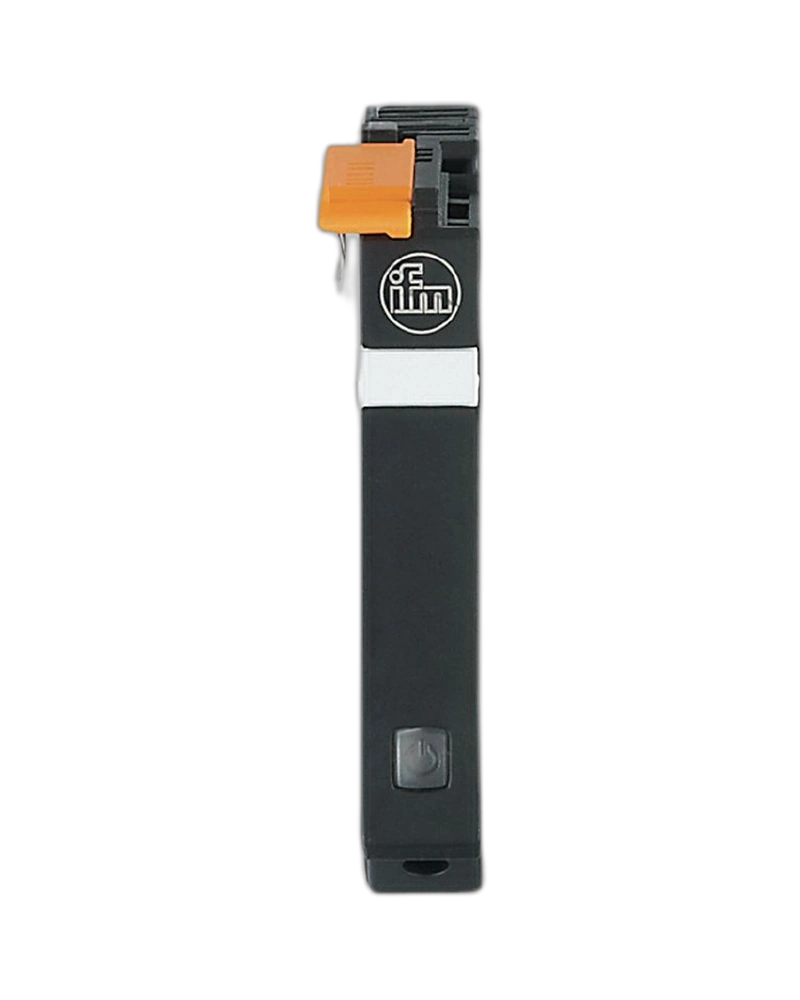

The IFM DF1210 is a standard electronic circuit breaker providing a single 10 A protected output channel. It is designed for selective protection of 24 V DC secondary circuits in industrial control systems. The module works with the DF1100 supply module and can be installed in a modular configuration. Its electronic protection function helps protect connected loads from overload and short-circuit conditions. The compact DIN-rail design makes it suitable for control cabinets with limited space.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DF1210 provides a fixed 10 A protection rating for applications requiring higher current capacity than the 8 A version. The fixed rating prevents accidental adjustment of the protection threshold. It can protect individual machine loads and electrical circuits. The electronic protection system provides selective circuit protection within the 24 V DC distribution system. This allows faults in one circuit to be isolated from other connected loads.
The module can be mounted alongside other DF12xx protection modules. Push-in connection technology reduces wiring effort and simplifies maintenance. The system can support multiple protection modules from one DF1100 supply module. LED indication helps provide visual information about the module status. DIN-rail mounting makes the module suitable for standard industrial cabinets.
1 protected channel
10 A nominal current
24 V DC operation
Electronic circuit breaker
Overload protection
Short-circuit protection
Fixed 10 A rating
DF1100 compatible
Push-in terminals
DIN-rail mounting
LED indication
Modular installation
Selective protection
Compact width
Industrial design
Control cabinet protection
PLC supply protection
Actuator protection
Sensor circuit protection
24 V DC distribution
Industrial automation
Machine control
Electrical panels
Automation equipment
Mobile machine panels
Control system protection
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | DF1210 |
| Product Type | Electronic Circuit Breaker |
| Version | Standard |
| Channels | 1 |
| Nominal Current | 10 A |
| Fail-Safe Current | 10 A |
| Nominal Voltage | 24 V DC |
| Input Voltage | 18...30 V DC |
| Supply Module | DF1100 |
| Protection | Electronic |
| Overload Protection | Yes |
| Short-Circuit Protection | Yes |
| Current Rating | Fixed 10 A |
| Switching Characteristic | Time-current |
| Connection | Push-in |
| Mounting | DIN rail TH35 |
| Module Width | Approx. 12.5 mm |
| Ambient Temperature | -25...60 °C |
| Storage Temperature | -40...70 °C |
| Protection Area | IP30 installation / IP20 operating |
| Status Indication | LED |
| System Type | Standard DF12xx |
| Application | 24 V DC circuit protection |
| Cabinet Installation | Yes |
