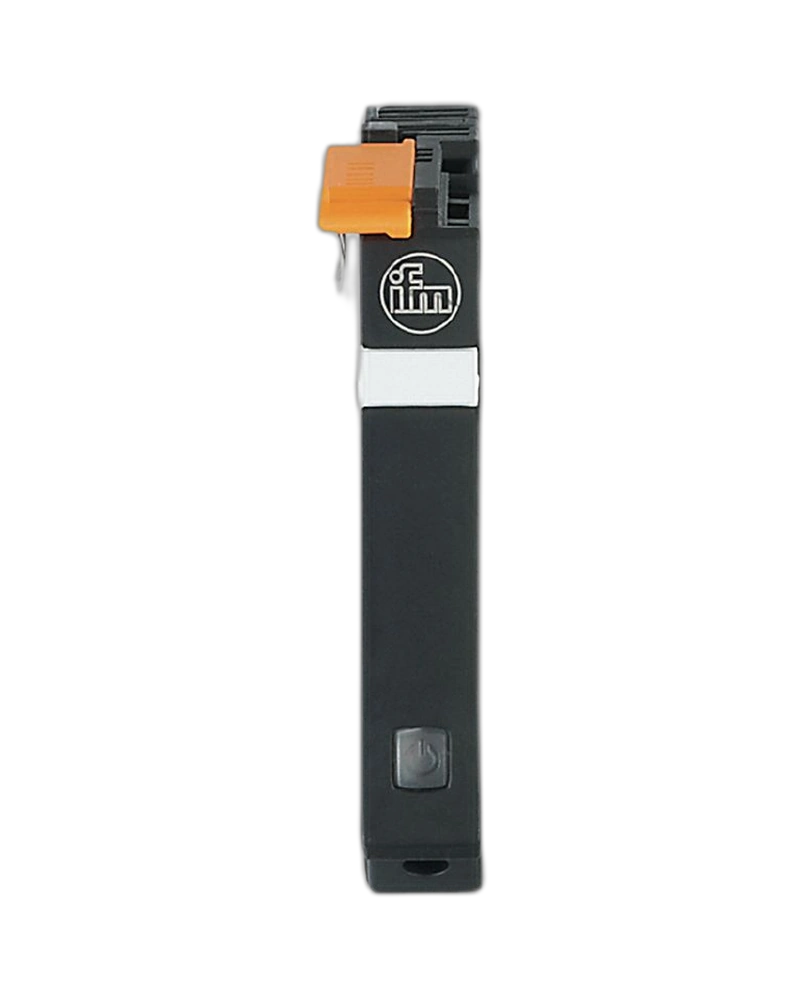

The IFM DF1208 is a standard electronic circuit protection module with one 8 A protected channel. It is designed for selective protection of 24 V DC secondary circuits. The module is installed with the DF1100 supply module in a modular cabinet system. It provides reliable protection against overload and short-circuit conditions. Its compact design helps reduce wiring space and simplifies machine-panel installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DF1208 provides dedicated protection for an individual 24 V DC load. Its fixed 8 A rating helps prevent incorrect adjustment of the protection threshold. The module can be used for sensors, actuators, controllers and other electrical loads. Electronic protection provides faster and more controlled circuit protection than conventional fuse arrangements. Multiple modules can be installed together to create a structured protection system.
The DF1208 is designed for connection to the DF1100 supply module. Push-in terminals simplify wiring and maintenance. DIN-rail mounting allows the module to be integrated into compact control cabinets. The modular architecture makes replacement and expansion straightforward. LED status indication helps operators identify the operating condition of the protection module.
1 protected channel
8 A nominal current
24 V DC system
Electronic circuit protection
Overload protection
Short-circuit protection
Fixed current rating
Push-in connection
DIN-rail mounting
Compact design
LED status indication
Modular architecture
DF1100 compatibility
Selective load protection
Industrial cabinet installation
PLC power protection
Sensor circuits
Actuator circuits
Control cabinets
24 V DC distribution
Machine automation
Industrial control systems
Mobile equipment
Electrical panels
Automation machinery
Machine control circuits
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | DF1208 |
| Product Type | Electronic Circuit Breaker |
| Version | Standard |
| Number of Channels | 1 |
| Nominal Current | 8 A |
| Fail-Safe Current | 8 A |
| Nominal Voltage | 24 V DC |
| Input Voltage | 18...30 V DC |
| Supply Module | DF1100 |
| Protection Function | Electronic circuit protection |
| Overload Protection | Yes |
| Short-Circuit Protection | Yes |
| Switching Characteristic | Time-current characteristic |
| Current Rating | Fixed |
| Connection | Push-in terminals |
| Mounting | DIN rail TH35 |
| Device Width | Approx. 12.5 mm |
| Ambient Temperature | -25...60 °C |
| Storage Temperature | -40...70 °C |
| Protection | IP30 installation / IP20 operating |
| Status Indication | LED |
| Module Type | Standard |
| Application | 24 V DC load protection |
| Compatible System | DF1100 modular system |
