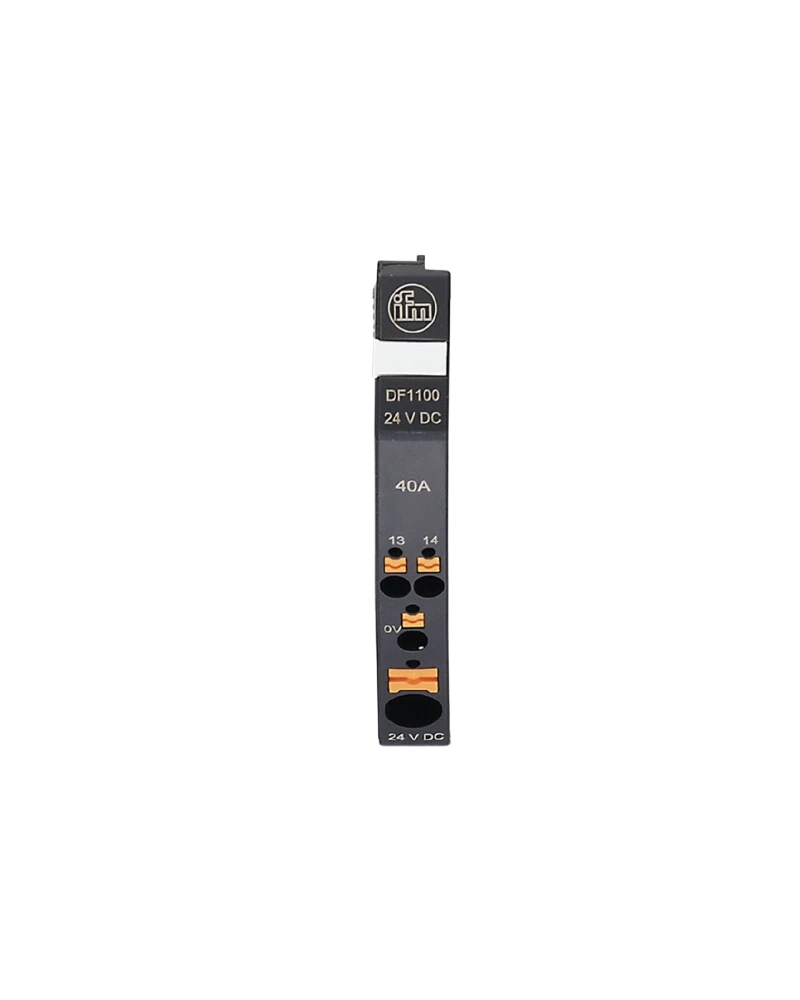

The IFM DF1100 is a standard supply module designed to provide power to DF12xx electronic circuit protection modules. It supports a 24 V DC system with a maximum total current of 40 A. The modular design allows multiple circuit protection modules to be installed side by side. This provides selective protection for individual 24 V DC loads. The system simplifies wiring and helps improve power distribution within machine control cabinets.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DF1100 acts as the supply module for standard DF12xx electronic circuit breakers. Up to multiple protection modules can be connected to the supply module. This creates a centralized 24 V DC protection system for different machine loads. The modular arrangement reduces wiring complexity compared with separate protection devices. The system is suitable for industrial automation and machine-control cabinets.
The DF1100 supports a maximum total current of 40 A. Connected protection modules provide individual protection against overload and short circuits. The modular system allows failed protection channels to be identified and serviced efficiently. Push-in connection technology helps simplify installation. DIN-rail mounting provides a compact cabinet solution.
24 V DC supply module
40 A maximum total current
Standard DF12xx compatibility
Modular design
DIN-rail mounting
Push-in terminals
Compact installation
Simplified wiring
Selective circuit protection
Individual load protection
Easy replacement
Industrial control-panel use
Overload protection system
Short-circuit protection system
LED/status-compatible architecture
Industrial control cabinets
Machine automation
PLC panels
24 V DC distribution
Automation systems
Mobile machine electrical panels
Control systems
Sensor power distribution
Actuator power distribution
Industrial equipment
Machine electrical protection
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | DF1100 |
| Product Type | Supply Module |
| System | Electronic Circuit Breaker |
| Version | Standard |
| Nominal Voltage | 24 V DC |
| Input Voltage | 18...30 V DC |
| Maximum Total Current | 40 A |
| Connected Modules | DF12xx |
| Number of Modules | Up to 10 standard modules |
| Connection Technology | Push-in |
| Installation | DIN rail TH35 |
| Device Width | Approx. 12.5 mm module format |
| Protection Area | IP30 installation / IP20 operating area |
| Ambient Temperature | -25...60 °C |
| Storage Temperature | -40...70 °C |
| Protection Function | Power distribution |
| System Function | Supply for circuit breakers |
| Output Distribution | Multiple protected circuits |
| Switching System | Electronic protection architecture |
| Status Monitoring | System dependent |
| Mounting | DIN rail |
| Application | 24 V DC distribution |
| Cabinet Installation | Yes |
| Compatible Modules | DF1208 / DF1210 / DF1212 / DF1214 / DF1216 / DF1220 |
