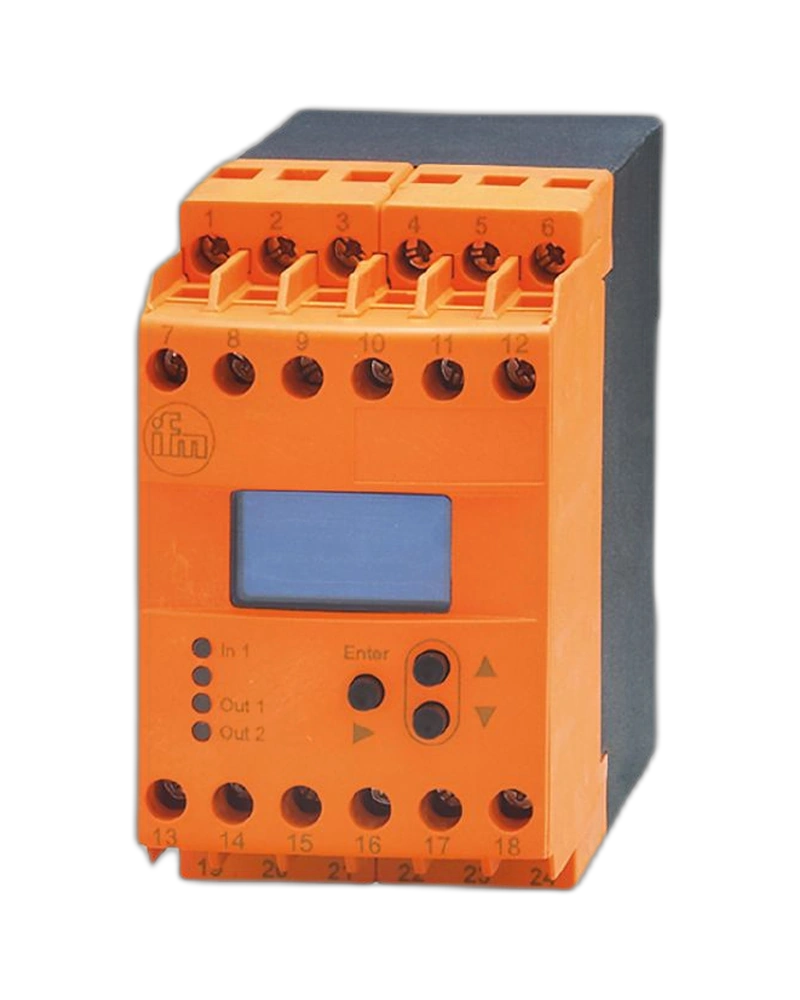

The IFM DD2505 is a programmable double pulse evaluation system designed for monitoring rotational speed, frequency and machine cycles. It provides two pulse inputs with one switching point for each input. The device can evaluate machine speed and generate switching signals when configured limits are reached. It supports AC and DC power supply for flexible industrial installation. The compact DIN-rail housing makes the unit suitable for control cabinets.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DD2505 provides two pulse inputs for monitoring two independent signals or machine conditions. Each input can have its own switching point for flexible speed monitoring. This makes it suitable for applications where two speed signals must be evaluated simultaneously. Relay and transistor outputs provide convenient machine-control interfaces. The programmable design enables adaptation to different machine requirements.
The unit can be used for overspeed, underspeed and acceptable-range monitoring. A test function allows checking of the evaluation system without requiring an external frequency source. LEDs and control functions assist with commissioning and diagnostics. Its wide-range supply simplifies integration into industrial electrical systems. DIN-rail mounting enables easy installation and replacement.
Two pulse inputs
Two monitoring channels
One switching point per input
Speed monitoring
Frequency monitoring
Machine-cycle monitoring
PNP/NPN sensor compatibility
NAMUR support
Relay outputs
Transistor outputs
Programmable functions
Test function
Wide-range AC/DC supply
DIN-rail mounting
LED indication
Dual-speed monitoring
Conveyor systems
Motor monitoring
Pump systems
Fan systems
Machine drives
Rotational equipment
Material handling
Industrial automation
Production machinery
Motion control
Machine protection
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | DD2505 |
| Product Type | Double Pulse Evaluation System |
| Product Family | MONITOR FR-2 |
| Pulse Inputs | 2 |
| Switching Points | 1 per input |
| Sensor Type | PNP / NPN / NAMUR depending configuration |
| Supply Voltage AC | 110...240 V AC |
| Supply Voltage DC | 27 V DC nominal |
| Relay Outputs | 2 |
| Transistor Outputs | 2 |
| Monitoring | Speed / frequency |
| Input Evaluation | Pulse sequence |
| Test Function | Supported |
| Programmable | Yes |
| Status Indication | LED |
| Connection | Screw terminals |
| Mounting | DIN rail |
| Housing | Industrial plastic |
| Dimensions | Approx. 78 × 45 × 124.7 mm |
| Sensor Supply | Available |
| Output Function | Switching |
| Machine Monitoring | Supported |
| Process Monitoring | Supported |
| Installation | Control cabinet |
| Application | Motion control |
| Protection | Industrial control-panel design |
