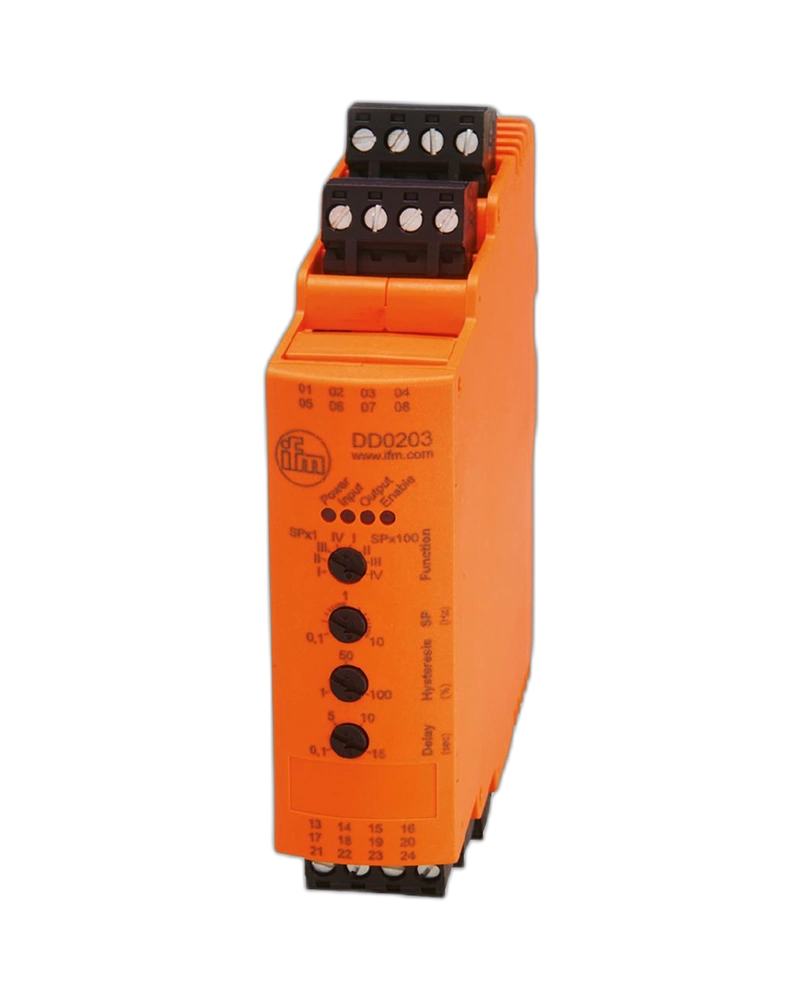

The IFM DD0203 is a speed monitoring evaluation unit designed to monitor rotational and linear movement. It evaluates pulse signals from external sensors and detects underspeed or overspeed conditions. The unit provides relay and transistor outputs for machine-control integration. Its wide-range power supply supports both AC and DC supply systems. Potentiometer-based adjustment provides simple configuration of speed and monitoring functions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DD0203 can evaluate pulse sequences to determine machine speed. The monitoring threshold can be adjusted according to the required application. Overspeed and underspeed monitoring functions allow the device to detect abnormal machine operation. Adjustable startup delay and hysteresis help prevent unwanted switching during machine startup. This makes the device suitable for conveyors, rotating machines and other motion applications.
The device provides a relay output and transistor output for integration into control circuits. LEDs indicate power, input, output and release conditions. The integrated wide-range supply simplifies installation where different supply voltages are available. Plug-in screw terminals provide convenient wiring. Its DIN-rail design allows simple control-panel installation.
Speed monitoring
Underspeed detection
Overspeed detection
Standstill monitoring capability
One pulse input
PNP input
Relay output
Transistor output
Adjustable speed threshold
Adjustable hysteresis
Adjustable startup delay
Wide-range AC/DC supply
24 V sensor supply
LED indication
DIN-rail mounting
Compact housing
Conveyor belts
Worm gears
Elevators
Rotating machinery
Fans
Motors
Material handling
Machine speed monitoring
Standstill detection
Drive monitoring
Industrial automation
Motion control
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | DD0203 |
| Product Type | Speed Monitor |
| Product Family | D200 |
| Input Type | PNP pulse input |
| Pulse Inputs | 1 |
| Setting Range | 0.1...10 Hz / 10...1000 Hz |
| Supply Voltage AC | 110...240 V AC |
| Supply Voltage DC | 24...27 V DC |
| Sensor Supply | Approx. 18.5...30 V DC |
| Sensor Current | Up to 100 mA |
| Relay Output | 1 |
| Transistor Output | 1 |
| Relay Contact Rating | Up to 4 A |
| Switching Voltage | 10...30 V DC for transistor |
| Monitoring | Overspeed / underspeed |
| Startup Delay | Adjustable |
| Hysteresis | Adjustable |
| Indication | LED |
| Housing | Plastic |
| Mounting | DIN rail |
| Protection | IP20 |
| Dimensions | Approx. 93 × 25.4 × 109.1 mm |
| Connection | Plug-in screw terminals |
| Ambient Temperature | -25...60 °C |
| Application | Rotational speed monitoring |
