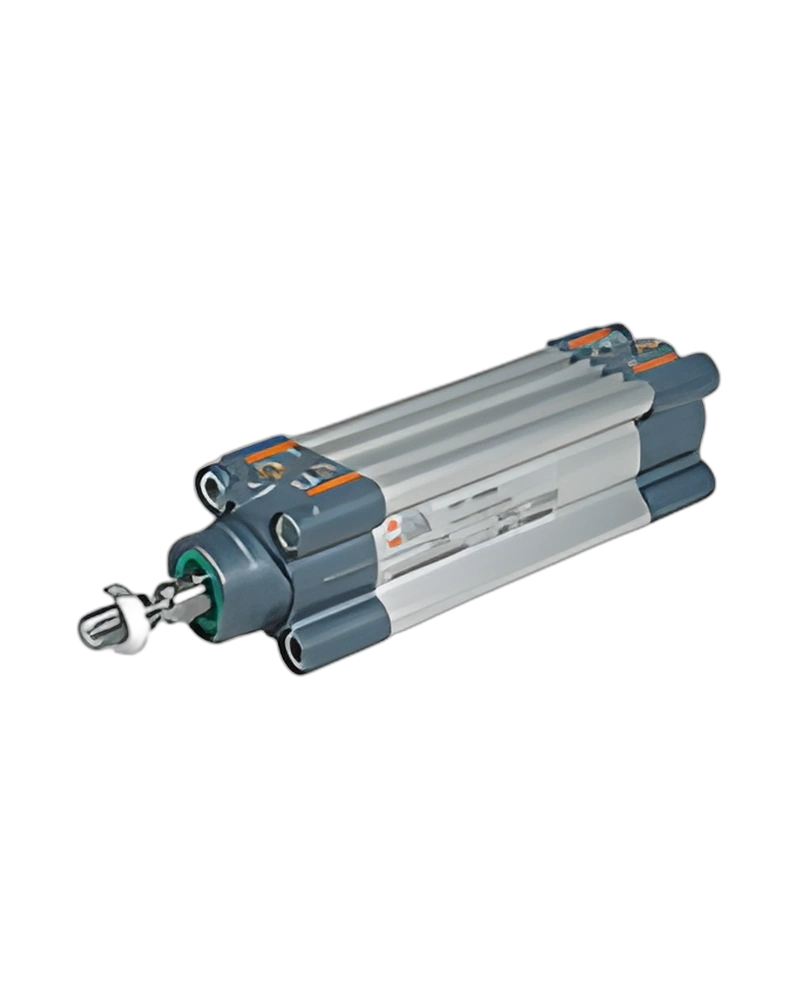

Cylinder Series ISO 15552 Series 3 Configurator is a Metal Work solution developed for pneumatic automation and compressed-air system integration. The family is intended to provide dependable motion, control, connection, flow management or valve functionality according to the selected configuration. Its catalogue structure makes it possible to select the relevant dimensions, interfaces and execution details for the application.
Standard: ISO 15552 Typical bore range on the family: 32–125 mm for standard/Type A/Series 3 variants Maximum stroke: up to 2800 mm on standard families. The construction and configuration are matched to the product family so that the component can be integrated into compact machines, automated production equipment and industrial pneumatic circuits.
Standard: ISO 15552 Typical bore range on the family: 32–125 mm for standard/Type A/Series 3 variants Maximum stroke: up to 2800 mm on standard families Minimum stroke: 1 mm on standard families Double-acting and selected single-acting executions are available Cushioned and non-cushioned executions are available where specified Seal options include NBR, polyurethane and FKM/FPM; special low-temperature/rod-seal configurations are available The family includes single-rod, through-rod, opposed, tandem and rod-lock executions depending on variant
The available performance depends on the selected configuration, including bore or connection size, execution, sealing arrangement, actuation, flow path and mounting interface. The official Metal Work product/configurator page provides the selectable technical parameters and the associated CAD and documentation resources for this family.
Installation options are designed around the relevant pneumatic interface for the series. Depending on the product, this can include threaded ports, push-in tube connections, manifold or base mounting, sensor integration, actuator mounting or modular valve-bank connections. Accessories and compatible components are available through the corresponding Metal Work catalogue section.
This product family is suited to industrial pneumatic automation where controlled movement, directional control, flow regulation, air preparation, connection, sensing or machine safety is required. The exact application should be matched to the selected configuration and its published operating limits.
The official Metal Work product page provides access to configuration tools, technical information, CAD resources, manuals and applicable declarations or certificates where available. Configuration should be completed against the required bore, stroke, connection, pressure, temperature, sealing, electrical or mounting requirements before ordering.
For correct selection, compare the required operating pressure, temperature, dimensions, connection type, flow or motion requirement, sealing material, actuation method and mounting arrangement with the options available for the specific family. This approach keeps the selected component aligned with the machine design and the published technical limits.
| Feature | Specification |
|---|---|
| Standard | ISO 15552 |
| Typical bore range on the family | 32–125 mm for standard/Type A/Series 3 variants |
| Maximum stroke | up to 2800 mm on standard families |
| Minimum stroke | 1 mm on standard families |
| Execution | Double-acting and selected single-acting executions are available |
| Cushioning | Cushioned and non-cushioned executions are available where specified |
| Seals | Seal options include NBR, polyurethane and FKM/FPM; special low-temperature/rod-seal configurations are available |
| Available Executions | The family includes single-rod, through-rod, opposed, tandem and rod-lock executions depending on variant |
