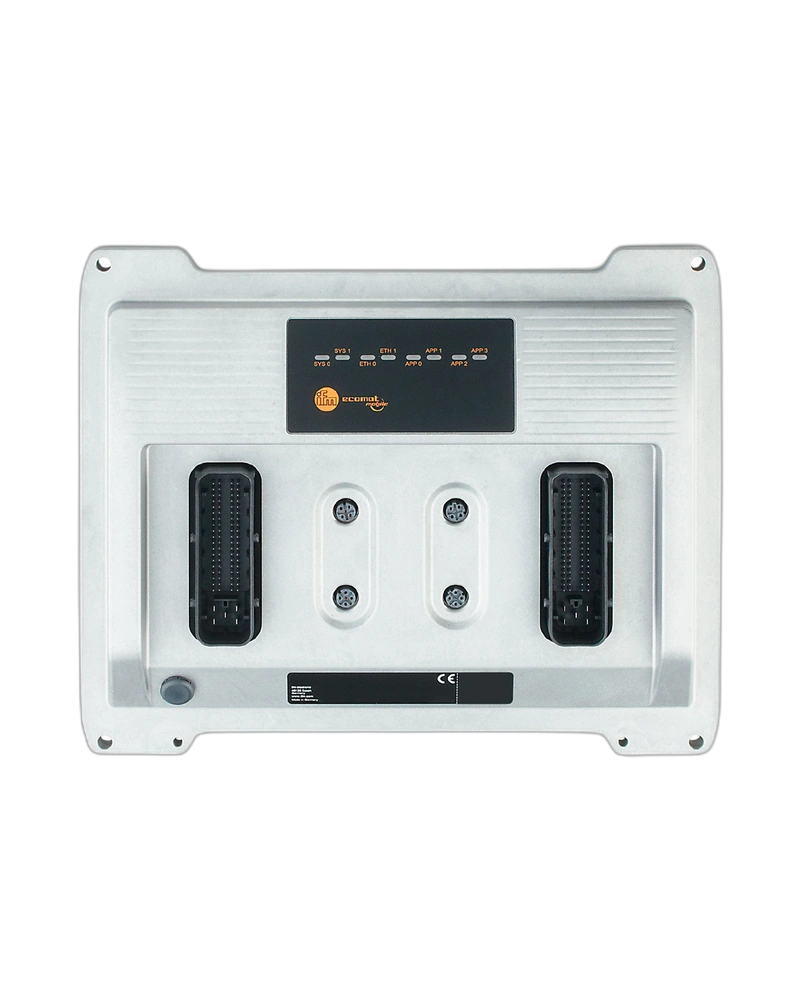

The IFM CR721S is a high-capacity programmable controller designed for complex mobile-machine automation. It provides 124 total inputs and outputs for extensive machine control requirements. The controller combines powerful processing with multiple communication interfaces. It supports standard and safety-related machine functions. The rugged IP67 construction allows reliable operation in demanding environments. IFM identifies the CR721S as an ecomatController/124 model.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The CR721S is suitable for machines with a large number of electrical and hydraulic functions. Its high I/O count allows numerous sensors and actuators to be connected. This reduces the requirement for multiple distributed controllers. Configurable I/O provides flexibility for different machine designs. The controller can therefore be used as a central control unit for complex mobile equipment.
Multiple CAN interfaces allow connection to machine ECUs and CAN networks. Ethernet provides additional communication and diagnostic capabilities. RS-232 is available for serial communication requirements. The controller supports IEC 61131-3 programming through the CODESYS environment. These capabilities provide a flexible platform for OEM machine development.
124 total I/O
32-bit controller
4 CAN interfaces
Ethernet
RS-232
Safety controller capability
CODESYS programming
IP67 protection
Large mobile machines
Construction equipment
Agricultural machinery
Forestry equipment
Cranes
Material handling systems
Off-highway vehicles
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | CR721S |
| Product Family | ecomatController/124 |
| Total I/O | 124 |
| CAN Interfaces | 4 |
| Ethernet | 1 |
| RS-232 | 1 |
| Processor | 32-bit |
| Programming | IEC 61131-3 / CODESYS |
| Safety | Safety controller |
| Protection | IP67 |
| Operating Temperature | -40...85 °C |
| Application | Mobile automation |
