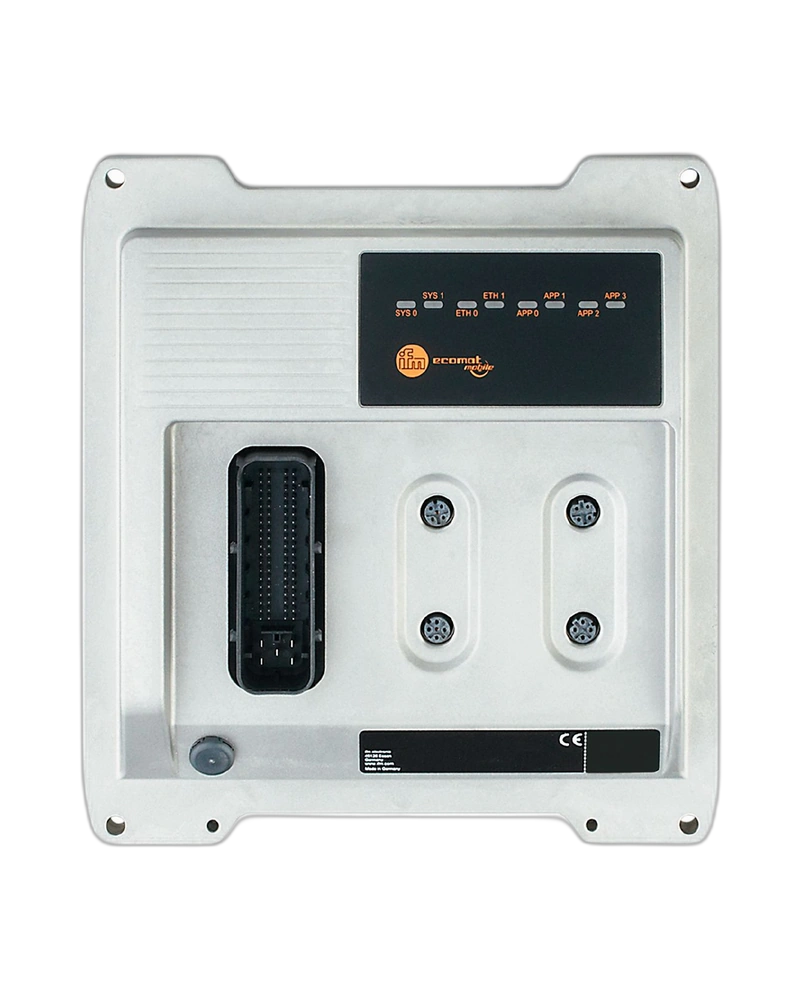

The IFM CR710S is a high-performance programmable controller for mobile-machine automation. It provides a total of 37 configurable inputs and outputs for standard and safety-related control functions. The controller uses a 32-bit triple-core architecture and supports CAN and Ethernet communication. It can be programmed using IEC 61131-3 and CODESYS 3.5. The IP67-rated design makes it suitable for harsh mobile-machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The CR710S combines high processing performance with flexible I/O configuration. Its 37 I/O channels can be used for digital, analogue, frequency, resistor and output functions. This flexibility allows one controller to handle multiple machine-control requirements. The controller is suitable for both standard automation and safety-related functions. It is designed to simplify control-system architecture in mobile machinery.
The controller provides multiple CAN interfaces for machine-network communication. Ethernet provides additional connectivity for programming, diagnostics and higher-level communication. The combination of CAN and Ethernet makes it suitable for complex mobile automation systems. It can communicate with sensors, actuators, ECUs and other controllers. These interfaces provide flexible options for machine networking.
37 total inputs/outputs
32-bit triple-core processor
CAN communication
Ethernet interface
IEC 61131-3 programming
CODESYS 3.5 support
Safety controller capability
IP67 protection
8...32 V DC supply
Construction machines
Agricultural machinery
AGV systems
Off-highway vehicles
Mobile hydraulic systems
Machine automation
Safety control systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | CR710S |
| Product Family | ecomatController/37 |
| Supply Voltage | 8...32 V DC |
| Total I/O | 37 |
| Digital Inputs | 20 |
| Analogue Inputs | 8 |
| Frequency Inputs | 8 |
| Resistor Inputs | 4 |
| Digital Outputs | 16 |
| Analogue Outputs | 1 |
| H-Bridge Outputs | 2 |
| CAN Interfaces | 4 |
| Ethernet | 1 |
| RS-232 | 1 |
| Programming | IEC 61131-3 / CODESYS 3.5 |
| Protection | IP67 |
| Operating Temperature | -40...85 °C |
| Application | Mobile automation |
