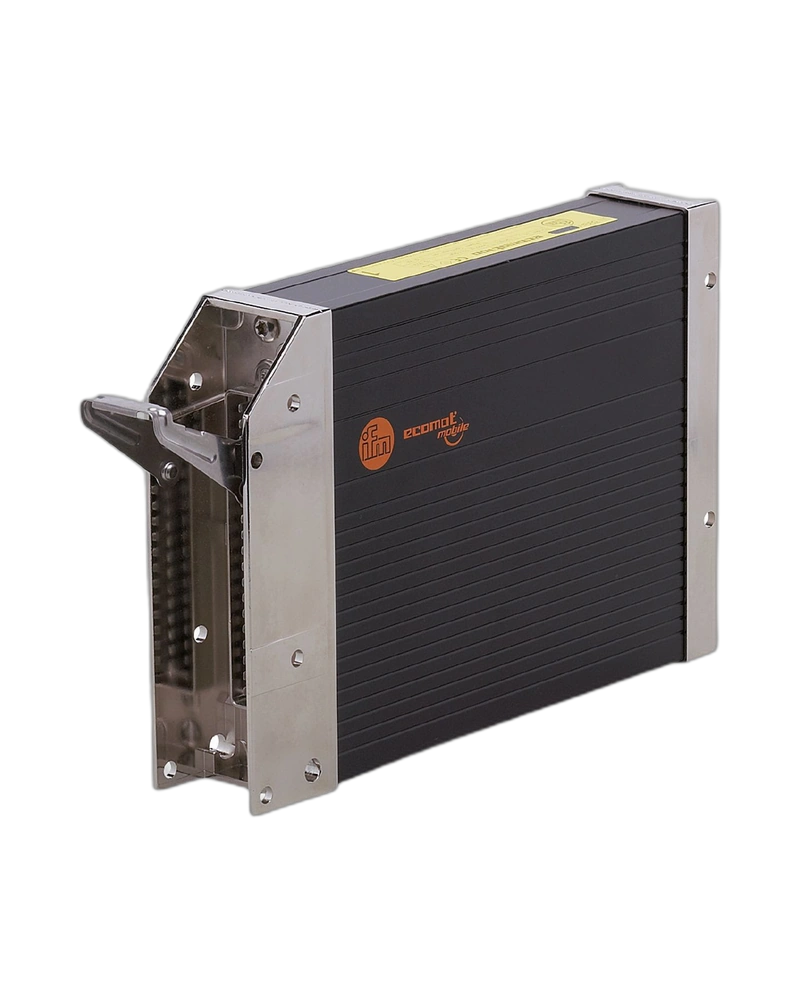

The IFM CR7021 is a programmable safety controller designed for safety-related control functions in mobile machines. It provides up to 40 configurable input/output channels and supports SIL CL 2 according to IEC 62061 and PL d according to ISO 13849-1. The controller provides two CAN interfaces and an RS-232 interface for machine communication and system integration. Its rugged IP67 metal housing and wide 10...32 V DC supply range make it suitable for demanding mobile automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The CR7021 is designed to implement central or decentralised safety control systems in mobile machinery. Its configurable I/O architecture allows different sensors and actuators to be connected according to the machine's functional requirements.
The controller is designed for safety applications with SIL CL 2 according to IEC 62061 and PL d according to ISO 13849-1. It also incorporates safety monitoring functions such as watchdog monitoring, undervoltage monitoring, program/system checksum testing and temperature monitoring.
The CR7021 supports up to 40 total configurable I/O channels. Depending on configuration, it provides digital, analogue and frequency inputs along with digital, PWM-I, PWM and H-bridge output functions.
Two CAN interfaces provide communication with other controllers and mobile-machine systems. CANopen and SAE J1939-based communication makes the controller suitable for integration into vehicle and mobile automation networks.
The CR7021 uses a closed, screened metal housing with flange mounting and IP67 protection when the connector is properly inserted and individually sealed. It is designed for demanding mobile-machine environments with an operating temperature range around -40...75 °C depending on load.
Programmable safety controller
Up to 40 configurable I/O channels
SIL CL 2 according to IEC 62061
PL d according to ISO 13849-1
Category 3 safety architecture
CANopen Safety
2 CAN interfaces
RS-232 interface
Configurable digital inputs
Analogue voltage/current inputs
Frequency inputs
Digital outputs
PWM outputs
PWM-I outputs
H-bridge outputs
Watchdog monitoring
Undervoltage monitoring
Program checksum monitoring
System checksum monitoring
Overtemperature monitoring
IP67 protection
Metal housing
Mobile machine safety systems
Construction machinery
Agricultural equipment
Material handling machines
Mobile hydraulic machinery
Special-purpose vehicles
Off-highway machinery
Safety monitoring systems
Machine shutdown functions
Centralised safety control
Decentralised safety control
| Specification | Details |
|---|---|
| Product Code | CR7021 |
| Product Family | R360 SafetyController |
| Product Type | Programmable Safety Controller |
| Total I/O | Up to 40 |
| Maximum Inputs | Up to 28 |
| Maximum Outputs | Up to 24 |
| Digital Inputs | Up to 40 depending on configuration |
| Analogue Inputs | Up to 8 |
| Frequency Inputs | Up to 8 |
| Digital Outputs | Up to 24 |
| PWM-I Outputs | Up to 8 |
| PWM Outputs | Up to 12 |
| H-Bridge Outputs | 2 |
| Safety Integrity Level | SIL CL 2 |
| Performance Level | PL d |
| Safety Standard | IEC 62061 |
| Safety Standard | ISO 13849-1 |
| Safety Category | Category 3 |
| Safety Communication | CANopen Safety |
| CAN Interfaces | 2 |
| CAN Interface Standard | CAN 2.0 A/B, ISO 11898 |
| CAN Baud Rate | 50 kbit/s...1 Mbit/s |
| CAN Interface 1 | CANopen / CiA communication |
| CAN Interface 2 | SAE J1939 / free protocol |
| Serial Interface | RS-232 C |
| RS-232 Baud Rate | 9.6...57.6 kbit/s |
| Operating Voltage | 10...32 V DC |
| Maximum Voltage | 36 V DC for limited duration |
| Current Consumption | ≤160 mA at 24 V DC without external load |
| Processor | 16-bit CMOS microcontroller C167CS |
| Processor Frequency | 40 MHz |
| Housing | Closed, screened metal housing |
| Protection Rating | IP67 with suitable connector sealing |
| Dimensions | 153 × 226 × 43 mm |
| Mounting | Screw mounting with 4 × M5 |
| Weight | Approx. 1.2 kg |
| Operating Temperature | -40...75 °C depending on load |
| Storage Temperature | -40...85 °C |
| Connector | 55-pin connector |
| Programming | CoDeSys 2.3 |
| Status Display | Three-colour LED |
| Device Monitoring | Watchdog, undervoltage and temperature monitoring |
| Program Monitoring | Program and system checksum |
| Safety Shutdown | Additional switch-off monitoring for safety outputs |
