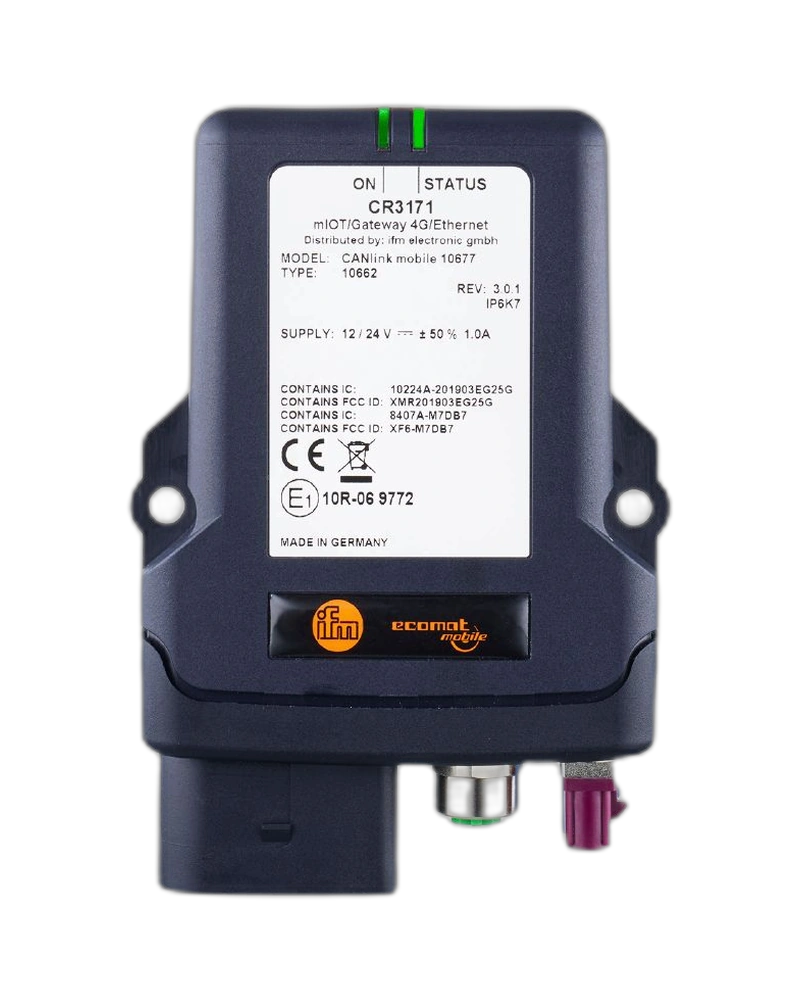

The IFM CR3171 is an Ethernet LTE/GNSS radio modem and mobile IoT gateway designed for connecting mobile machines to cloud and remote systems. It combines 4G/LTE, GNSS, WLAN, Bluetooth, Ethernet and CAN communication in one compact unit. Four analogue inputs and a configurable digital output support machine data acquisition and control functions. Its rugged IP6K7 design and -40 to +75 °C operating temperature make it suitable for demanding mobile automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The CR3171 provides cellular connectivity for machine-to-cloud and remote communication applications. It supports multiple 2G, 3G and 4G/LTE frequency bands, allowing it to be deployed across different mobile network environments. An integrated eSIM simplifies mobile network connectivity.
The device provides an M12 D-coded Ethernet interface together with multiple CAN connections. This allows machine controllers, sensors and other electronic systems to exchange operational information with remote applications.
Integrated GNSS enables positioning and location-related applications, while WLAN and Bluetooth provide additional local communication options. The device can therefore function as a flexible communication hub for connected mobile machinery.
The CR3171 operates from 6...36 V DC and is designed for harsh mobile-machine environments. With IP6K7 protection when suitable connectors or protective caps are installed, it provides strong resistance against environmental exposure.
4G/LTE Cat 4 communication
Integrated GNSS
Integrated WLAN
Bluetooth connectivity
Ethernet communication through M12 connector
Multiple CAN interfaces
4 analogue inputs
1 digital output
Integrated eSIM
3-axis acceleration measurement
3-axis inclination / yaw-rate measurement
IP6K7 protection
Wide 6...36 V DC supply range
-40...75 °C operating temperature
512 MB DDR3 RAM
2.5 GB Flash memory
Mobile machine telematics
Fleet management
Machine-to-cloud connectivity
Construction machinery
Agricultural machinery
Remote equipment monitoring
Vehicle positioning
Mobile machine diagnostics
Industrial IoT applications
Connected vehicle systems
| Specification | Details |
|---|---|
| Product Code | CR3171 |
| Product Type | Ethernet LTE/GNSS Radio Modem |
| Application | mIOT/Gateway 4G/Ethernet |
| Operating Voltage | 6...36 V DC |
| Nominal Voltage | 12 / 24 V DC |
| Current Consumption | <290 mA at 24 V; sleep mode ≤1 mA |
| Analogue Inputs | 4 |
| Analogue Input Range | 0...15 V |
| Analogue Resolution | 12 Bit |
| Digital Outputs | 1 |
| Digital Output Voltage | 6...36 V DC |
| Digital Output Current | 500 mA |
| CAN Interfaces | Multiple CAN interfaces via Micro Timer II |
| Ethernet | 1 × M12 D-coded |
| LTE | 4G/LTE Cat 4 |
| WLAN | IEEE 802.11 a/b/g/n |
| Bluetooth | Bluetooth 2.1 EDR / Bluetooth 5.0 |
| GNSS | Integrated |
| eSIM | Integrated |
| Acceleration Measurement | 3-axis, ±16 g |
| Acceleration Resolution | 16 Bit |
| Yaw Rate Measurement | 3-axis measurement |
| Yaw Rate Range | ±250 °/s |
| Protection | IP6K7 with mounted connectors/protective caps |
| Ambient Temperature | -40...75 °C |
| Processor | Dual Core ARM Cortex-A7, 650 MHz |
| RAM | 512 MB DDR3 |
| Flash Memory | 2.5 GB |
| FRAM | 32 KB |
| Real-Time Clock | Yes, battery buffered |
| Weight | Approx. 254 g |
| Ethernet Connector | M12, D-coded |
| GNSS Connector | FAKRA C |
| Mobile Network Connector | FAKRA D |
| Main Connector | 14-pin Micro Timer II |
