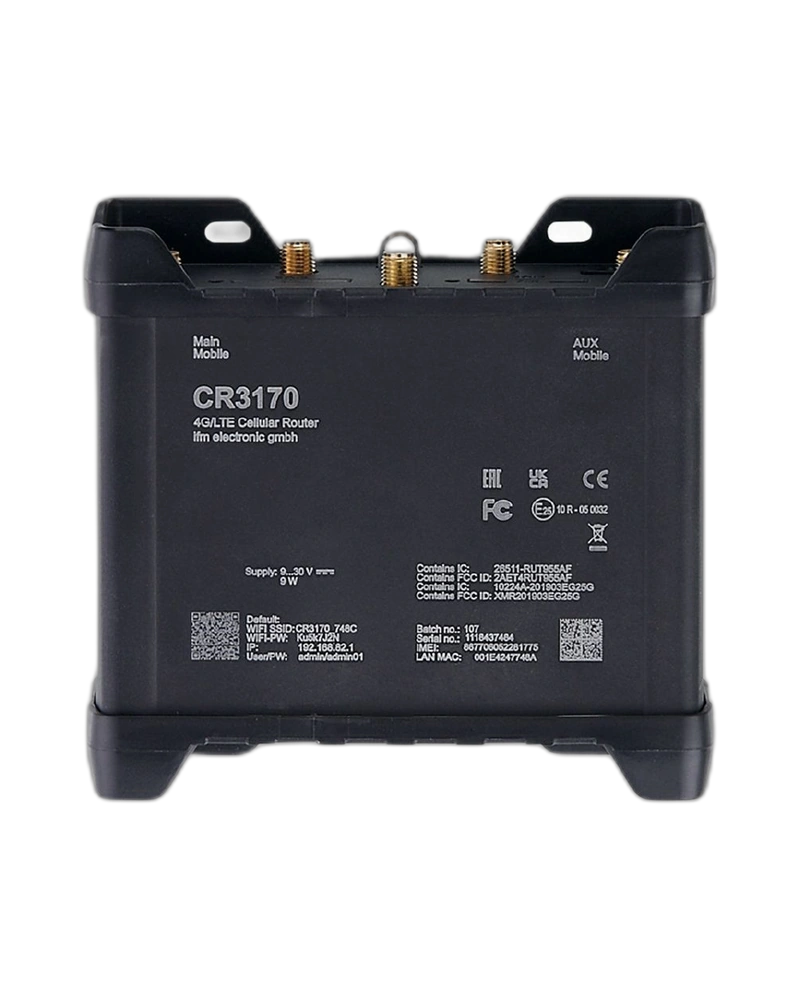

The IFM CR3170 is a 4G/LTE cellular router designed for reliable wireless communication and remote connectivity of mobile machines. It combines LTE, GNSS, Ethernet, WLAN, RS232 and RS485 communication interfaces in a compact industrial device. The router supports machine data and location transmission to cloud systems and enables remote diagnostics and software updates. It is suitable for mobile automation and industrial IoT applications requiring dependable connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The CR3170 provides cellular connectivity for mobile machines operating in remote or distributed locations. It can transmit machine information and positioning data to cloud-based systems, helping operators monitor equipment remotely. The router supports wireless communication while maintaining connectivity between field equipment and higher-level systems.
Integrated GNSS connectivity enables machine location information to be collected along with operational data. This makes the router suitable for applications where fleet tracking, machine positioning and location-based monitoring are required.
The CR3170 supports Ethernet, WLAN, RS232 and RS485 interfaces for connecting different types of industrial equipment. Four RJ45 LAN/WAN connections provide Ethernet connectivity, while separate interfaces are available for serial communication and wireless networking.
The router supports direct connectivity for remote diagnosis, debugging and software updates. Data buffering helps maintain communication when radio connections become unstable, making it useful for machines operating in challenging field environments.
4G/LTE cellular communication
Integrated GNSS functionality
IEEE 802.11 b/g/n WLAN
Four RJ45 LAN/WAN interfaces
RS232 and RS485 communication
USB interface for peripherals
Machine and position data transmission
Remote diagnostics and debugging
Data buffering during unstable radio connections
Operating temperature from -40 to +75 °C
Compact aluminium housing
Mobile machine remote monitoring
Fleet and vehicle tracking
Industrial IoT connectivity
Remote machine diagnostics
Construction equipment
Agricultural machinery
Material handling equipment
Connected mobile machines
| Specification | Details |
|---|---|
| Product Code | CR3170 |
| Product Type | LTE/GNSS/Ethernet Router |
| Application | 4G/LTE Cellular Router |
| Supply Voltage | 9...30 V DC |
| Nominal Voltage | 12 / 24 V DC |
| Power Consumption | 2 W typical; 7 W maximum |
| Digital Inputs | 3 |
| Digital Outputs | 2 |
| Relay Outputs | 1 |
| WLAN Standard | IEEE 802.11 b/g/n |
| WLAN Frequency | 2.4 GHz |
| USB | USB A |
| GNSS Connection | 1 × SMA |
| LTE Connection | 2 × SMA |
| WLAN Connection | 2 × SMA |
| LAN/WAN | 4 × RJ45 |
| RS232 | 1 × SUB-D |
| RS485 | 1 × |
| Operating Temperature | -40...75 °C |
| Protection Rating | IP30 |
| Processor | Atheros Wasp, MIPS 74Kc, 550 MHz |
| RAM | 128 MB DDR2 |
| Dimensions | 100 × 109 × 50 mm |
| Weight | 423.2 g |
| Housing Material | Aluminium |
| Display | Status, signal strength, LAN and supply LEDs |
