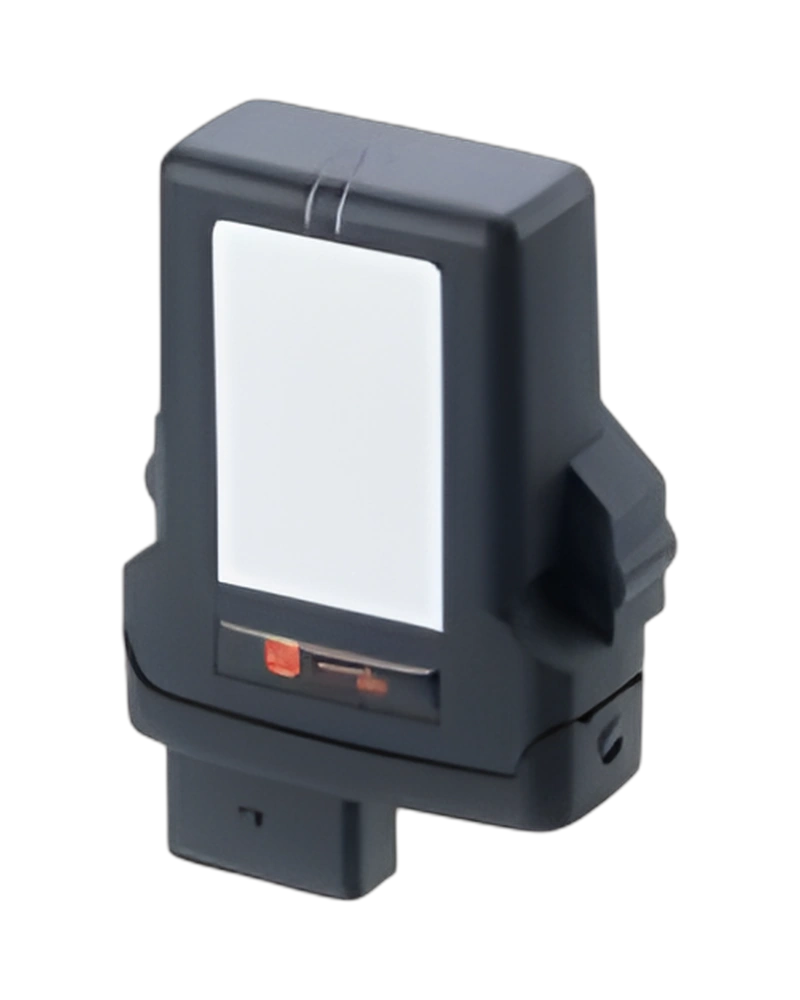

The IFM CR3146 is a CAN LTE/GNSS radio modem designed as a 4G mobile IoT gateway for connected mobile machines. It combines cellular communication, GNSS positioning, CAN communication and an additional digital output. The integrated cellular modem supports GSM, GPRS, EDGE, UMTS, HSPA, 3G and 4G LTE Cat-4 technologies. GNSS functionality supports location-related machine applications. Its IP67 housing and -40...85 °C operating range make it suitable for demanding mobile environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The CR3146 provides cellular connectivity between a mobile machine and remote IoT or cloud systems. It supports 4G LTE Cat-4 as well as earlier cellular technologies for broader network compatibility. The integrated SIM and antenna arrangement simplifies installation. Machine information can be transmitted through the mobile network to remote applications. This allows equipment operators to monitor machines without requiring a local wireless network. It is suitable for fleet management and connected-machine applications.
Integrated GNSS functionality provides positioning information for mobile equipment. The device can be used for location tracking and fleet-monitoring applications. It also includes acceleration measurement with three axes and a ±16 g measurement range. Vehicle inclination and yaw-rate measurement functions are also provided. These measurement capabilities can provide additional information about machine movement. Such data can be useful for advanced telematics and machine monitoring systems.
The CR3146 includes a CAN interface for communication with the machine control network. CAN 2.0 A/B according to ISO 11898 is supported. A digital output provides an additional machine interface with a 500 mA permanent current rating. The device operates from 6...36 V DC and includes an integrated USB interface for firmware updates. IP67 protection and -40...85 °C operation make it suitable for harsh mobile-machine conditions.
4G LTE Cat-4 connectivity
GSM/GPRS/EDGE support
UMTS/HSPA/3G support
Integrated GNSS
CAN communication
Integrated SIM
Integrated antenna
1 digital output
3-axis acceleration measurement
3-axis inclination/yaw measurement
USB firmware update
IP67 protection
-40...85 °C operation
Fleet management
Mobile machine telematics
Construction equipment
Agricultural machinery
Vehicle tracking
Remote machine monitoring
Machine-to-cloud connectivity
CAN data transmission
IoT gateway applications
Remote diagnostics
| Specification | Details |
|---|---|
| Product Code | CR3146 |
| Product Type | CAN LTE/GNSS Radio Modem |
| Application | mIoT / Gateway 4G |
| Supply Voltage | 6...36 V DC |
| Nominal Voltage | 12 / 24 V DC |
| Digital Outputs | 1 |
| Output Voltage Range | 6...36 V DC |
| Output Current | 500 mA |
| Output Resolution | 16 Bit |
| CAN Interfaces | 1 |
| CAN Standard | CAN 2.0 A/B, ISO 11898 |
| Mobile Network | GSM / GPRS / EDGE / UMTS / HSPA / 3G / 4G LTE |
| LTE Category | LTE Cat-4 |
| LTE Bands | 700 / 750 / 800 / 850 / 900 / 1700 / 1800 / 1900 / 2100 / 2600 MHz depending on band |
| SIM | Onboard SIM |
| GPS/GNSS | Integrated |
| Antenna | Integrated |
| USB | Micro-AB |
| USB Function | Firmware update |
| Acceleration Measurement | 3-axis |
| Acceleration Range | ±16 g |
| Acceleration Resolution | 16 Bit |
| Acceleration Sampling | 10 Hz |
| Vehicle Yaw Measurement | 3-axis |
| Yaw Rate Range | ±250 °/s |
| Yaw Rate Resolution | 16 Bit |
| Yaw Rate Sampling | 10 Hz |
| Protection Rating | IP67 |
| Operating Temperature | -40...85 °C |
| Standards | EN 61000-6-2 / EN 61000-6-3 / IEC 62368-1 / UN/ECE-R10 / EN ISO 13766-1 / ISO 7637-2 |
| Application | Mobile IoT / telematics / gateway |
