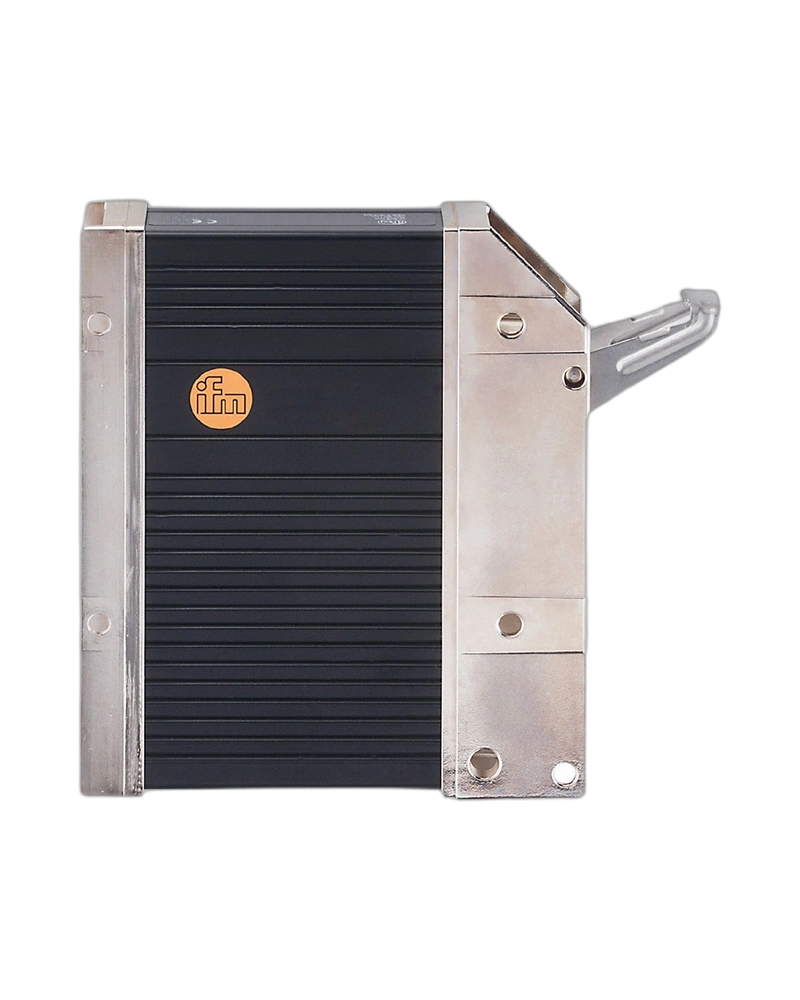

The IFM CR2530 is a programmable SmartController designed for complex control functions in mobile machines and vehicles. It provides 32 configurable I/O channels consisting of 16 digital inputs, analogue and frequency inputs, and multiple output functions. PWM and PWM-I outputs support flexible actuator control. Two CAN interfaces enable communication with controllers and mobile-machine networks. The controller can be freely programmed according to IEC 61131-3 using CODESYS 2.3.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The CR2530 provides a flexible control platform for mobile automation applications. Its 32 I/O channels allow sensors and actuators to be connected directly to the controller. The inputs support digital, analogue, frequency and resistor measurement functions. Outputs can be configured for digital, analogue, PWM and current-controlled operation. This enables the controller to perform both signal processing and machine control. CODESYS programming allows application-specific control logic to be developed.
The controller includes 16 digital inputs together with four analogue, four frequency and two resistor inputs. Analogue inputs support current and voltage measurement for different types of machine sensors. Sixteen digital outputs provide direct switching functionality. Twelve PWM outputs and two PWM-I outputs support proportional actuator control. Two analogue voltage outputs provide additional control possibilities. This combination provides considerable flexibility for mobile-machine applications.
Two CAN interfaces enable communication with other electronic control units and machine networks. CAN communication supports integration with mobile-machine systems and peripheral modules. The controller is powered from an 8...32 V DC supply for 12 V and 24 V vehicle systems. Parameterisation allows input and output functions to be adapted to the application. The controller is designed for complex control functions in demanding mobile environments.
32 total I/O channels
16 digital inputs
4 analogue inputs
4 frequency inputs
2 resistor inputs
16 digital outputs
2 analogue outputs
12 PWM outputs
2 PWM-I outputs
2 CAN interfaces
IEC 61131-3 PLC functionality
CODESYS 2.3 programming
Construction machinery
Agricultural machinery
Mobile hydraulic systems
Off-highway vehicles
Vehicle automation
Engine control
Valve control
Actuator control
Complex machine automation
| Specification | Details |
|---|---|
| Product Code | CR2530 |
| Product Family | R360 SmartController |
| Total I/O | 32 |
| Digital Inputs | 16 |
| Analogue Inputs | 4 |
| Frequency Inputs | 4 |
| Resistor Inputs | 2 |
| Digital Outputs | 16 |
| Analogue Outputs | 2 |
| Analogue Voltage Output | 0.2...10 V |
| PWM Outputs | 12 |
| PWM-I Outputs | 2 |
| Analogue Current Input | 0...20 mA |
| Analogue Voltage Input | 0...32 V |
| Supply Voltage | 8...32 V DC |
| CAN Interfaces | 2 |
| Programming | CODESYS 2.3 |
| PLC Standard | IEC 61131-3 |
| Parameterisation | Input/output functions |
| MTTF | Approx. 91 years |
| Weight | Approx. 1129.5 g |
| Housing | Rectangular |
| Application | Mobile machines |
