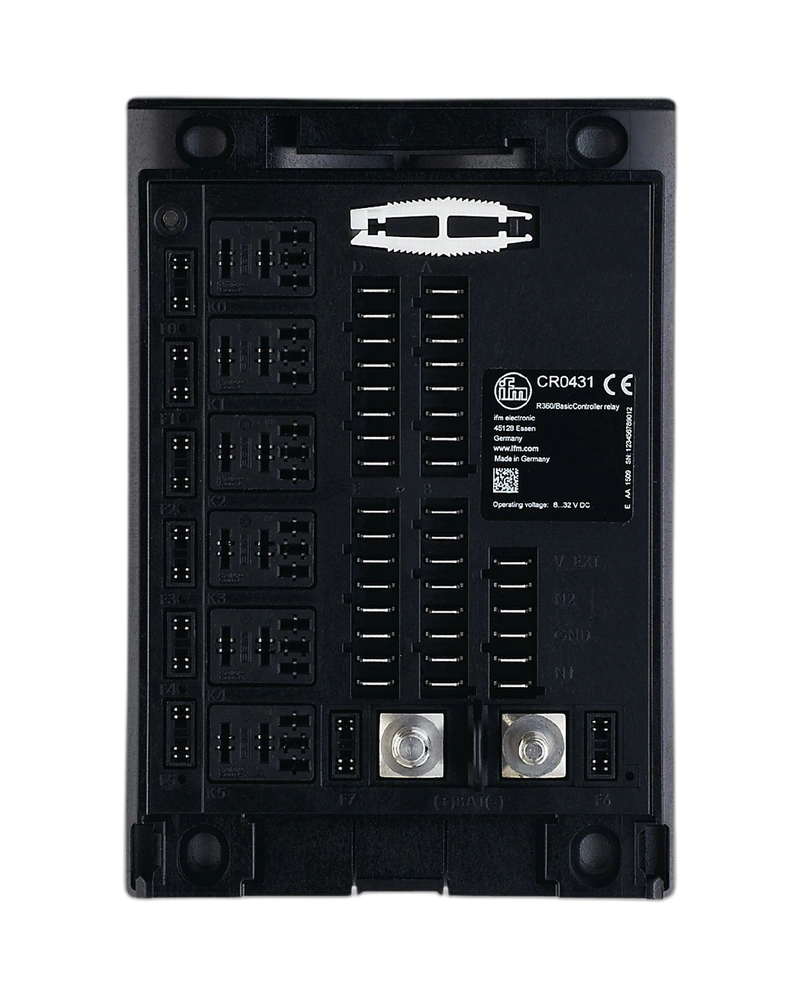

CR0431 is an IFM R360 BasicController relay designed for programmable control of mobile-machine functions using relay outputs. It combines compact programmable control with relay-based switching for electrical loads. The controller is suitable for compact construction machines, attachments, mini vehicles and special functions where reliable relay control and programmable automation are required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
CR0431 is a compact programmable controller designed for mobile working machines. IFM describes it as a BasicController relay that can replace conventional relay logic while also supporting more demanding control functions. It provides a programmable alternative for compact machine applications.
The controller provides relay outputs for switching connected electrical loads. Relay-based outputs are suitable for machine functions where robust switching and electrical isolation are required. The design allows conventional relay functions to be combined with programmable machine-control logic.
CR0431 can be programmed using CODESYS and supports common CODESYS programming languages. Its two CAN interfaces support communication with connected BasicDisplay units, additional BasicController modules or engine controllers, with CANopen and J1939 support.
The controller is designed for compact construction machines, attachments, mini vehicles and special functions. Its compact plastic housing, programmable architecture and relay outputs make it suitable for replacing conventional relay logic while adding programmable control capabilities.
R360 BasicController relay
8 inputs
6 relay outputs
Programmable controller
CODESYS programming
Two CAN interfaces
CANopen support
SAE J1939 support
Compact housing
Relay-based load control
Compact construction machines
Machine attachments
Mini vehicles
Special-purpose machinery
Relay-control applications
Machine automation
Electrical load switching
Vehicle control
Mobile equipment
Programmable relay logic
| Specification | Details |
|---|---|
| Product code | CR0431 |
| Product family | R360 |
| Controller type | BasicController relay |
| Inputs | 8 |
| Outputs | 6 relay outputs |
| Relay type | Micro relay |
| Maximum total relay current | 60 A |
| Operating voltage | 8...32 V DC |
| CAN interfaces | 2 |
| CAN protocols | CANopen, SAE J1939, free CAN |
| Programming | CODESYS V2.3 |
| Processor | PowerPC, 50 MHz |
| Data memory | SRAM 592 kB / Flash 1536 kB |
| Housing | Plastic |
| Operation temperature | -40...75 °C |
