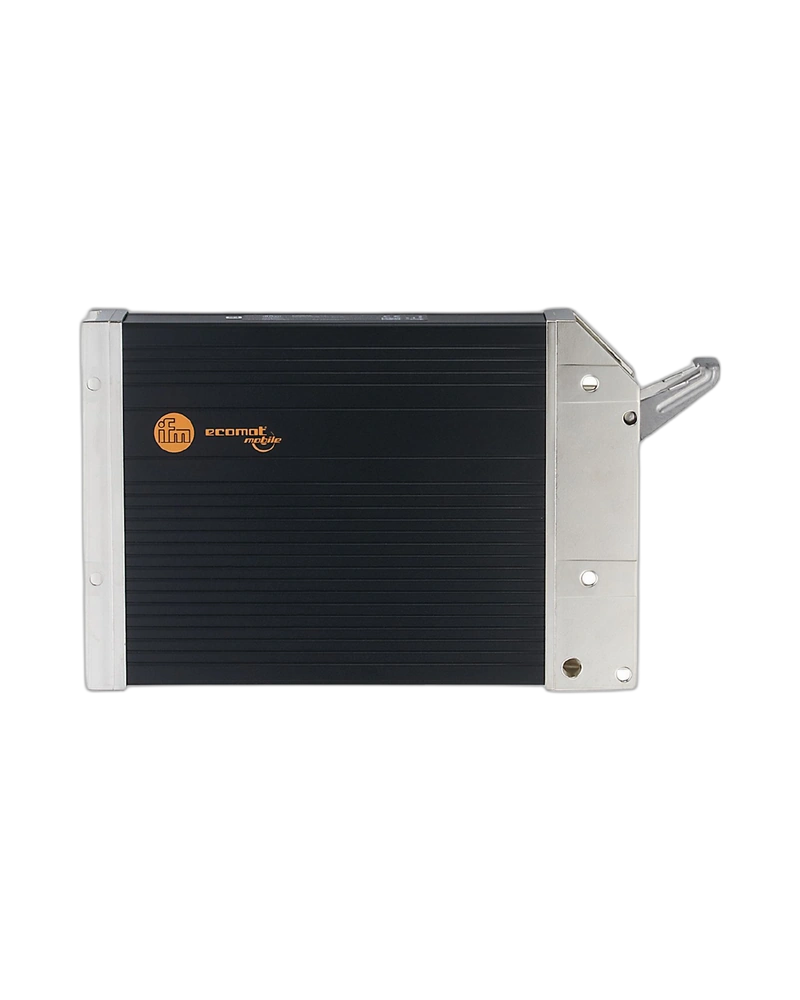

CR0033 is an IFM R360 32-bit programmable controller designed for mobile-machine automation. It provides 32 total I/O with digital, analogue, frequency and resistance input functions, together with configurable digital, PWM and H-bridge outputs. The controller features a robust IP67 housing and multiple communication interfaces for reliable integration into mobile equipment control systems
Explore performance details, construction highlights, applications, and technical information in one clear overview.
CR0033 is a versatile 32-bit controller from the IFM R360 family, developed for control applications in mobile machines. It combines configurable I/O functions, communication interfaces and rugged construction to support automation tasks in demanding operating environments.
CR0033 provides 32 total I/O. Its input section includes 16 digital inputs, 12 analogue U/I inputs, 12 frequency inputs and four resistance inputs. The output section includes 16 digital, 16 PWM-I, 16 PWM and two H-bridge functions.
The controller provides four CAN interfaces, one USB interface and one RS-232 interface. These interfaces support communication with distributed machine components, sensors, actuators, service tools and other control systems within mobile automation applications.
The IP67 metal housing provides protection suitable for demanding mobile-machine environments. The combination of analogue, frequency and resistance inputs with configurable outputs allows CR0033 to handle diverse sensing and actuator-control requirements across mobile equipment applications.
32-bit R360 controller
32 total I/O
16 digital inputs
12 analogue U/I inputs
12 frequency inputs
4 resistance inputs
16 digital outputs
16 PWM-I outputs
16 PWM outputs
2 H-bridge outputs
4 CAN interfaces
USB interface
RS-232 interface
IP67 protection
Mobile-machine control
Construction machinery
Agricultural equipment
Special-purpose vehicles
Vehicle automation
Hydraulic control
Actuator control
Machine monitoring
Mobile equipment systems
Industrial vehicle automation
| Specification | Details |
|---|---|
| Product code | CR0033 |
| Product family | R360 ClassicController |
| Controller type | 32-bit programmable controller |
| Total I/O | 32 |
| Digital inputs | 16 |
| Analogue inputs | 12 x U/I |
| Frequency inputs | 12 |
| Resistance inputs | 4 |
| Digital outputs | 16 |
| PWM-I outputs | 16 |
| PWM outputs | 16 |
| H-bridge | 2 |
| CAN interfaces | 4 |
| USB | 1 |
| RS-232 | 1 |
| Housing protection | IP67 |
