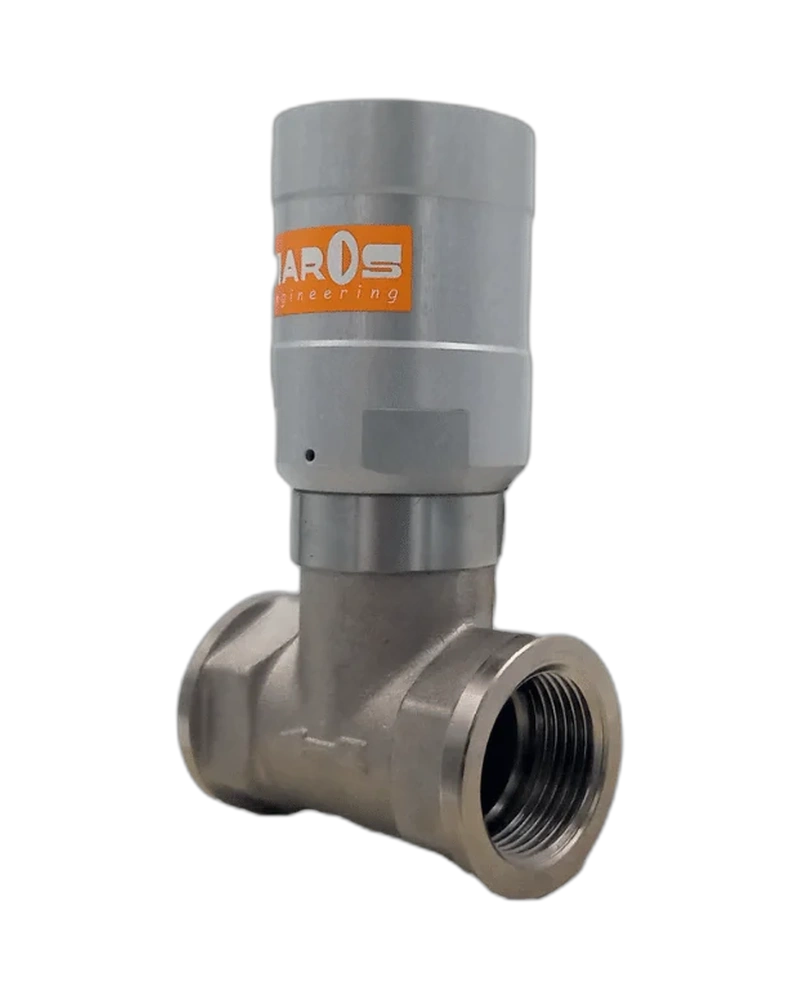

Compact streamlined 2 way valve - FLUXA DC - 51114- 1"1/4

Compact streamlined 2 way valve - FLUXA DC - 51114- 1"1/4 is a MAROS Engineering solution for industrial automation and fluid or vacuum control. MAROS code: 51114; Selected size: 4. The configuration is presented with the manufacturer-published technical characteristics relevant to this product entry.

Product Overview

Type: compact streamlined 2-way valve with brass body. Size: 1/2"–2" (PN16). Pipe threads: F/F gas ISO228. Actuator types: Normally Closed NC, Normally Open NO and Double Acting DA. Flow: unidirectional 1→2. The product configuration is intended for applications where the stated valve or actuator design, connection arrangement, operating range and construction materials are required.

Configuration

MAROS code: 51114; Selected size: 4. The selected nominal size and manufacturer code are retained exactly from the product record. Where MAROS publishes multiple versions, the applicable actuation, connection, pressure, temperature, sealing and material choices are included in the technical information below.

Technical Specifications

Type: compact streamlined 2-way valve with brass body. Size: 1/2"–2" (PN16). Pipe threads: F/F gas ISO228. Actuator types: Normally Closed NC, Normally Open NO and Double Acting DA. Flow: unidirectional 1→2. Ambient temperature: -20°/+60°C. Pilot pressure: min. 4.0 bar–max. 8.0 bar. Valve body: brass. Cylinder spacer: no. Seal holder: brass. Piston: aluminium. Cylinder: anodized aluminium. Piston rod: stainless steel AISI 304. Rod wiper: yes, except 1/2". Rod guide: no. Internal O-ring: FKM. Shutter seal: FKM. ATEX, PTFE/EPDM shutter seals and NC valve-status indication are available on request. Maximum temperature: +100°C. MAROS highlights compact installation and multi-unit mounting.

Construction and Materials

Type: compact streamlined 2-way valve with brass body. Size: 1/2"–2" (PN16). Pipe threads: F/F gas ISO228. Actuator types: Normally Closed NC, Normally Open NO and Double Acting DA. Flow: unidirectional 1→2. Ambient temperature: -20°/+60°C. Pilot pressure: min. 4.0 bar–max. 8.0 bar. Valve body: brass. Cylinder spacer: no. Seal holder: brass. Piston: aluminium. Cylinder: anodized aluminium. Piston rod: stainless steel AISI 304. Rod wiper: yes, except 1/2". Rod guide: no. Internal O-ring: FKM. Shutter seal: FKM. ATEX, PTFE/EPDM shutter seals and NC valve-status indication are available on request. Maximum temperature: +100°C. MAROS highlights compact installation and multi-unit mounting.

Applications

Compact streamlined 2 way valve - FLUXA DC - 51114- 1"1/4 Compact streamlined 2 way valve - FLUXA DC - 51114- 1"1/4 is an for industrial automation and pneumatic fluid or vacuum control. These details are important when matching the valve or actuator to the working medium, pneumatic circuit, vacuum system, temperature range and available installation space. Applications MAROS Engineering pneumatic valves are used across industrial automation applications including automated handling, vacuum gripping and release, palletizing, pneumatic conveying, packaging, food processing, chemical and cosmetic equipment, thermotechnical systems, plastic and rubber processing, thermoforming and other fluid-control installations.

Available Options

• MAROS Engineering FLUXA family
• nominal size 4
• Official manufacturer construction and technical configuration
• Published actuation and connection characteristics
• Published pressure and temperature limits where specified
• Published materials, seals and available options where applicable
