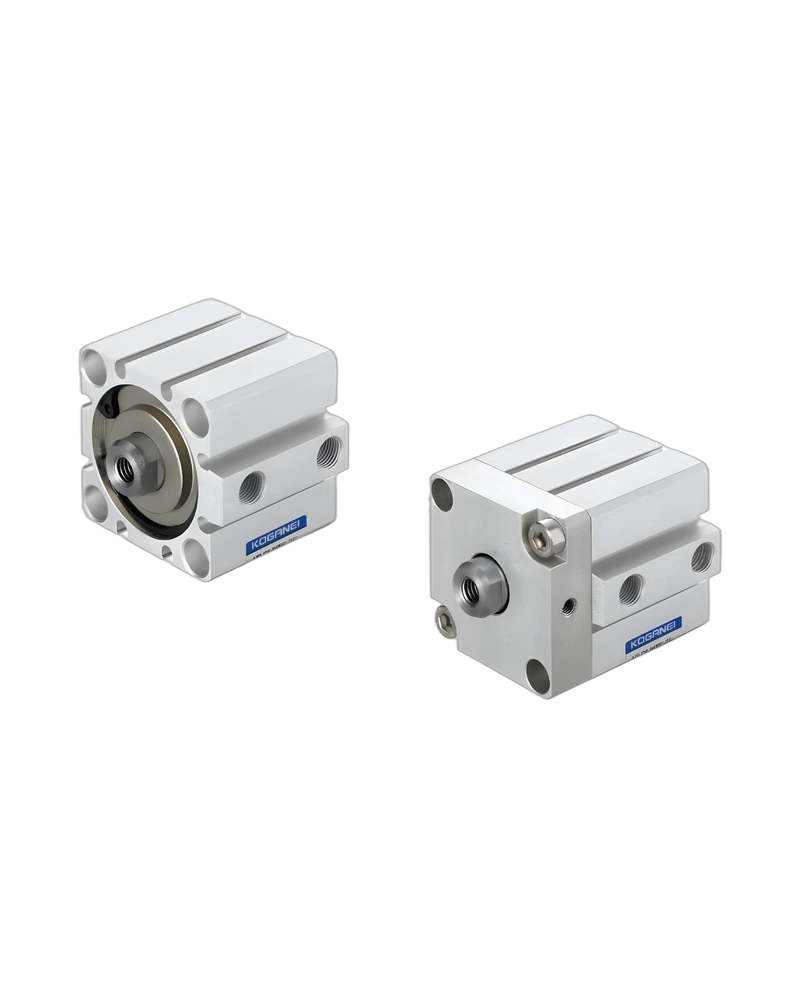

CBDA50X25-7 is a KOGANEI cda for automated equipment applications. Its model designation identifies the selected version and should be retained for purchasing, installation and replacement so the same functional and connection characteristics are maintained.
The CBDA50X25-7 is intended for linear actuator mechanisms. The principal documented characteristics are Bore size: 50 mm; Stroke: 25 mm; Operating pressure range: 0.15-0.9 MPa [22-131 psi]; Proof pressure: 1.35 MPa [196 psi]; Operating temperature range: 0-60 °C [32-140 °F]. These characteristics provide the practical starting point for matching the component to the machine architecture, required motion or switching function and available installation space.
The combination of the product construction, available mounting or control characteristics and the selected model code can simplify integration into automated equipment. The exact connection, electrical and mechanical requirements should be checked against the installation before commissioning.
This type of component is useful where repeatable pneumatic motion, switching or automated handling is required. Application selection should consider the required cycle, load, stroke or switching function, available space and the operating conditions of the machine.
The technical characteristics below are the main selection points identified for this product. They should be evaluated together because the correct model depends on the complete mechanical, pneumatic and electrical requirements of the equipment.
| Bore size | 50 mm |
|---|---|
| Stroke | 25 mm |
| Operating pressure range | 0.15-0.9 MPa [22-131 psi] |
| Proof pressure | 1.35 MPa [196 psi] |
| Operating temperature range | 0-60 °C [32-140 °F] |
| Operating speed range | 50-500 mm/s [2.0-19.7 in./sec.] |
| Lubrication | Not required |
| Port size | M3×0.5 |
| Material | Steel |
| Mounting | ensor Switch |
Before installation, verify mounting dimensions, connection requirements, electrical specifications where applicable, pneumatic conditions and available clearance. During commissioning, confirm that the selected component operates correctly within the machine sequence and that associated fittings, tubing, wiring and sensing components are compatible with the chosen model.
For procurement and replacement, retain the complete model designation rather than selecting only by the broad product category. This is particularly important when suffixes identify electrical, sensing, mounting or other configuration details. Keeping the complete designation in maintenance records helps prevent substitution with an incompatible variant.
| Model | CBDA50X25-7 |
|---|---|
| Bore size | 50 mm |
| Stroke | 25 mm |
| Operating pressure range | 0.15-0.9 MPa [22-131 psi] |
| Proof pressure | 1.35 MPa [196 psi] |
| Operating temperature range | 0-60 °C [32-140 °F] |
| Operating speed range | 50-500 mm/s [2.0-19.7 in./sec.] |
| Lubrication | Not required |
| Port size | M3×0.5 |
| Material | Steel |
| Mounting | ensor Switch |
| Product family | CDA |
