Product Overview

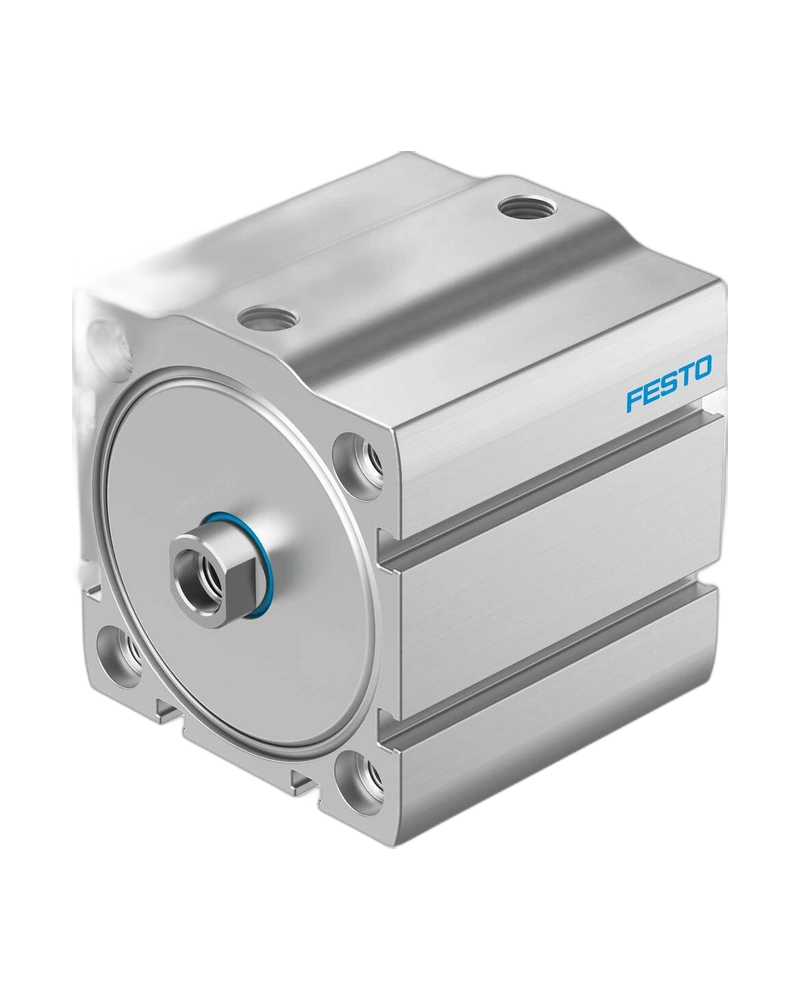

Festo ADN-S-12-10-I-P is a pneumatic cylinder developed for compact, repeatable operation in automated equipment. Its configuration combines the dimensional, operating and connection characteristics listed for this model, allowing the component to be selected around the available installation space and required machine function.

Design and Dimensions

Piston diameter: 12 mm; Stroke: 10 mm; Additional weight per 10 mm stroke: 15 g; Piston rod end: Internal thread.

The dimensional and construction details above define the physical format of ADN-S-12-10-I-P and help distinguish this configuration from other sizes, strokes or mechanical variants.

Operation and Configuration

Mode of operation: Double-acting; Operating pressure: 0.1 MPa...1 MPa; Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]; Pneumatic connection: M5; Cushioning: Elastic cushioning rings/pads at both ends; Mounting position: Any; Position sensing: Via proximity switch.

These characteristics determine how the component is connected, actuated, sensed and installed within an automation system. Configuration-specific options should be selected together with the complete model designation.

Performance and Operating Conditions

Operating pressure: 0.1 MPa...1 MPa; Ambient temperature: 0 °C...80 °C; Theoretical force at 6 bar, retracting: 51 N; Theoretical force at 6 bar, advancing: 68 N; Impact energy in the end positions: 0.06 J.

The listed operating limits and performance values provide the basis for sizing and application selection. Values are presented in the units associated with the product data.

Materials and Environmental Characteristics

Additional weight per 10 mm stroke: 15 g; Housing material: Wrought aluminum alloy, anodized; Cover material: Wrought aluminum alloy, anodized; Piston rod material: high-alloy stainless steel; LABS / PWIS conformity: VDMA24364-B2-L; Corrosion resistance class CRC: 1 - Low corrosion stress; Cleanroom suitability: Class 5 according to ISO 14644-1; Estimated product weight: 80 g.

Material, environmental and compliance characteristics help determine suitability for the intended machine environment and installation conditions.

Application and Integration

ADN-S-12-10-I-P can be integrated into automated handling, positioning, machine building and pneumatic motion systems. The most important selection points are the physical size, operating mode, connection arrangement, environmental limits and any sensing or mounting requirements listed for the product.

Key Product Features

• Piston diameter: 12 mm
• Stroke: 10 mm
• Mode of operation: Double-acting
• Operating pressure: 0.1 MPa...1 MPa
• Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
• Pneumatic connection: M5
• Cushioning: Elastic cushioning rings/pads at both ends
• Mounting position: Any
• Ambient temperature: 0 °C...80 °C
• Theoretical force at 6 bar, retracting: 51 N
• Theoretical force at 6 bar, advancing: 68 N
• Additional weight per 10 mm stroke: 15 g
• Housing material: Wrought aluminum alloy, anodized
• Cover material: Wrought aluminum alloy, anodized
