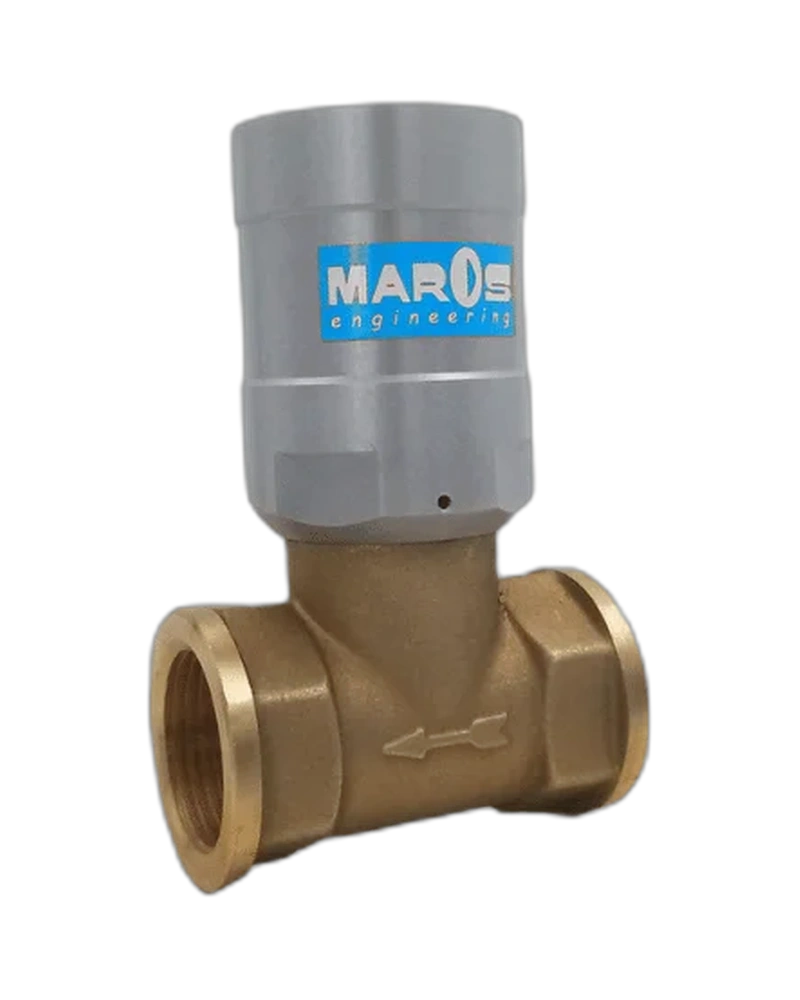

Compact 2-way flow-started valve - FLUXA OI - 52100OI - 1"

Compact 2-way flow-started valve - FLUXA OI - 52100OI - 1" is a MAROS Engineering solution for industrial automation and fluid or vacuum control. MAROS code: 52100OI; Selected size: 1". The configuration is presented with the manufacturer-published technical characteristics relevant to this product entry.

Product Overview

Type: compact streamlined 2-way vacuum valve. Sizes: 1/2"–2" (PN16). Pipe threads: F/F gas ISO228. Actuator types: Normally Closed (NC), Normally Open (NO), Double Acting (DA). Ambient temperature: -20°/+60°C. The product configuration is intended for applications where the stated valve or actuator design, connection arrangement, operating range and construction materials are required.

Configuration

MAROS code: 52100OI; Selected size: 1". The selected nominal size and manufacturer code are retained exactly from the product record. Where MAROS publishes multiple versions, the applicable actuation, connection, pressure, temperature, sealing and material choices are included in the technical information below.

Technical Specifications

Type: compact streamlined 2-way vacuum valve. Sizes: 1/2"–2" (PN16). Pipe threads: F/F gas ISO228. Actuator types: Normally Closed (NC), Normally Open (NO), Double Acting (DA). Ambient temperature: -20°/+60°C. Pilot pressure: min. 4.5 bar–max. 8.0 bar. Valve body: brass. Seal holder: brass. Piston: aluminium. Cylinder: anodized aluminium. Piston rod: stainless steel AISI 304. Rod wiper: yes, except 1/2". Internal O-rings: FKM. Shutter seal: PTFE for 1/2"–3/4"; FKM for 1"–2". ATEX and NC valve-status indicator are available on request. The valve is intended for vacuum pumps, rapid gripping/release, handling and vacuum packaging.

Construction and Materials

Type: compact streamlined 2-way vacuum valve. Sizes: 1/2"–2" (PN16). Pipe threads: F/F gas ISO228. Actuator types: Normally Closed (NC), Normally Open (NO), Double Acting (DA). Ambient temperature: -20°/+60°C. Pilot pressure: min. 4.5 bar–max. 8.0 bar. Valve body: brass. Seal holder: brass. Piston: aluminium. Cylinder: anodized aluminium. Piston rod: stainless steel AISI 304. Rod wiper: yes, except 1/2". Internal O-rings: FKM. Shutter seal: PTFE for 1/2"–3/4"; FKM for 1"–2". ATEX and NC valve-status indicator are available on request. The valve is intended for vacuum pumps, rapid gripping/release, handling and vacuum packaging.

Applications

Compact 2-way flow-started valve - FLUXA OI - 52100OI - 1" Compact 2-way flow-started valve - FLUXA OI - 52100OI - 1" is an for industrial automation and pneumatic fluid or vacuum control. Type: compact streamlined 2-way vacuum valve. The valve is intended for vacuum pumps, rapid gripping/release, handling and vacuum packaging.

Available Options

• MAROS Engineering FLUXA OI family
• MAROS configuration code 52100OI; nominal size 1"
• Official manufacturer construction and technical configuration
• Published actuation and connection characteristics
• Published pressure and temperature limits where specified
• Published materials, seals and available options where applicable
