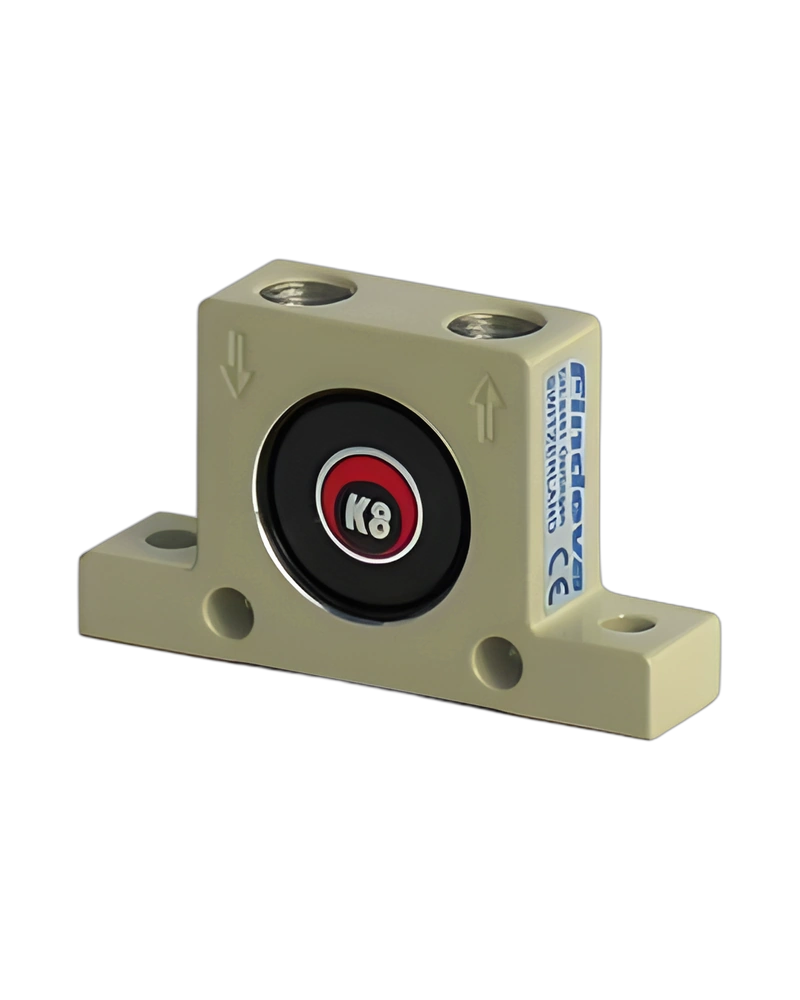

Findeva K-8 is a compact pneumatic ball vibrator for material-flow and vibration applications. Its simple ball-vibrator construction provides high-frequency vibration with continuously variable speed and centrifugal force as compressed-air pressure is adjusted.
The K-8 uses an extruded aluminium alloy body, hardened ground steel-alloy races and a hardened lapped ball. Air enters through the pneumatic connection and the ball generates the required centrifugal vibration.
At 2, 4 and 6 bar, the K-8 reaches 25.5, 31.0 and 35.0 ×10³ min⁻¹ and produces 130, 260 and 360 N centrifugal force.
The model has dimensions A 50 mm, width 20 mm, C 86 mm, D 68 mm, E 12 mm, F 7 mm and G 40 mm, with G 1/4" connection and 0.13 kg weight.
| Brand | Findeva |
|---|---|
| Product family | K Ball Vibrator |
| Model | K-8 |
| Rated frequency @ 2 / 4 / 6 bar | 25.5 / 31.0 / 35.0 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 130 / 260 / 360 N |
| Air consumption @ 2 / 4 / 6 bar | 83 / 145 / 195 l/min |
| Dimensions A / Width / C / D / E / F / G | 50 / 20 / 86 / 68 / 12 / 7 / 40 mm |
| Thread | G 1/4" |
| Weight | 0.13 kg |
| Maximum operating temperature | 100°C; HT version up to 150°C on request |
Emptying bunkers and hoppers, screen filters, vibrating tables, preventing adhesion in pipelines and silos, and moving goods or bulk material.
The Ball Vibrators K-8 is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | K Ball Vibrator |
| Model | K-8 |
| Rated frequency @ 2 / 4 / 6 bar | 25.5 / 31.0 / 35.0 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 130 / 260 / 360 N |
| Air consumption @ 2 / 4 / 6 bar | 83 / 145 / 195 l/min |
| Dimensions A / Width / C / D / E / F / G | 50 / 20 / 86 / 68 / 12 / 7 / 40 mm |
| Thread | G 1/4" |
| Weight | 0.13 kg |
| Maximum operating temperature | 100°C; HT version up to 150°C on request |
