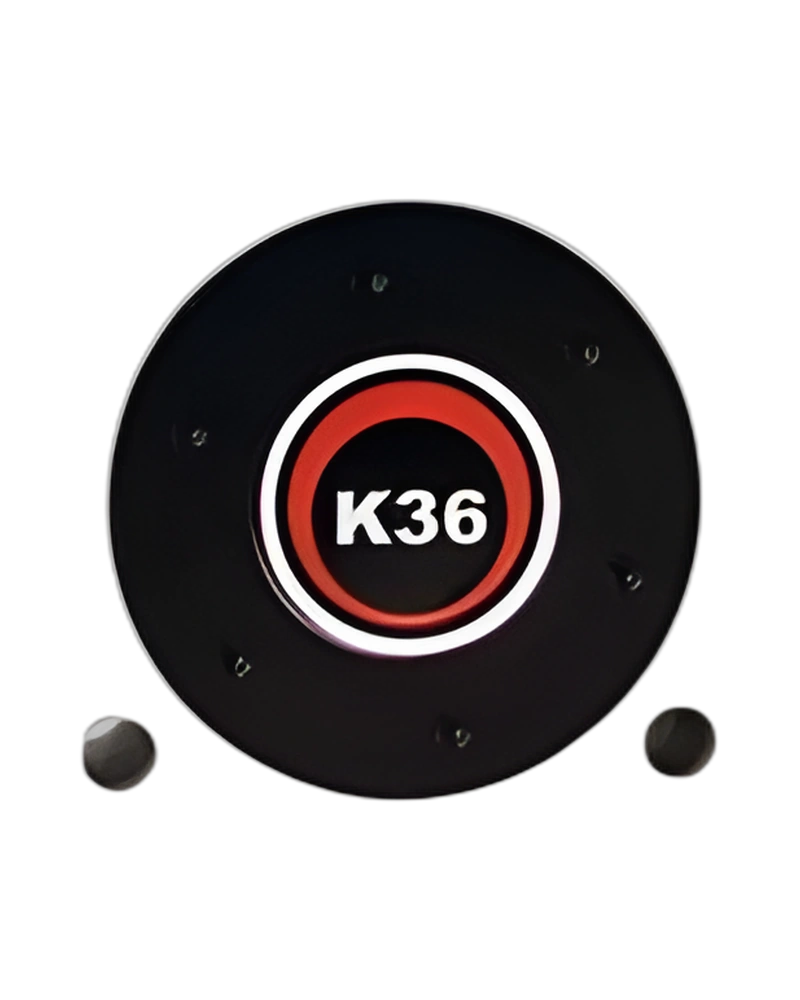

Findeva K-36 is a compact pneumatic ball vibrator for material-flow and vibration applications. Its simple ball-vibrator construction provides high-frequency vibration with continuously variable speed and centrifugal force as compressed-air pressure is adjusted.
The K-36 uses an extruded aluminium alloy body, hardened ground steel-alloy races and a hardened lapped ball. Air enters through the pneumatic connection and the ball generates the required centrifugal vibration.
At 2, 4 and 6 bar, the K-36 reaches 7.3, 9.0 and 10.0 ×10³ min⁻¹ and produces 2060, 3150 and 4050 N centrifugal force.
The model has dimensions A 100 mm, width 50 mm, C 160 mm, D 130 mm, E 20 mm, F 11 mm and G 80 mm, with G 3/8" connection and 1.34 kg weight.
| Brand | Findeva |
|---|---|
| Product family | K Ball Vibrator |
| Model | K-36 |
| Rated frequency @ 2 / 4 / 6 bar | 7.3 / 9.0 / 10.0 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 2060 / 3150 / 4050 N |
| Air consumption @ 2 / 4 / 6 bar | 260 / 475 / 675 l/min |
| Dimensions A / Width / C / D / E / F / G | 100 / 50 / 160 / 130 / 20 / 11 / 80 mm |
| Thread | G 3/8" |
| Weight | 1.34 kg |
| Maximum operating temperature | 100°C; HT version up to 150°C on request |
Emptying bunkers and hoppers, screen filters, vibrating tables, preventing adhesion in pipelines and silos, and moving goods or bulk material.
The Ball Vibrators K-36 is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | K Ball Vibrator |
| Model | K-36 |
| Rated frequency @ 2 / 4 / 6 bar | 7.3 / 9.0 / 10.0 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 2060 / 3150 / 4050 N |
| Air consumption @ 2 / 4 / 6 bar | 260 / 475 / 675 l/min |
| Dimensions A / Width / C / D / E / F / G | 100 / 50 / 160 / 130 / 20 / 11 / 80 mm |
| Thread | G 3/8" |
| Weight | 1.34 kg |
| Maximum operating temperature | 100°C; HT version up to 150°C on request |
