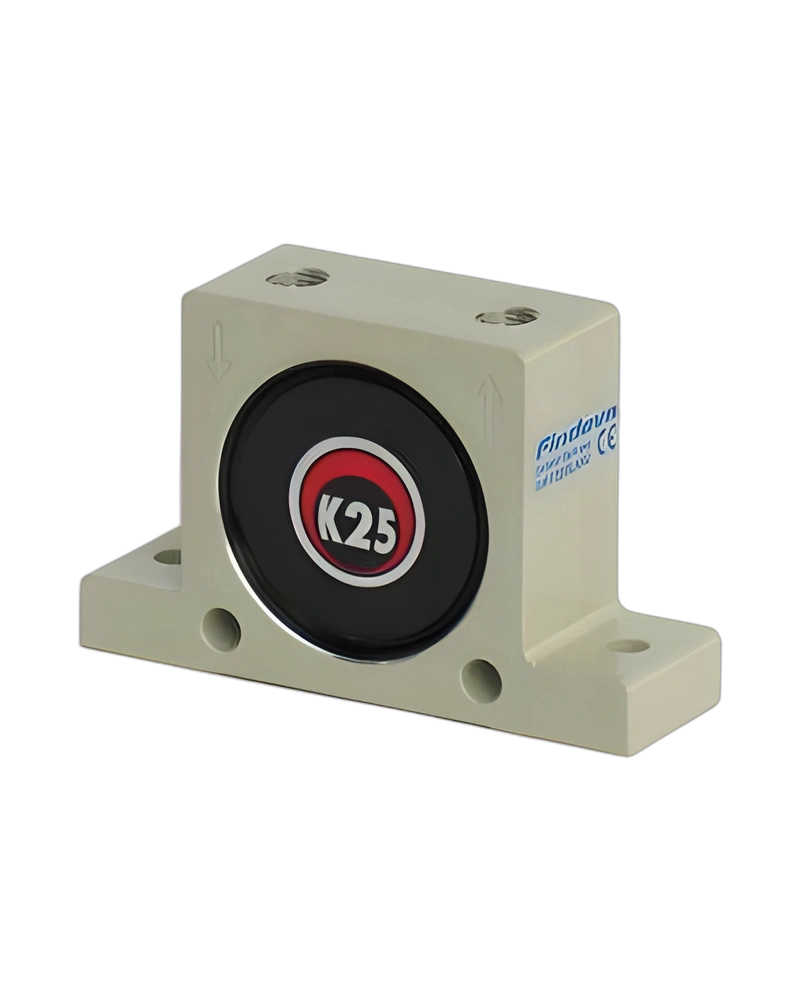

Findeva K-25 is a compact pneumatic ball vibrator for material-flow and vibration applications. Its simple ball-vibrator construction provides high-frequency vibration with continuously variable speed and centrifugal force as compressed-air pressure is adjusted.
The K-25 uses an extruded aluminium alloy body, hardened ground steel-alloy races and a hardened lapped ball. Air enters through the pneumatic connection and the ball generates the required centrifugal vibration.
At 2, 4 and 6 bar, the K-25 reaches 9.2, 12.2 and 14.0 ×10³ min⁻¹ and produces 930, 1570 and 2050 N centrifugal force.
The model has dimensions A 80 mm, width 38 mm, C 128 mm, D 104 mm, E 16 mm, F 9 mm and G 60 mm, with G 1/4" connection and 0.63 kg weight.
| Brand | Findeva |
|---|---|
| Product family | K Ball Vibrator |
| Model | K-25 |
| Rated frequency @ 2 / 4 / 6 bar | 9.2 / 12.2 / 14.0 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 930 / 1570 / 2050 N |
| Air consumption @ 2 / 4 / 6 bar | 160 / 290 / 425 l/min |
| Dimensions A / Width / C / D / E / F / G | 80 / 38 / 128 / 104 / 16 / 9 / 60 mm |
| Thread | G 1/4" |
| Weight | 0.63 kg |
| Maximum operating temperature | 100°C; HT version up to 150°C on request |
Emptying bunkers and hoppers, screen filters, vibrating tables, preventing adhesion in pipelines and silos, and moving goods or bulk material.
The Ball Vibrators K-25 is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | K Ball Vibrator |
| Model | K-25 |
| Rated frequency @ 2 / 4 / 6 bar | 9.2 / 12.2 / 14.0 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 930 / 1570 / 2050 N |
| Air consumption @ 2 / 4 / 6 bar | 160 / 290 / 425 l/min |
| Dimensions A / Width / C / D / E / F / G | 80 / 38 / 128 / 104 / 16 / 9 / 60 mm |
| Thread | G 1/4" |
| Weight | 0.63 kg |
| Maximum operating temperature | 100°C; HT version up to 150°C on request |
