Explore performance details, construction highlights, applications, and technical information in one clear overview.

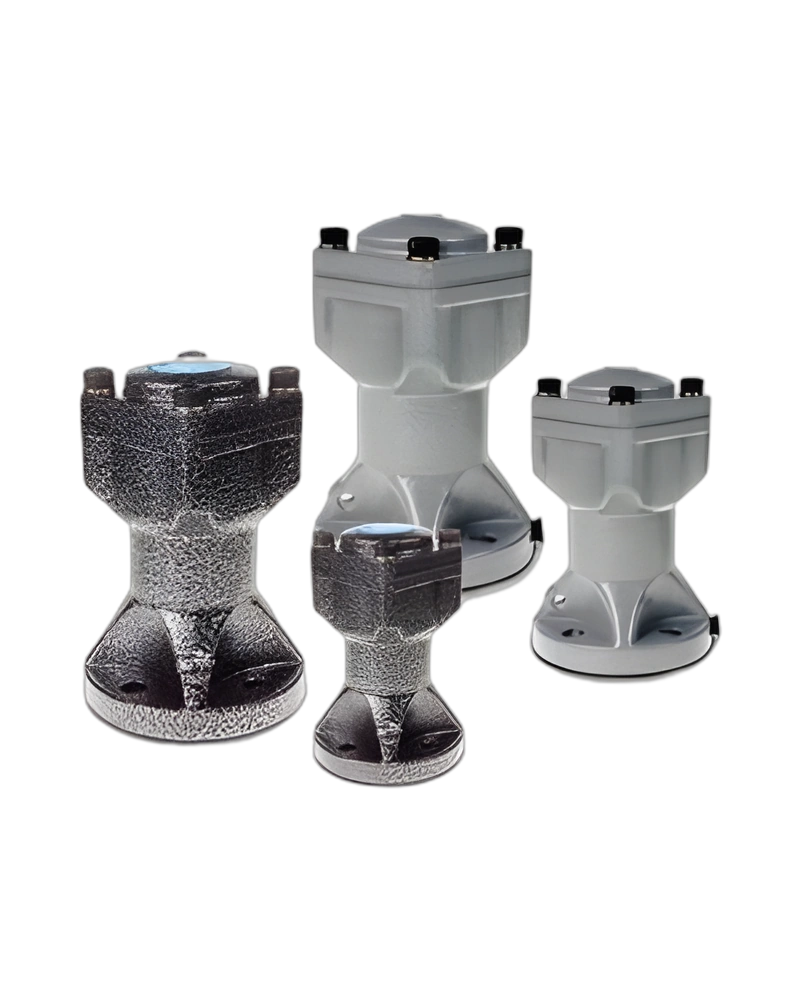

BAH, BVP Air Hammer (Air Knocker), Piston Vibrator - BVP10000-0030 is a FINETEK BAH / BVP Air Hammer (Air Knocker), Piston Vibrator configuration identified in the catalog by BVP10000 and order code 0030. The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual BVP10000 identity rather than a generic description of the FINETEK range.
Pneumatic impact and piston vibration used to release cohesive or adhered bulk solids from vessel and chute surfaces. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.
The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.
The BAH / BVP Air Hammer (Air Knocker), Piston Vibrator family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.
FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.
The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is BAH, BVP Air Hammer (Air Knocker), Piston Vibrator - BVP10000-0030 with order code 0030.
This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.
The BAH, BVP Air Hammer (Air Knocker), Piston Vibrator - BVP10000-0030 configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.
Model: BVP10000-0030. The complete configuration should be matched to the required process conditions, installation arrangement and connected instrumentation.
| Specification | Details |
|---|---|
| Product name | BAH, BVP Air Hammer (Air Knocker), Piston Vibrator - BVP10000-0030 |
| Model / variant | BVP10000 |
| Order code / configuration | 0030 |
| BVP operating temperature | -40 to 100 °C |
| BVP-30C frequency | 1765 / 2308 / 2857 VPM at 2 / 4 / 6 kg/cm² |
| BVP-30C force | 195 / 380 / 560 N |
| BVP-30C air consumption | 230 L/min |
| BVP-30C weight | 0.9 kg |
| BVP-40C frequency | 1333 / 1677 / 1875 VPM |
| BVP-40C force | 275 / 531 / 715 N |
| BVP-40C air consumption | 249 L/min |
| BVP-40C weight | 1.9 kg |
| BVP-60C frequency | 1000 / 1200 / 1340 VPM |
| BVP-60C force | 404 / 780 / 1030 N |
| BVP-60C air consumption | 269 L/min |
| BVP-60C weight | 4.5 kg |
