TAF20 Pneumatic file

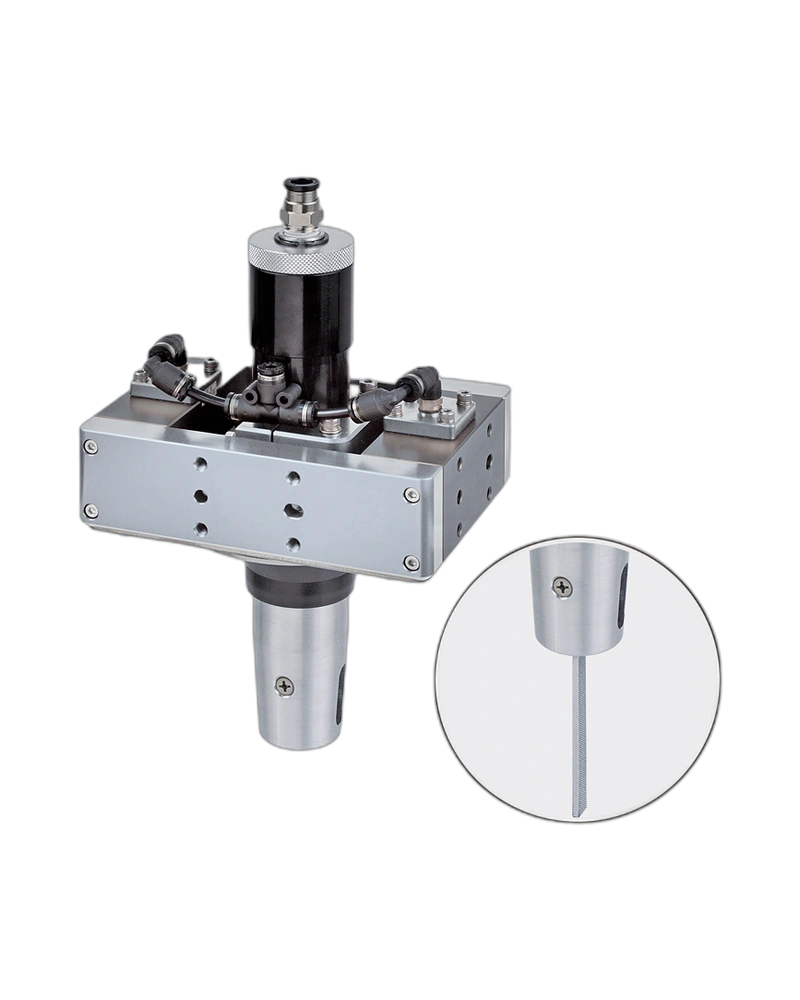

Angular Compliant Deburring Tool for Robot (TAF20) is a Mindman robot deburring tool designed for professional industrial automation and machine-building applications. The product is identified by its exact Mindman model or product family and is supported by official product information and technical documentation. Its published construction, operating characteristics and configuration options provide the engineering information required for selection.

Product Design and Construction

TAF20 Pneumatic file follows the construction approach of its specific Mindman product family. The design supports reliable operation in automated machinery while allowing integration with compatible mounting hardware, sensors, fittings, controls or tooling. Model-specific characteristics are retained rather than substituted with unrelated specifications.

Technical Specifications

Compliant angle: ±5.5° angular. Compliant force: 6–15 N. Compliant pressure: 0.2–0.5 MPa. Spindle pressure: 0.6 MPa. Air source: >0.6 MPa; dry, filtered ≤5 μm. Pneumatic file air consumption: 170 LPM. Recommended oil: Turbine oil ISO-VG32. Oscillating speed: 5000 BPM. Frequency/stroke: 10 mm. Collet: 6 mm flat file. Ambient temperature: +5 to +35°C. Ambient humidity: <95%. Weight: 2 kg.

Performance Characteristics

Angular compliance Pneumatic control for ultra-small gaps Precise surface finishing Compatible with file-type tools. The published pressure, speed, temperature, size, travel, force, interface and other limits should be considered during machine design. Where the official information provides ranges or selectable configurations, those published ranges are retained.

Installation and Integration

The component is intended for installation using the mounting and connection arrangements applicable to the exact model. Compatible accessories should be selected from the Mindman documentation for the selected configuration. Proper sizing of the mechanical interface, pressure or electrical connection, operating medium and sensing arrangement supports dependable operation.

Applications

Angular Compliant Deburring Tool for Robot (TAF20) is suited to engineered applications where its Mindman characteristics match the machine requirement. Depending on the product family, applications include pneumatic motion, hydraulic clamping, linear positioning, conveyor and pallet handling, robotic tooling, welding automation, machining fixtures, material handling and automated production equipment.

Compatibility and Options

Mindman provides product-specific accessories, sensors, mounting components, control options and documentation. When an option is listed in the technical data, it should be selected according to the exact model, size and configuration.

Engineering Selection

Before ordering, verify the exact model, size, bore or tube diameter, stroke or travel, operating medium, pressure, temperature, speed, load, mounting arrangement and sensing or control requirements. For hydraulic products, confirm permitted fluid and pressure. For pneumatic products, confirm air quality, pressure, speed and cushioning requirements. For electrical or robotic products, confirm control and interface requirements.

Reliability in Automation

Mindman components are designed for industrial automation where repeatability, maintainability and dependable integration are important. The model-specific technical information helps engineers compare the component with the machine requirement and select appropriate accessories.

Official Technical Reference

The technical information for this listing is tied to the official Mindman source associated with the exact model or product family. The manufacturer’s current documentation should be used for final dimensional drawings, CAD files, order codes and configuration-dependent details before procurement.
