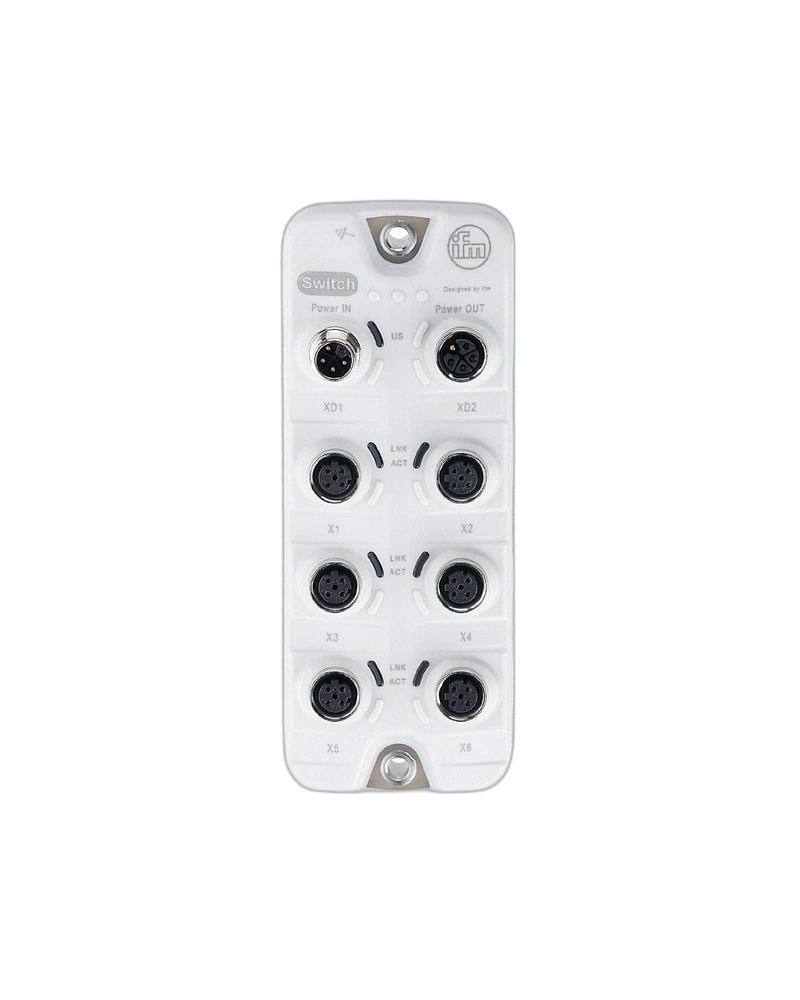

The IFM AL3101 is a six-port PerformanceLine PROFINET switch designed for demanding industrial and hygienic networking environments. It combines industrial PROFINET communication with IP69K protection. The unit is suitable for machines requiring frequent cleaning or washdown. Its M12 connections support reliable field-level networking. It is a strong choice for food and beverage automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The switch supports PROFINET Conformance Class A and industrial Ethernet communication. It provides six ports for connecting controllers and field devices. Store-and-forward processing supports controlled Ethernet traffic handling. Auto-negotiation and auto MDI-X simplify network installation. QoS features support traffic prioritization.
AL3101 is designed for IP69K-level protection under appropriate installation conditions. This makes it suitable for high-pressure washdown environments. The design is particularly useful in food and beverage production. Stainless-steel compatible accessories can be used where required. The protection helps support reliable network communication in demanding areas.
The switch is designed for harsh industrial environments. Its operating temperature range is approximately -25 to 70 °C. The housing and connectors are intended for field-level use. The product can be installed close to automation equipment. This helps reduce complicated network cabling.
Six ports provide multiple connection points for machine devices. The switch can be integrated into decentralized PROFINET networks. It can support PLC communication and distributed field equipment. Its industrial architecture supports modular machine design. The unmanaged-style switching architecture simplifies network deployment.
AL3101 is suitable for hygienic automation, food processing and beverage production. It can connect PROFINET devices in washdown areas. It is also suitable for packaging machinery. The switch provides robust field-level Ethernet connectivity. It supports reliable industrial communication.
Six-port PROFINET switch
PROFINET Class A
IP69K protection
M12 Ethernet connectors
Industrial washdown suitability
QoS support
Auto-negotiation
Auto MDI-X
Store-and-forward
Field installation
Food processing
Beverage machinery
Hygienic automation
PROFINET networks
Packaging systems
Washdown machinery
Factory automation
Machine networking
Industrial Ethernet
| Parameter | Details |
|---|---|
| Product Code | AL3101 |
| Product Type | PROFINET switch |
| Ports | 6 |
| Network | PROFINET |
| Conformance | Class A |
| Protection | IP69K |
| Ethernet Interface | M12 |
| Processing | Store and Forward |
| Auto Negotiation | Yes |
| Auto MDI-X | Yes |
| QoS | IEEE 802.1p / 802.1Q |
| Priority Queues | 4 |
| MAC Table | 2000 addresses |
| Operating Temperature | -25...70 °C |
| Storage Temperature | -25...85 °C |
| Humidity | Up to 90% |
| Installation | Field |
| Application | Hygienic automation |
| Communication | Ethernet |
| Mounting | Backplane |
| Housing | Industrial |
| Connector | M12 |
| Network Function | Switching |
| Brand | IFM |
| Order Number | AL3101 |
