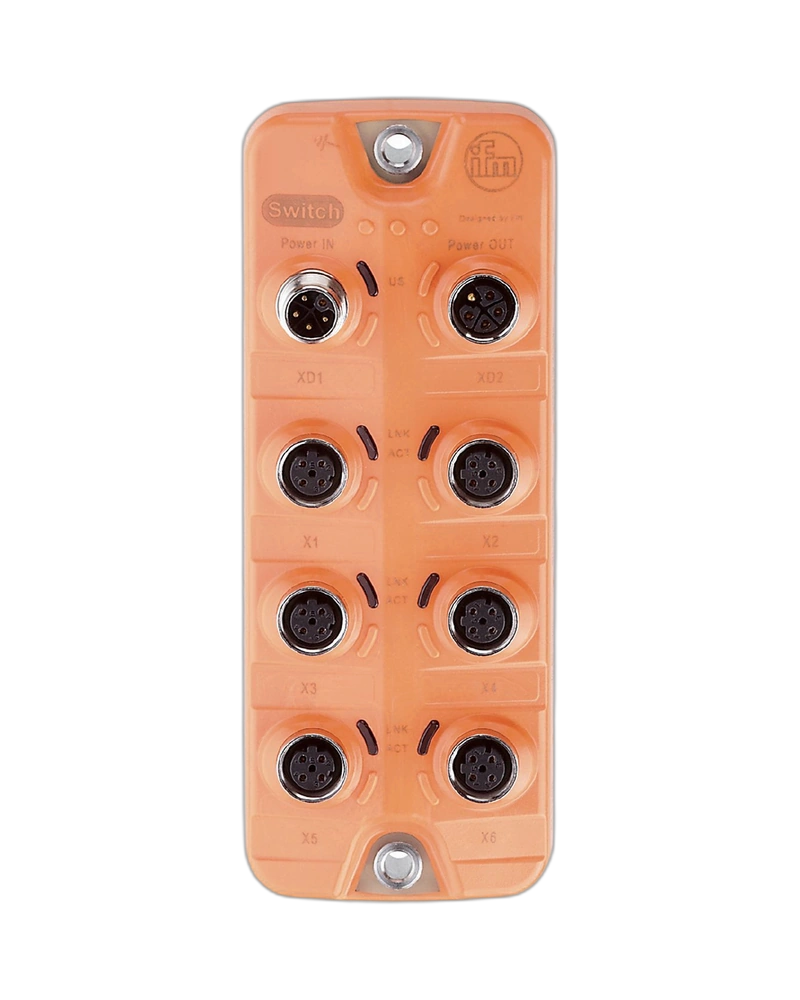

The IFM AL3100 is a PerformanceLine six-port PROFINET switch designed for demanding industrial automation applications. It provides field-level Ethernet communication and supports reliable PROFINET networking. Its IP67 construction allows installation outside traditional control cabinets. The switch is suitable for machine automation and decentralized network architectures. Its industrial design supports robust communication in harsh environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
AL3100 is designed specifically for PROFINET communication. It supports PROFINET Conformance Class A and industrial Ethernet functions. Store-and-forward processing, auto-negotiation and auto MDI-X simplify network communication. QoS features support traffic prioritization. The switch is suitable for structured industrial networks.
Six Ethernet ports allow multiple devices to be connected. M12 connectors provide secure industrial connectivity. The switch can be installed close to PLCs, I/O modules and field devices. This reduces network cable routing. It supports modular machine-network construction.
The IP67-rated design is suitable for demanding industrial field applications. The switch is designed for operating temperatures from approximately -25 to 70 °C. Its construction also supports suitable environments with vibration and industrial contamination. This makes it suitable for factory automation.
The switch includes industrial Ethernet functions such as QoS and MAC address management. Its PROFINET functionality supports automation network integration. It can help maintain structured communication between controllers and field devices. The switch is designed for dependable network operation. Its field-mounted architecture improves machine flexibility.
AL3100 is suitable for production lines, machine tools and factory automation. It can connect PROFINET controllers and field devices. It is suitable for decentralized automation networks. The switch can also support machine-level network expansion. It provides a reliable industrial Ethernet solution.
Six Ethernet ports
PROFINET support
Conformance Class A
IP67 protection
M12 industrial connections
Store-and-forward operation
Auto-negotiation
Auto MDI-X
QoS support
Industrial field installation
PROFINET networks
PLC communication
Machine automation
Factory automation
Distributed I/O
Production lines
Machine tools
Industrial Ethernet
Automation control systems
| Parameter | Details |
|---|---|
| Product Code | AL3100 |
| Product Type | PROFINET switch |
| Switch Type | Industrial Ethernet |
| Ports | 6 |
| Network | PROFINET |
| Conformance | Class A |
| Processing | Store and Forward |
| Auto Polarity | Yes |
| Auto Negotiation | Yes |
| Auto MDI-X | Yes |
| QoS | IEEE 802.1p / 802.1Q |
| Priority Queues | 4 |
| MAC Table | 2000 addresses |
| Protection | IP67 |
| Operating Temperature | -25...70 °C |
| Storage Temperature | -25...85 °C |
| Humidity | Up to 90% |
| Installation | Field |
| Connector | Industrial M12 |
| Communication | Ethernet |
| Application | Automation |
| Mounting | Backplane |
| Housing | Industrial |
| Brand | IFM |
| Order Number | AL3100 |
