IFM AL2384 is a four-channel IO-Link temperature module designed for distributed temperature measurement. It supports four temperature measurement channels and transfers measurement values digitally through IO-Link. The module supports IO-Link communication with diagnostic and identification functions. Its IP67 protection allows field installation in industrial environments. AL2384 is suitable for machine and process applications where several temperature points need to be monitored through a single IO-Link interface.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
AL2384 provides four temperature measurement channels in one compact field module. This allows several measurement points to be integrated into the automation network. The module can reduce the requirement for separate temperature input interfaces. Measurement values can be transferred digitally to the controller. This makes it useful for multi-point thermal monitoring.
The module uses IO-Link COM3 communication at 230.4 kBaud. It supports IO-Link profiles for identification, diagnosis and measurement data. Device parameters can be managed through the IO-Link master. The minimum process cycle time supports responsive measurement transmission. This makes the module suitable for digital temperature monitoring systems.

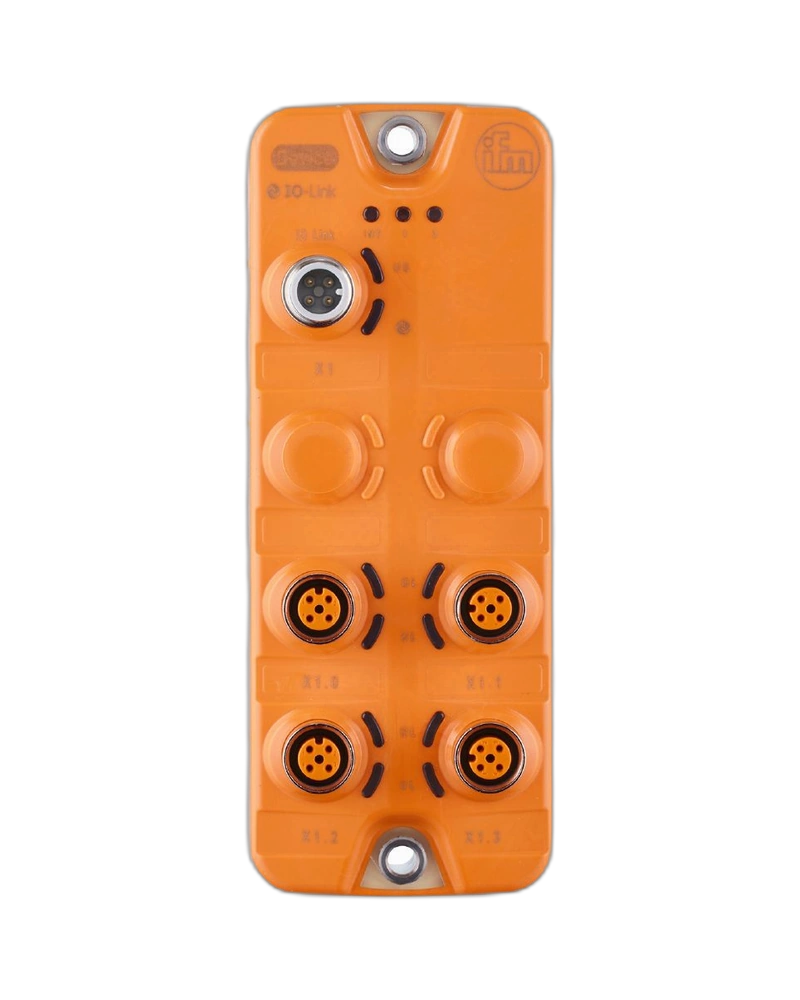

AL2384 is designed for IP67 industrial field installation. Its orange PA housing provides clear module identification. M12-based connections support practical field wiring. LED indicators provide operating, fault and function status. The module can be installed close to temperature sensors to simplify wiring.
4 temperature channels
IO-Link temperature measurement
COM3 communication
230.4 kBaud
IO-Link 1.1/1.1.3 compatible documentation
Temperature process data
Device diagnostics
Device identification
IP67 protection
PA orange housing
Backplane mounting
M12 field connectivity
Machine temperature monitoring
Process temperature measurement
Heating systems
Cooling systems
Food processing
Industrial ovens
Fluid temperature monitoring
Production equipment
Thermal process control
Automated machinery
| Specification | Details |
|---|---|
| Product Code | AL2384 |
| Product Type | IO-Link temperature module |
| Measurement Channels | 4 |
| Function | Temperature measurement |
| Communication | IO-Link |
| Transmission | COM3 |
| Baud Rate | 230.4 kBaud |
| IO-Link Revision | 1.1.3 |
| SDCI Standard | IEC 61131-9 |
| Device ID | 1450 |
| Sensor Profile | Smart Sensor |
| Process Data | Floating-point temperature |
| Diagnostic Function | Yes |
| SIO Mode | No |
| Protection | IP65 / IP67 |
| NEMA | 6P |
| Ambient Temperature | -25 to +60 °C |
| Storage Temperature | -25 to +70 °C |
| Dimensions | 152 × 59.3 × 38 mm |
| Mounting | Backplane |
| Housing | PA orange |
| Sealing | FKM |
| Weight | Approx. 347.051 g |
| Status LEDs | Green/red/yellow |
