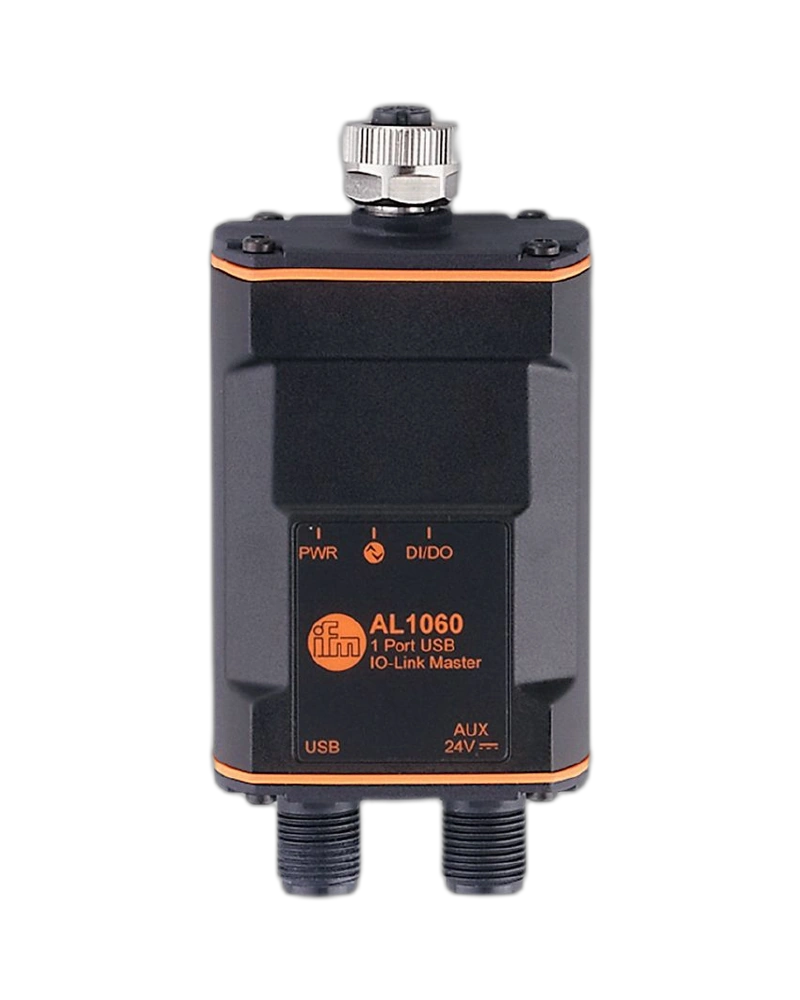

The AL1060 is a single-port IO-Link master designed to connect compatible IO-Link sensors directly to a PC through a USB interface, providing a convenient solution for sensor parameterization, commissioning and process-value access. It can generate the required sensor supply voltage through the USB connection for many compatible sensors, simplifying setup and reducing the need for additional power connections. The robust M12 connection supports reliable operation in industrial environments, while integrated status LEDs provide clear visual information during configuration, commissioning and troubleshooting. The AL1060 is well suited for maintenance, sensor testing, parameter management and efficient IO-Link device setup applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
The AL1060 provides a simple connection between an IO-Link sensor and a PC. It functions as a one-port IO-Link master and USB gateway. This makes it useful for configuring sensors before or during machine commissioning. Process values can also be read directly from connected sensors. The device can reduce commissioning time and configuration errors.
USB Connectivity
The USB interface provides a convenient connection to a laptop or PC. The integrated voltage converter can generate 24 V sensor supply from 5 V USB power. For many sensors, this eliminates the need for a separate power supply. IFM specifies up to 150 mA sensor output depending on the computer. A separate supply can be used when higher current is required.
Industrial Construction
The unit uses M12 connections for IO-Link, USB and optional power supply. These connectors are designed for robust industrial environments. This allows the interface to be used outside a conventional laboratory environment. The compact design makes it convenient for service personnel. It can be used near installed machinery.
Commissioning
The AL1060 simplifies IO-Link sensor parameter setting. Engineers can connect a sensor to a PC and configure its parameters before installation. Process values can also be viewed during commissioning. This can reduce setup time. It is useful for sensor replacement and troubleshooting.
Diagnostics
Integrated status LEDs provide information about the operating condition. They can help identify power or communication problems. The device therefore supports practical field troubleshooting. Its compact interface makes it easy to carry between machines. It is particularly useful for commissioning teams.
1-port IO-Link master
USB interface
24 V sensor supply conversion
Up to 150 mA from USB supply
M12 connectors
Status LEDs
PC connectivity
Sensor parameterization
Process-value reading
Industrial construction
Portable commissioning solution
Optional external supply
Sensor commissioning
IO-Link parameter setting
Machine service
Sensor troubleshooting
Laboratory configuration
Maintenance operations
Field diagnostics
Sensor replacement
Process-value monitoring
Industrial setup
| Parameter | Details |
|---|---|
| Product Code | AL1060 |
| Product Type | IO-Link Interface |
| IO-Link Ports | 1 |
| USB Interface | Yes |
| Function | PC-to-IO-Link gateway |
| IO-Link | Yes |
| Sensor Supply | Generated from USB |
| USB Supply | 5 V |
| Sensor Voltage | 24 V |
| USB Current Capability | Up to 150 mA |
| External Supply | Optional |
| Connector | M12 |
| Status LEDs | Yes |
| Parameterization | Supported |
| Process Values | Supported |
| Diagnostics | Supported |
| Installation | Field/PC |
| Dimensions | 103.8 × 50 × 31 mm |
| Housing | Industrial |
| Operating Temperature | Model-specific |
| Storage Temperature | Model-specific |
| Protection | Model-specific |
| Mounting | Portable/field |
| Application | Commissioning |
| Manufacturer | IFM |
